ML-WM-5X Series

ML-WM-5X Series

Full Cut-off Wall Pack with CCT and Wattage Selectable & Photocell Option

  • certifications
  • certifications
  • certifications

Replaces 150-watt to 400-watt high intensity discharge (HID).  Dark Sky Friendly LED Full Cut-Off Wall Pack Light with 5539/7237/14127 delivered lumens.  Beautiful design with expansive heat sink for long lasting service. 3000K/4000K/5000K, dark bronze, DLC and UL Listed, 5-year limited warranty

View full details

Applications:

  • Warehouses, Commercial buildings, Offices, Factories

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 100W metal-halide light
  • Advanced optic system
  • max. 5539/7249/14169 Lumens
  • Dark bronze aluminum housing
  • Input Power of 40Watts/30Watts/20Watts
  • Input Power of 55Watts/45Watts/25Watts
  • Input Power of 110Watts/80Watts/60Watts
  • 3000K/4000K/5000K White Color Output
  • On/Off Photocontrol Capability built in
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 60W/80W/110W
    25W/45W/55W
    20W/30W/40W
  • LUMENS 14169lms
    7237lms
    5539lms
  • EFFICANCY 143LM/W
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -30 °F to 103 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 250W
  • AVAILABLE CCT 3K/4K/5K
  • IP RATING IP65

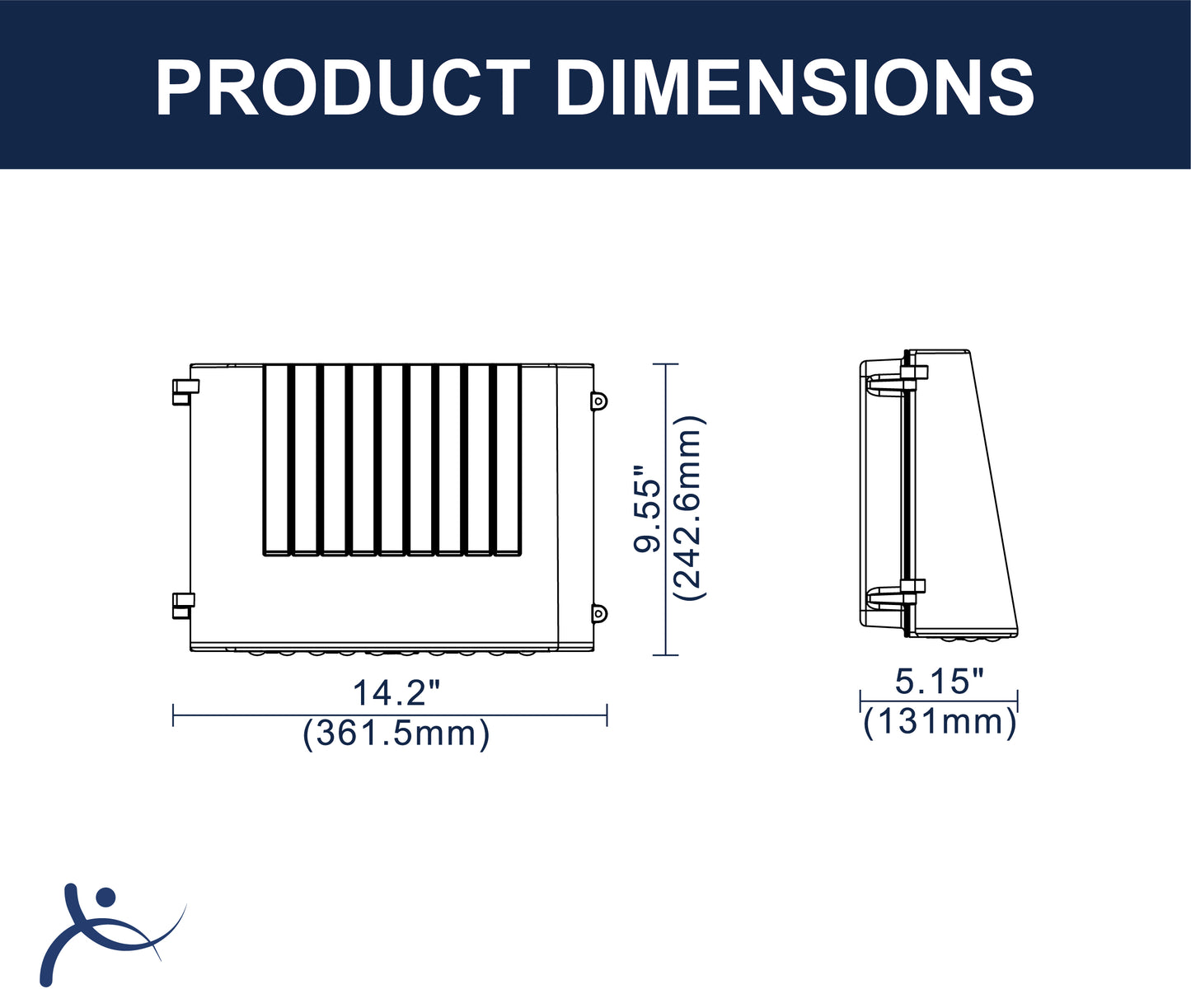

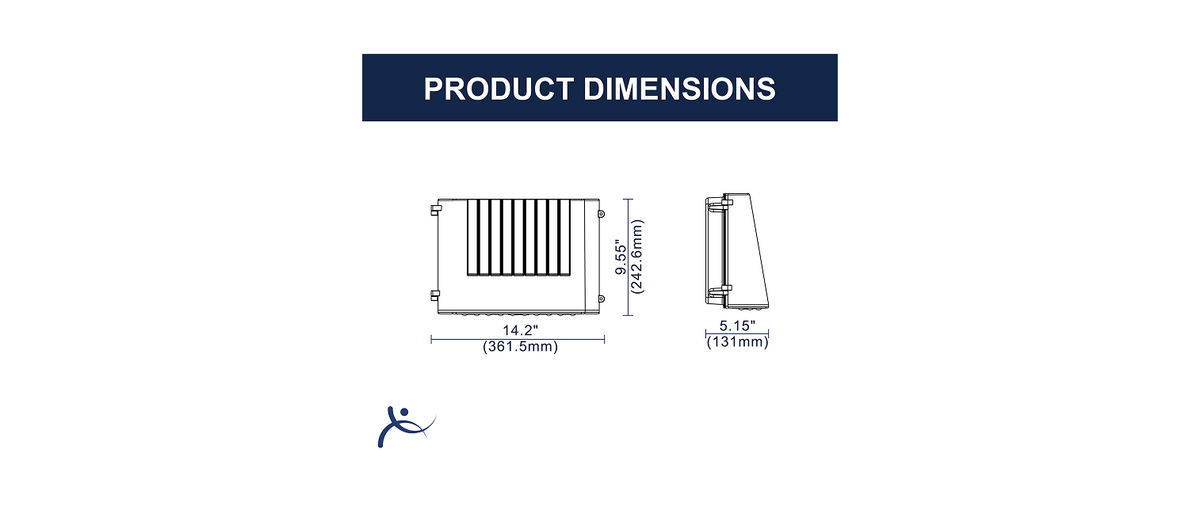

  • DIMENSION 14.2"x9.55"x5.15"
  • MODEL NUMBER ML-WM-5093-40WT-345K-UV
    ML-WM-5093-55WT-345K-UV
    ML-WM-5103-110WT-345K-UV

Download

  • Model No.
  • ML-WM-5093-40WT-345K-UV
  • ML-WM-5093-55WT-345K-UV
  • ML-WM-5103-110WT-345K-UV
  • Wattage
  • 20W/30W/40W
  • 25W/45W/55W
  • 60W/80W/110W
  • CCT
  • 3K/4K/5K
  • 3K/4K/5K
  • 3K/4K/5K
  • Lumens
  • 5539 lms
  • 7237 lms
  • 14127 lms

ML-WM-5093-40WT-345K-UV

ML-WM-5093-55WT-345K-UV

ML-WM-5103-110WT-345K-UV
