ML-WM-2285

ML-WM-2285

  • certifications
  • certifications
  • certifications

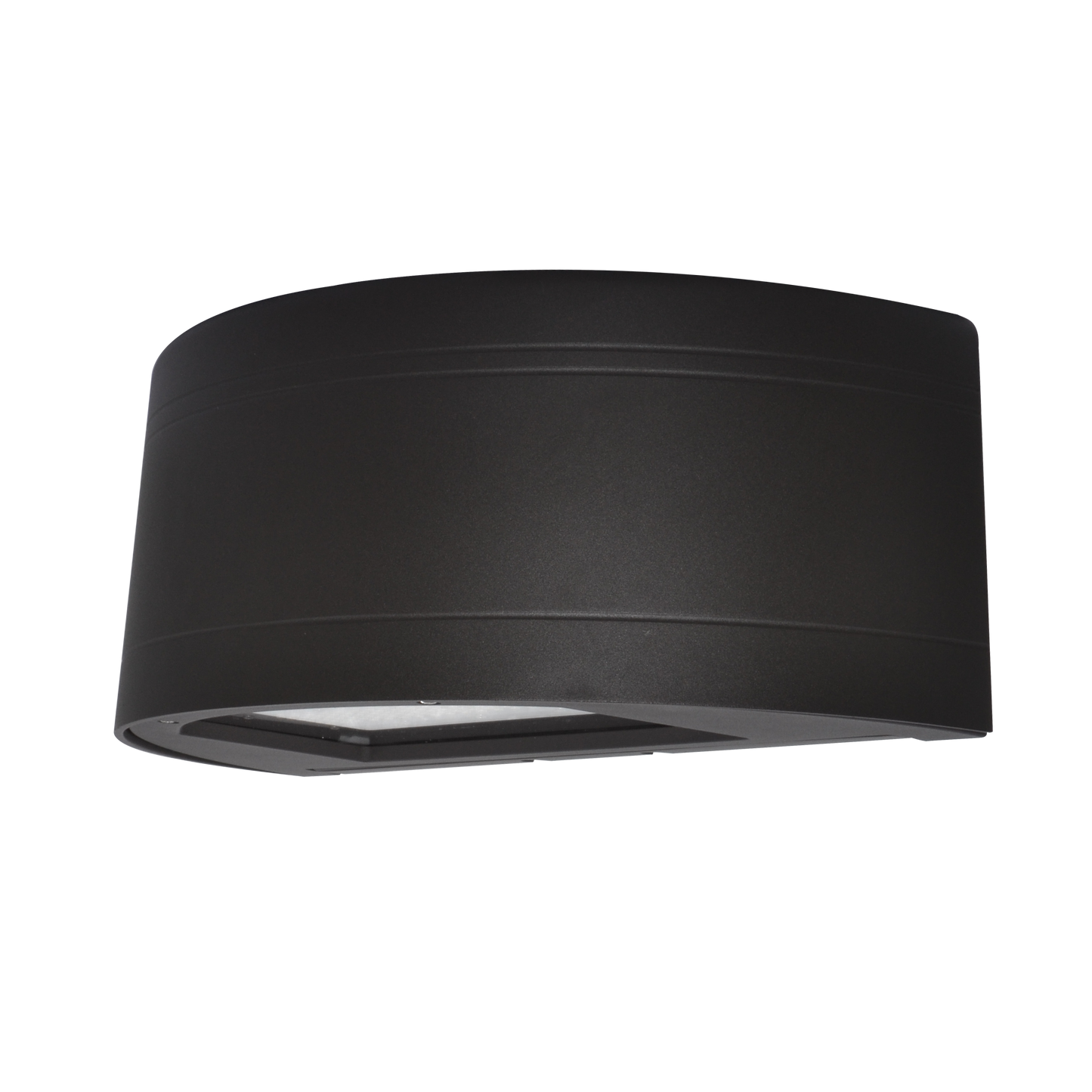

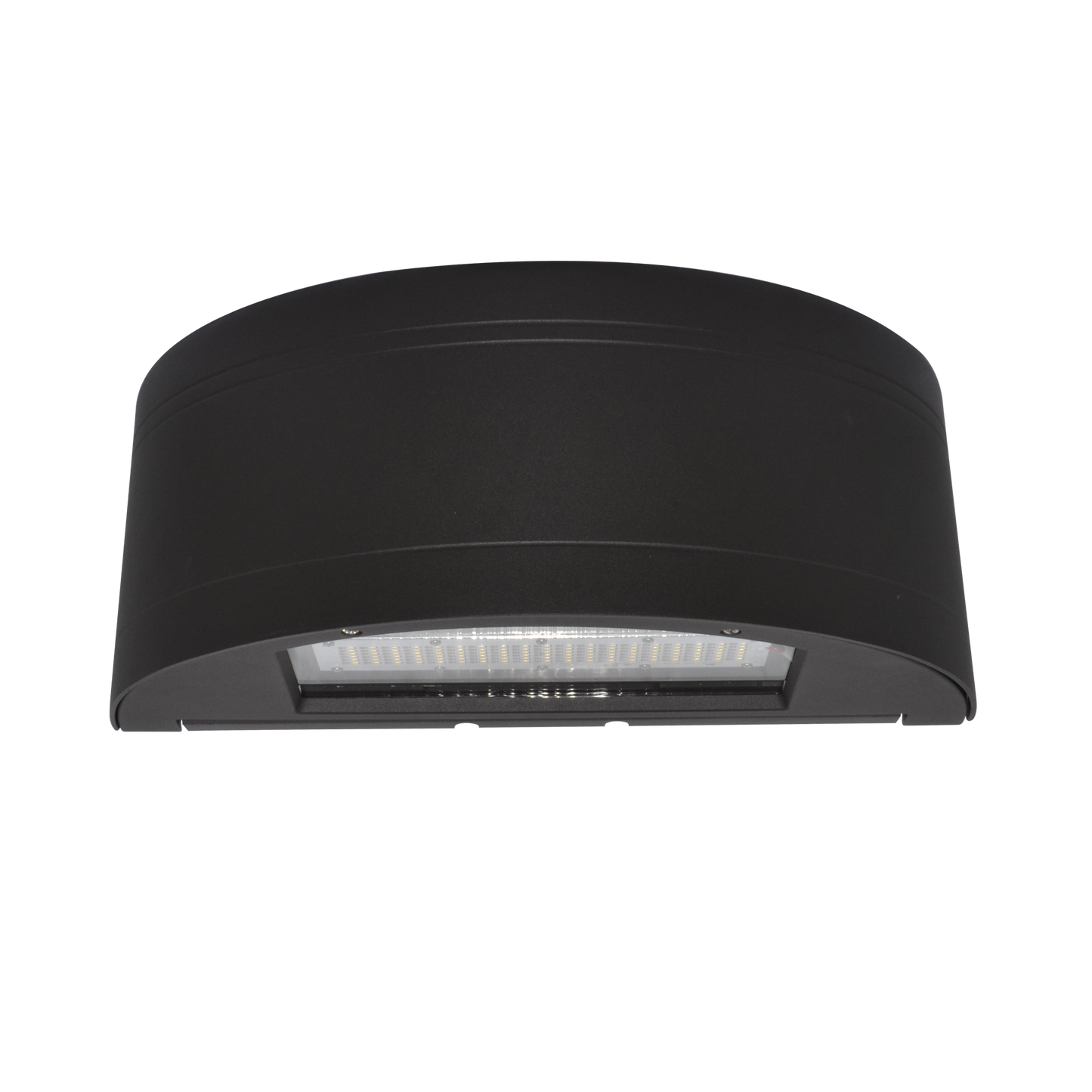

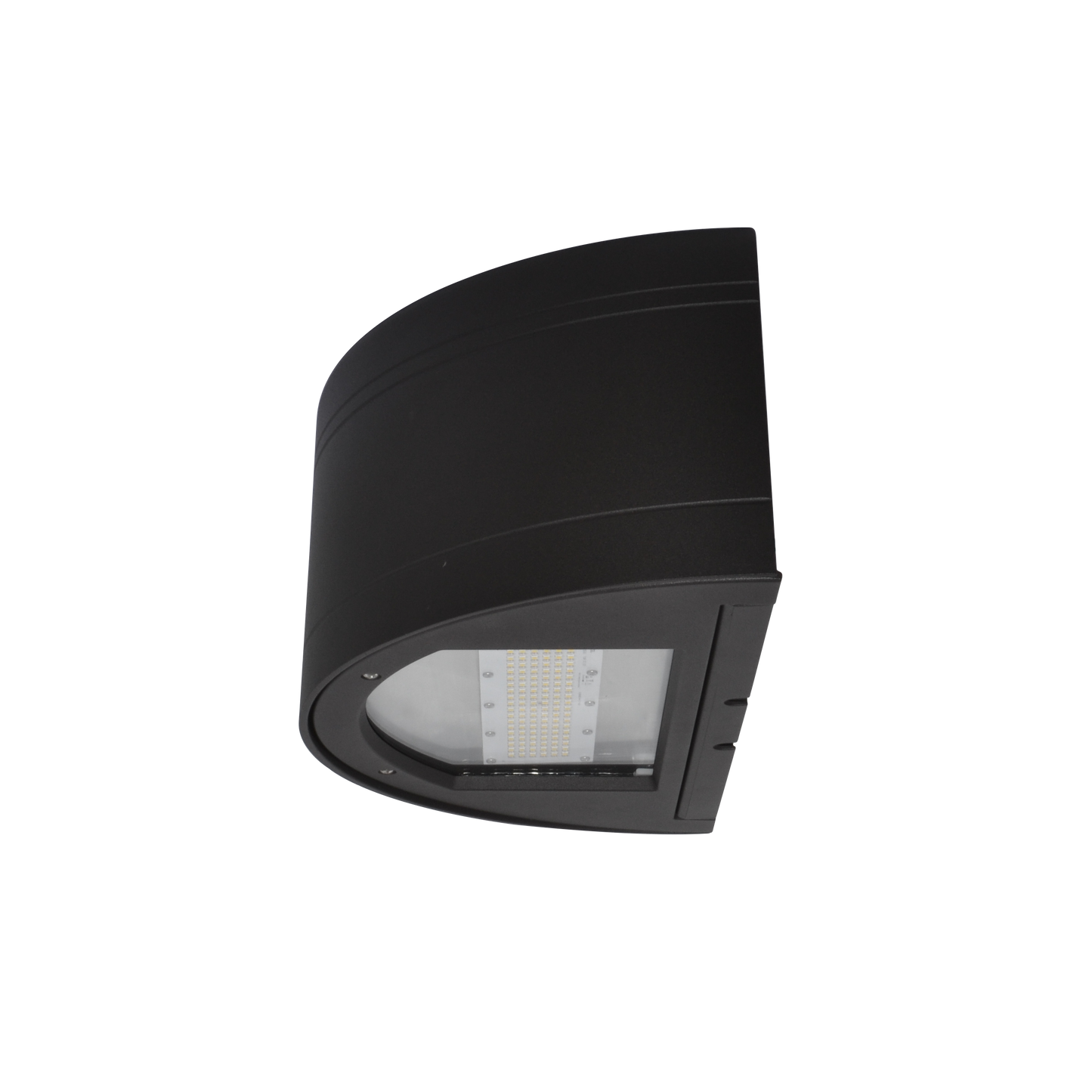

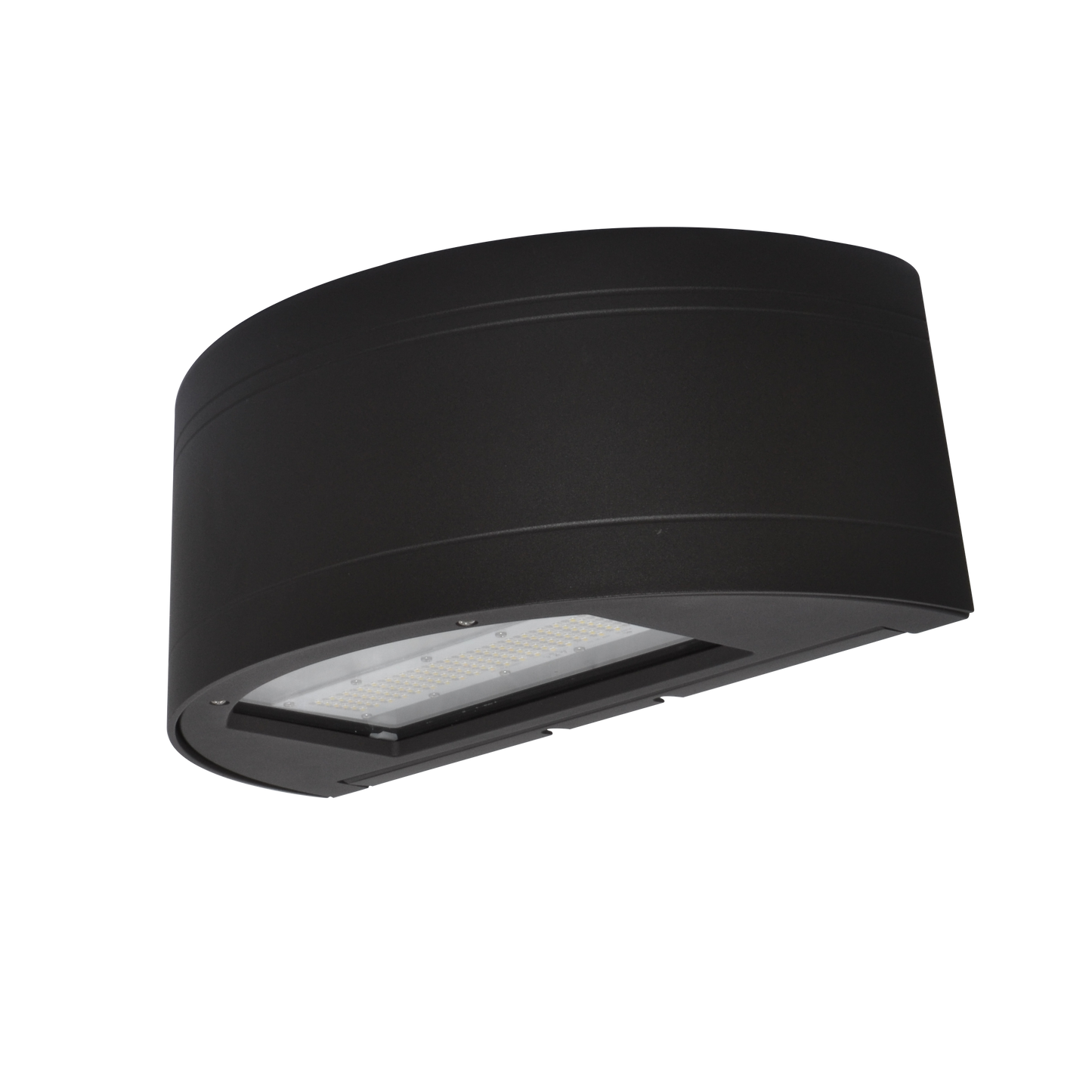

Full cut-off architectural wall pack is aesthetically pleasing yet still provides a powerful effect in any environment.  Half Moon in shape, this lighting gives a forward throw lighting distribution that is created by its special optics.  The frosted prismatic glass lens also lessen the effect of glare, providing a comfortable experience for users.  With a selectable tuner for wattage, this beautifully designed marvel will provide the most efficient led lighting technology to its owners.
View full details

LISTING:
UL and CUL listed for wet locations


FINISH:
UV stabilized power coated finish


LENS:
Frost prismatic tempered glass lens


OPTIONS:
Optional photo control with adder
Finish - Bronze / White

Specifications

  • INPUT VOLTAGE 120-277V
    120-277V
  • INPUT WATTAGE 65W/45W/25W
    65W/45W/25W
  • LUMENS 7933 lm Max
    10258 lm Max
  • EFFICANCY 123 lm/w
    157 lm/w
  • STARTING TEMPERATURE -40 °C
  • DIMMABLE 0-10V
  • CERTIFICATION UL, Wet Locations
  • CRI >70+
  • AVAILABLE CCT 3000K/4000K/5000K
    3000K/4000K/5000K
  • DIMENSION 0-10V
  • MODEL NUMBER ML-WM-2285-65WT-345K-UV
    ML-WM-2285-65WT-345K-UD-UV

Download

  • Model No.
  • ML-WM-2285-65WT-345K-UV
  • ML-WM-2285-65WT-345K-UD-UV
  • Wattage
  • 65W/45W/25W
  • 65W/45W/25W
  • CCT
  • 3000K/4000K/5000K
  • 3000K/4000K/5000K
  • Lumens
  • 7993 Lumens
  • 10258 Lumens

ML-WM-2285-65WT-345K-UV

ML-WM-2285-65WT-345K-UD-UV
