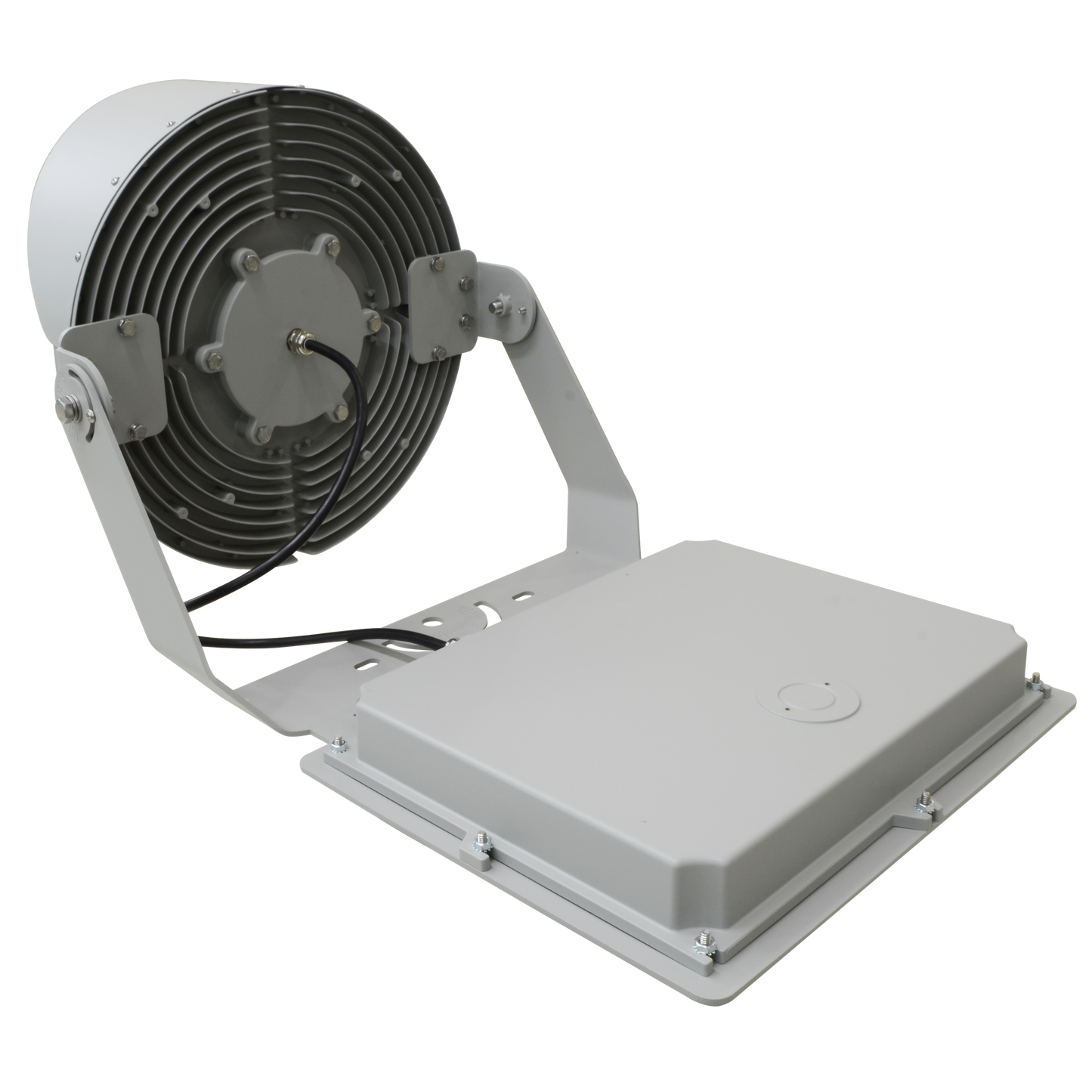

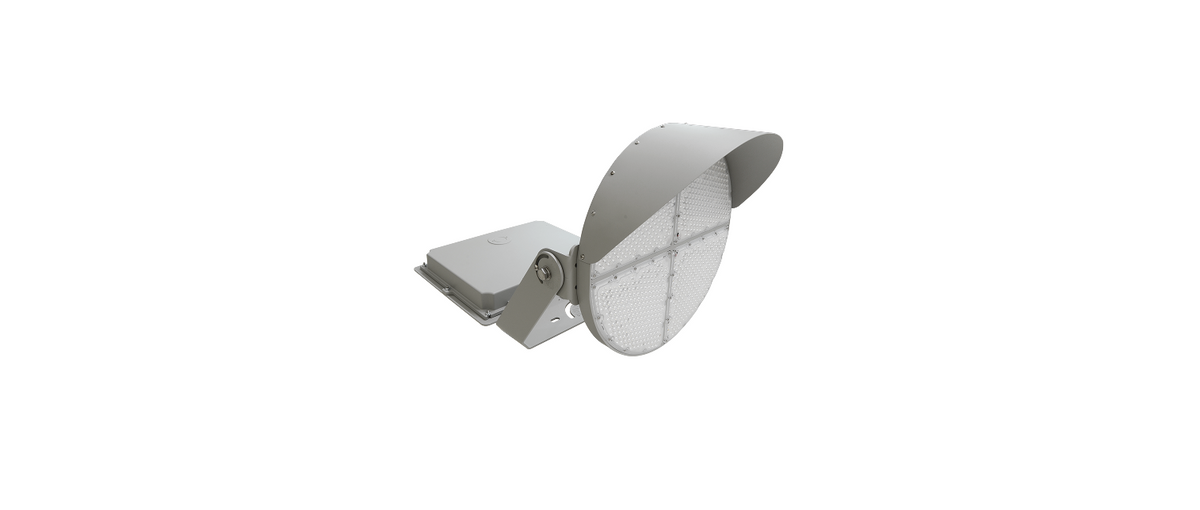

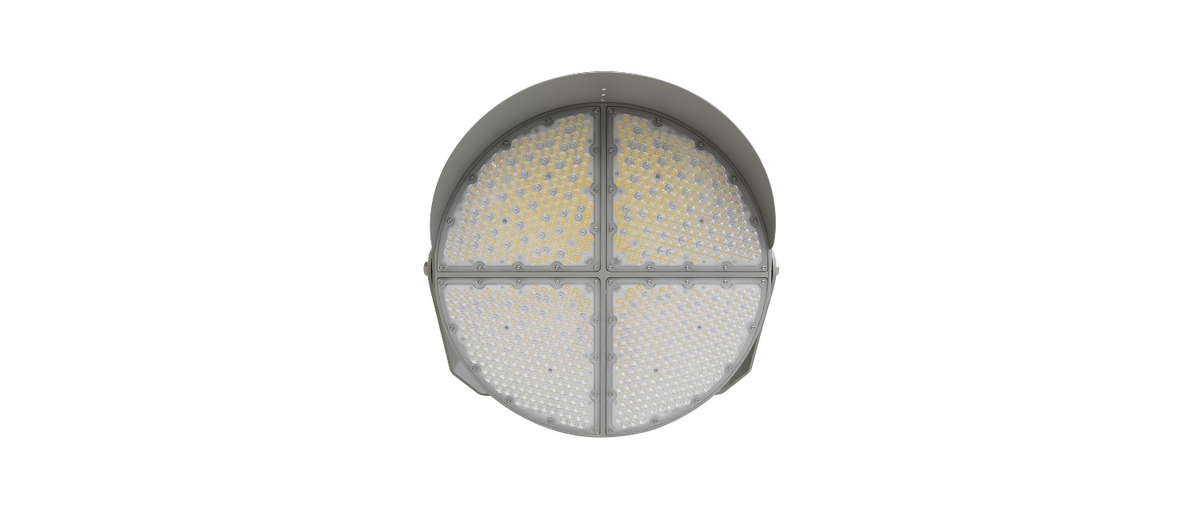

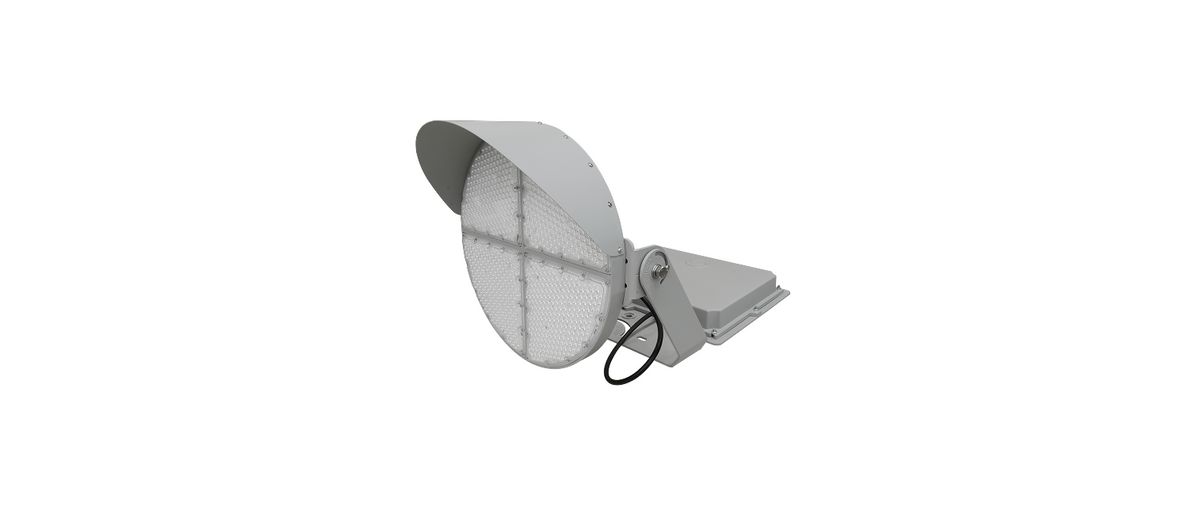

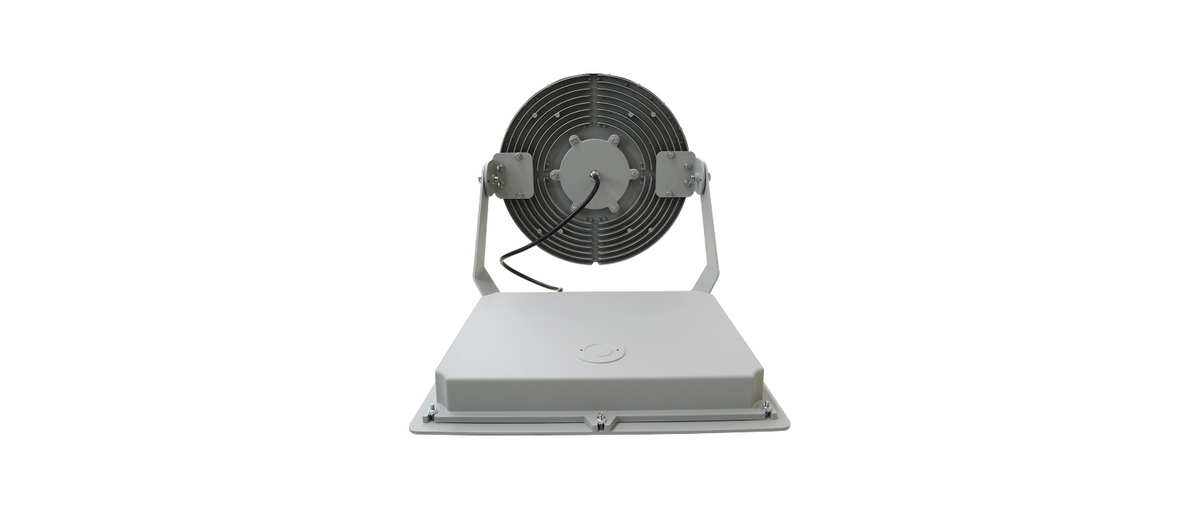

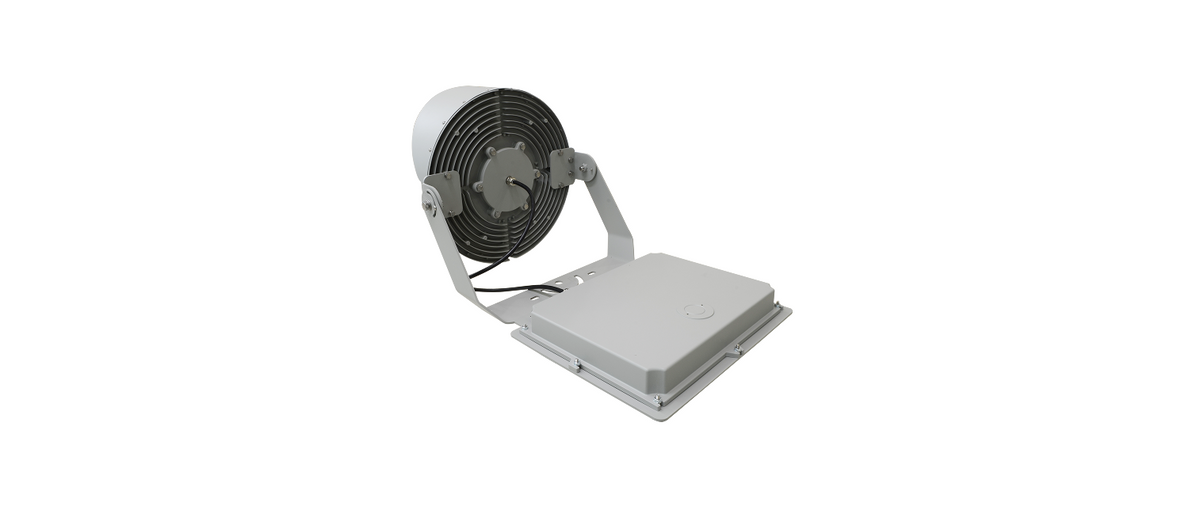

ML-SPL-480X Series

ML-SPL-480X Series

Performance Grade LED Sports Lights

  • certifications
  • certifications
  • certifications

This NEW Designed State of the Art Sports Flood is made with High Strength Die Cast Aluminum with Elite Thermal Dissipation to allow the fixture to be installed in harsh conditions. This ML-SPL-4801 comes standard with 2 mounting options, U bracket and Bolt option, to accommodate all mounting applications. Utilizing 4 different optical distributions (20, 30, 40, and 50 degree), this fixture can accomplish all your Sports Lighting requirements for a Photometric Masterpiece on your project.

View full details

LISTING:
UL and CUL listed for wet locations, IP65, DLC 5.1 Premium


FINISH:

UV stabilized powder coated finish


HOUSING:


Die Cast Aluminum Head and Driver box with a steel frame for support coated in a gray powder coat


LENS:
20, 30, 40, and 50 Degree Optics


OPTIONS:
Standard 200-528V Driver Standard U Bracket and Bolt Mounting Option Finish Gray color option with adder

Specifications

  • INPUT VOLTAGE 200-528V
  • INPUT WATTAGE 575W
    850W
  • LUMENS 90000 lms
    140000 lm
  • EFFICANCY 157 lm/w
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -40F-104F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • CRI 70+
  • AVAILABLE CCT 5000K
  • MODEL NUMBER ML-SPL-4801-575W-5K-UV
    ML-SPL-4805-850W-5K-UV

Download

  • Model No.
  • ML-SPL-4801-575W-5K-UV
  • ML-SPL-4805-850W-5K-UV
  • Wattage
  • 575W
  • 850W
  • CCT
  • 5000K
  • 5000K
  • Lumens
  • 90000 lms
  • 140000 lms

ML-SPL-4801-575W-5K-HV

ML-SPL-4805-850W-5K-HV
