ML-HB-66X Series

ML-HB-66X Series

LED Round High Bay with CCT and Wattage Selectable

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
Marathon Lighting HB-66X Series is a strong round highbay contender.  With two sizes at smaller size going to 150W and larger size going to 240W, this highbay family can handle all your requirements.  With features such as wattage and color temperature selectable technology built in, contractors can easily access this technology directly on the lens surface with easy to use slide switches.  Also included is the contractor-friendly plug and play sensor option.  It allows contractors to quickly install motion sensors without the mess of connecting wires.  LED Driver is elevated so faster heat dissipation allowing for longer life in tough temperature environments.
View full details

Applications:

  • Warehouse, Factory, Parking Lot or Garage, Gas Station, High Ceiling Light, Canopy Light, Industrial Site Lighting, Schools, Restaurants.

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 400W metal-halide light
  • Advanced optic system
  • 21000 Lumens and 31678 Lumens
  • Black aluminum housing
  • Input Power of 150W/120W/100W
  • Input Power of 240W/180W/135W
  • 3000K/4000K/5000K White Color Output
  • UL Listed and suitable for wet locations , DLC Premium and FCC
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V (Universal Voltage)
    277-480V (High Voltage)
  • INPUT WATTAGE 150/120/100W
    240/180/135W
  • LUMENS 21000 lms
    31675 lms
  • EFFICACY 140 LM/W
  • RATED LIFE 50,000 hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -40 °F to 122 °F
  • CERTIFICATION UL/CUL, Wet Locations, FCC
  • EQUAL TO 400W Metal Halide
  • CRI >80
  • AVAILABLE CCT 3000K/4000K/5000K
  • IP RATING IP65

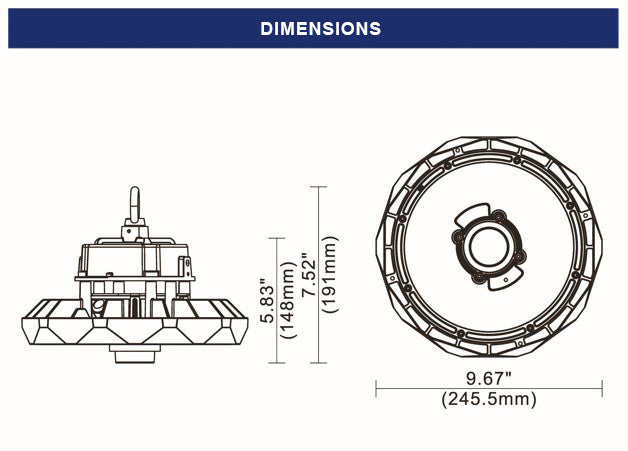

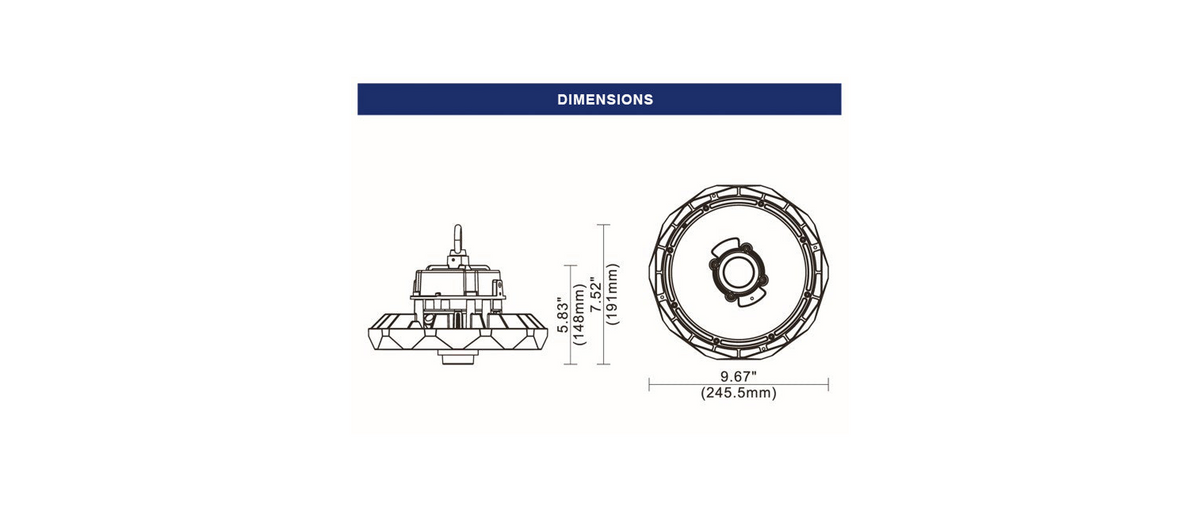

  • DIMENSION 9.67" x 9.67" x 5.83"

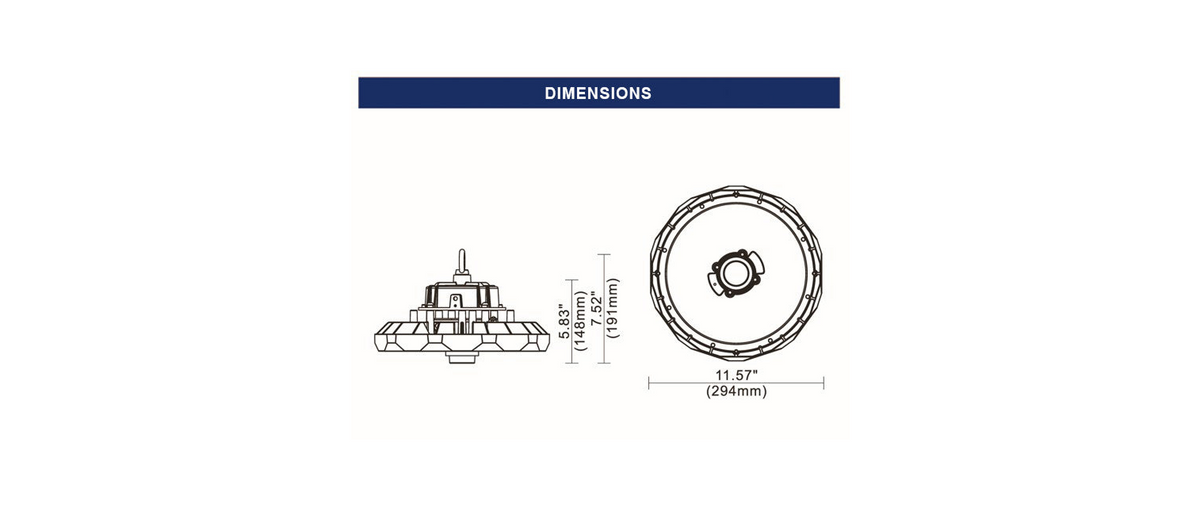

    11.57" x 11.57" x 5.83"
  • WEIGHT 10.5 lbs
    12.5 lbs
  • MODEL NUMBER ML-HB-6613-150WT-345K
    ML-HB-6633-240WT-345K
  • COLOR Black
    White

Download

  • Model No.
  • ML-HB-6613-150WT-345K
  • ML-HB-6633-240WT-345K
  • Wattage
  • 150W/120W/100W
  • 240W/180W/135W
  • CCT
  • 3000K/4000K/5000K
  • 3000K/4000K/5000K
  • Lumens
  • 21000 lms
  • 31675 lms

ML-HB-6613-150WT-345K

ML-HB-6633-240WT-345K
