ML-TR Series

ML-TR Series

LED Troffer Series w/ CCT and Wattage Selectable

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

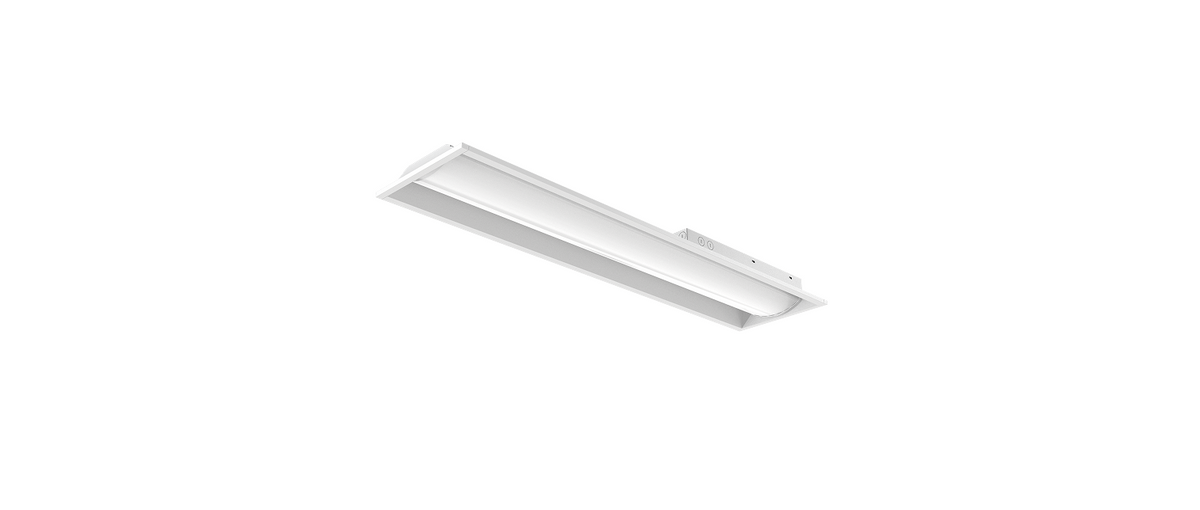

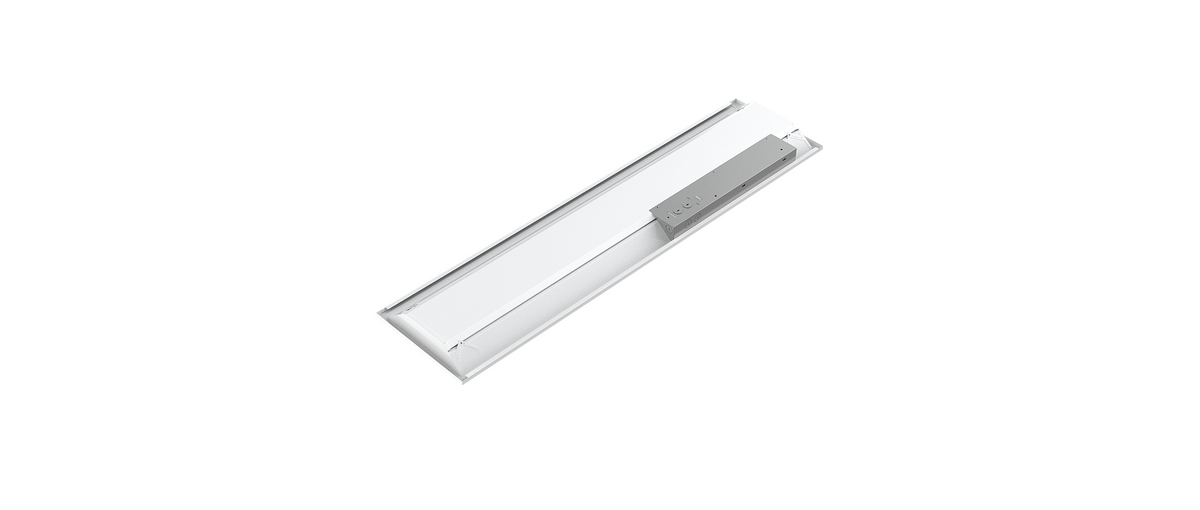

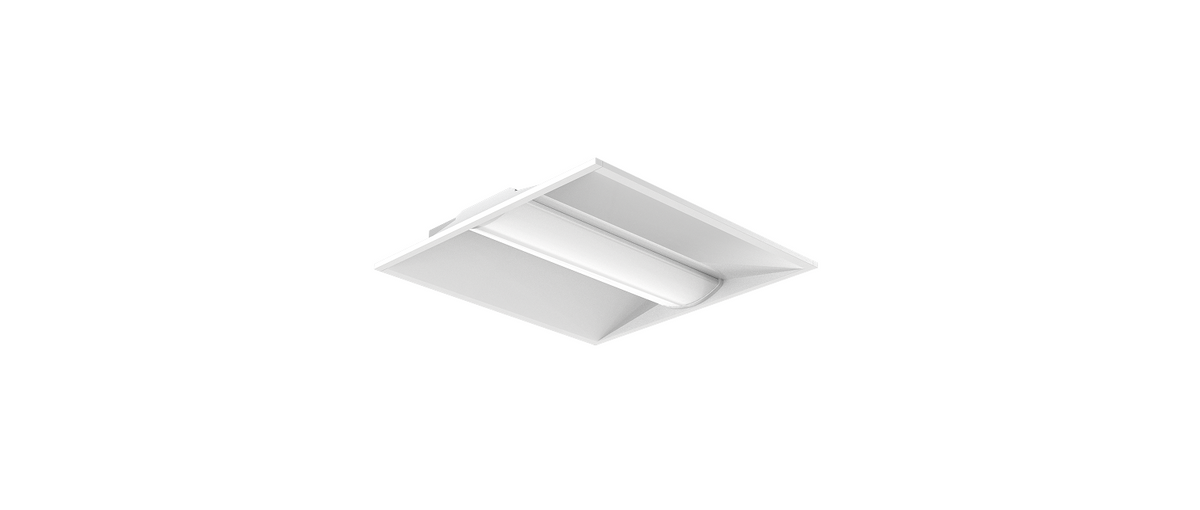

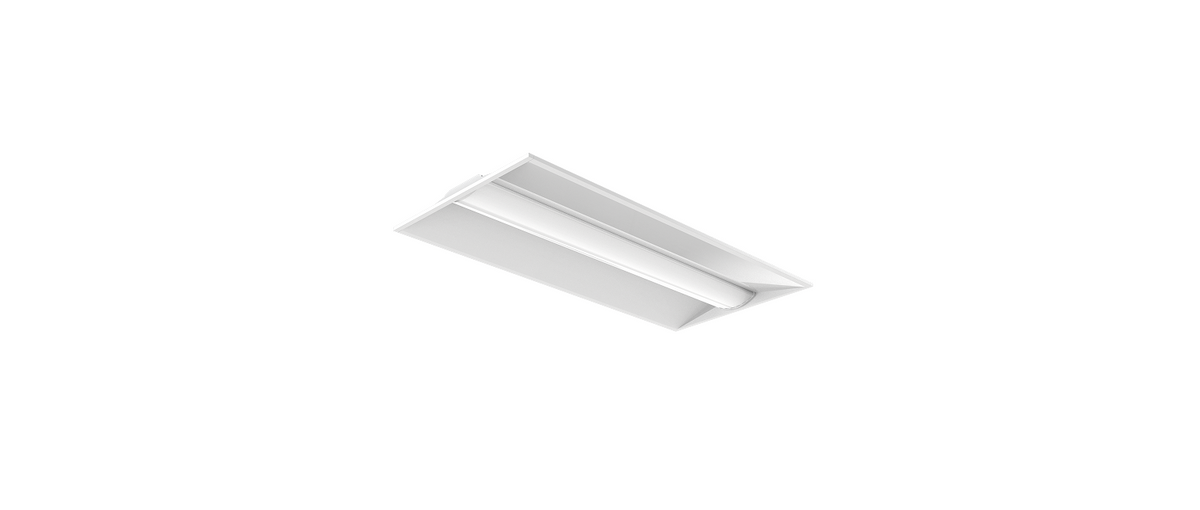

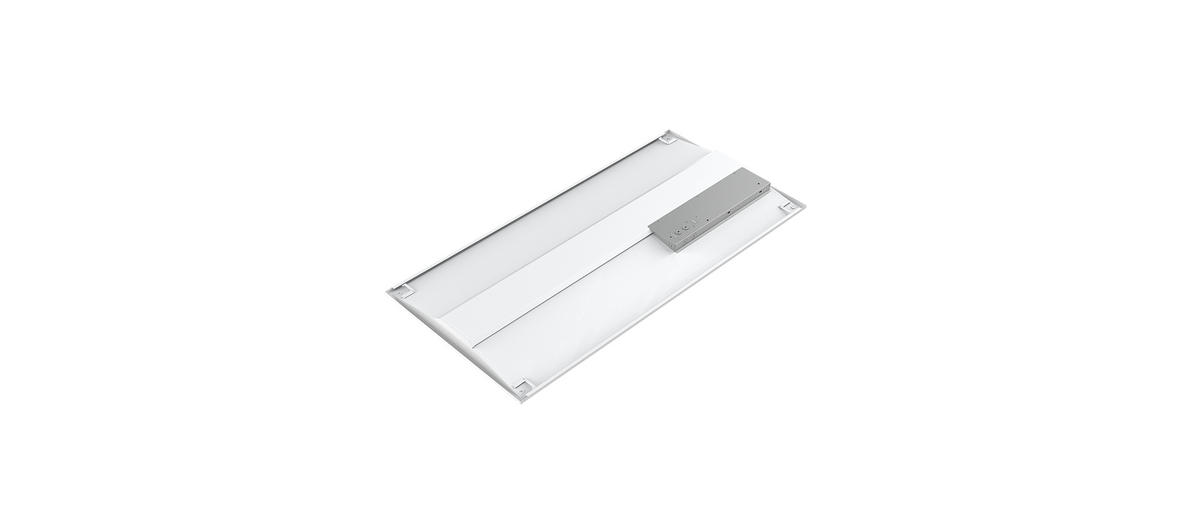

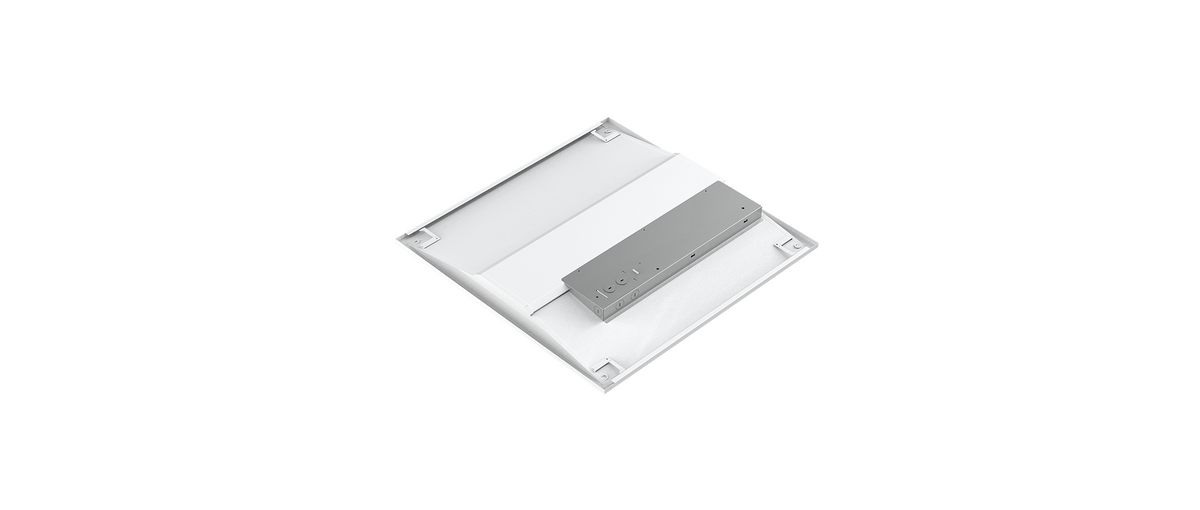

Three sizes in this LED Troffer family.  They are 1‘x4’, 2'X2', and 2'X4' dimensions.  This family provides a range of wattages and color temperature to satisfy any commercial applications.  Max. 45W and 36W and 50W LED Troffer Lights with 3500K/4000K/5000K color selectability. Powder painted steel heavy-gauge housing, DLC and UL Listed, 5-year limited warranty
View full details

Applications:

  • Schools, Retail stores, QSR environments, Offices, Hospitals and other work environments.

Key Features:

  • Three sizes in this panel family
  • Universal input voltage (120-277V)
  • CCT and Color Adjustable
  • Slim profile with best in class lumens performance
  • Prismatic frosted lens for great glare control
  • 5625/4500/6250 Lumens
  • Powder painted white steel gauge housing
  • Input Power of max. 45W or 36W or 50W
  • 3500K/4000K/5000K color selectable Daylight White Color Output
  • UL Listed and suitable for damp locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 20W/30W/45W
    30W/30W/36W
    30W/40W/50W
  • LUMENS 5625lms
    4500lms
    6250lms
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 130 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • CRI >70
  • AVAILABLE CCT 3500K/4000K/5000K
  • IP RATING IP43
  • DIMENSION 8.8" x 8.8" x 3.3"
    10.6" x 10.6" x 3.7"
    12.8" x 12.8" x 3.85"
  • WEIGHT 5.58 lbs
  • MODEL NUMBER ML-TR-14-45WT-3545K-UV
    ML-TR-22-36WT-3545K-UV
    ML-TR-24-50WT-3545K-UV

Download

  • Model No.
  • ML-TR-14-45WT-3545K-UV
  • ML-TR-22-36WT-3545K-UV
  • ML-TR-24-50WT-3545K-UV
  • Wattage
  • 20/30/45W
  • 20/30/36W
  • 30/40/50W
  • CCT
  • 3500K/4000K/5000K
  • 3500K/4000K/5000K
  • 3500K/4000K/5000K
  • Lumens
  • 5625lms
  • 4500lms
  • 6250lms

ML-TR-14-45WT-3545K-UV

ML-TR-22-36WT-3545K-UV

ML-TR-24-50WT-3545K-UV
