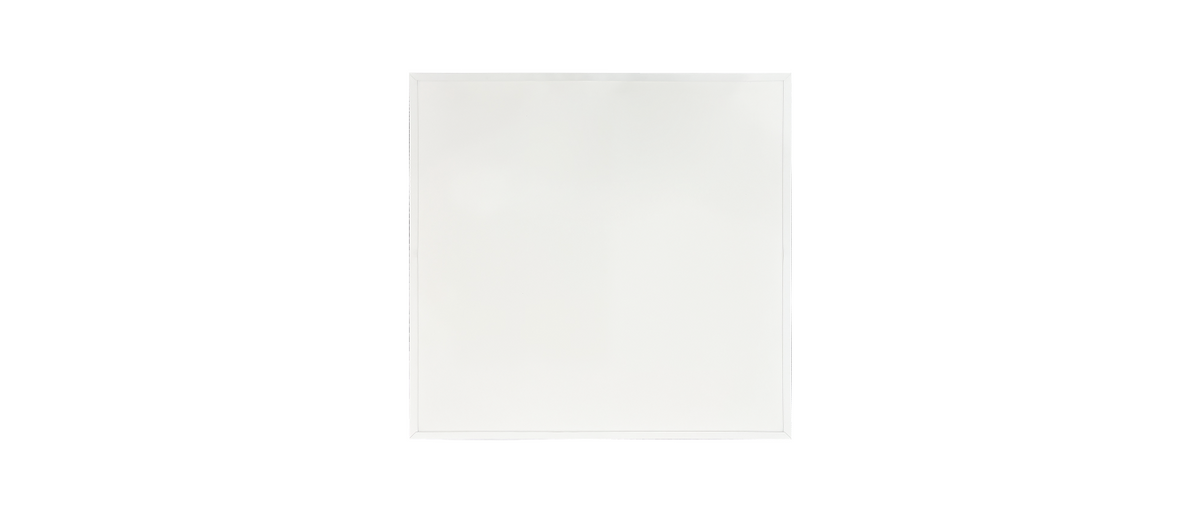

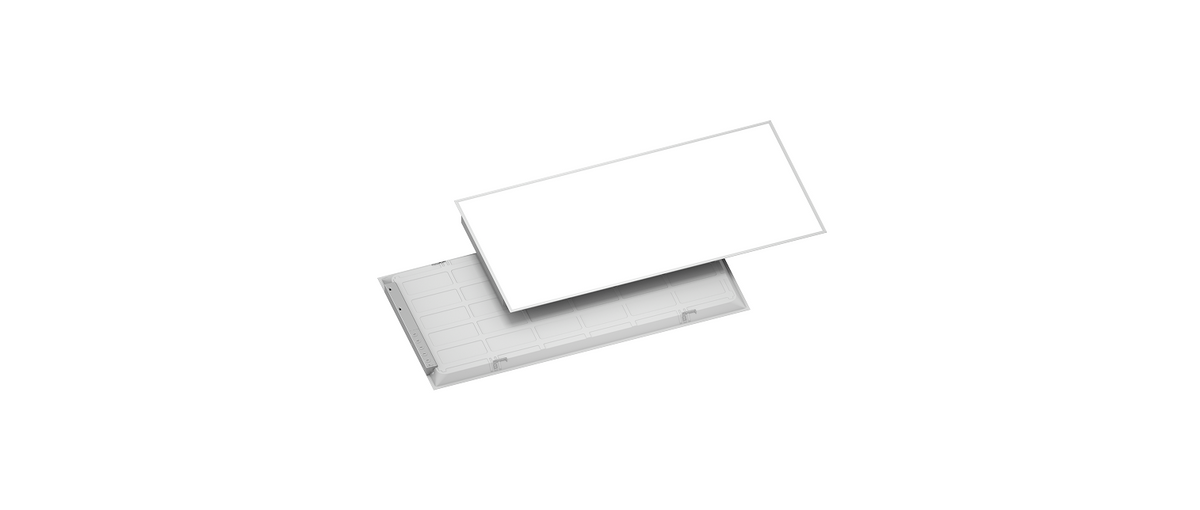

ML-PL (5 CCT Series)

ML-PL (5 CCT Series)

High Output LED Panel Series with 5CCT

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

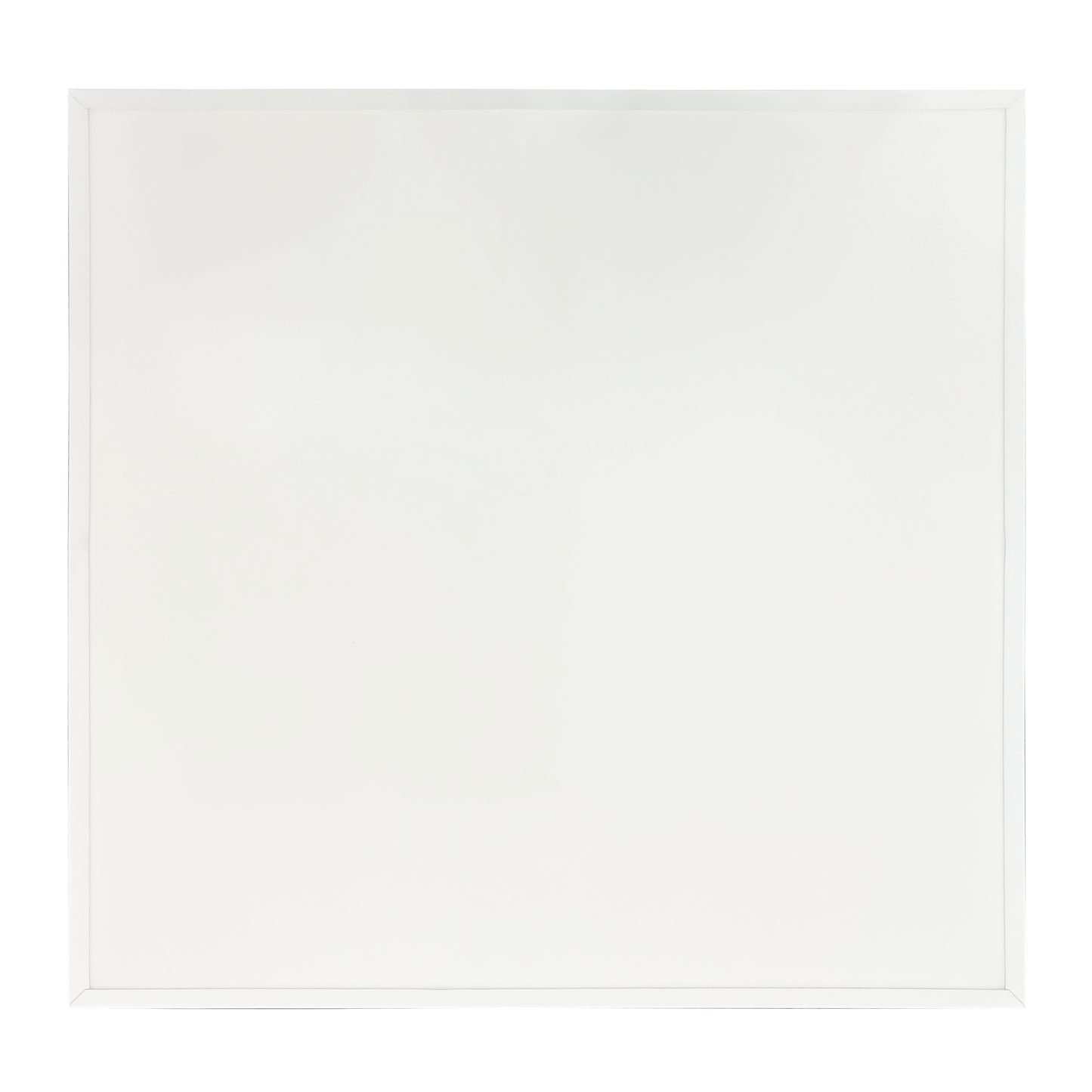

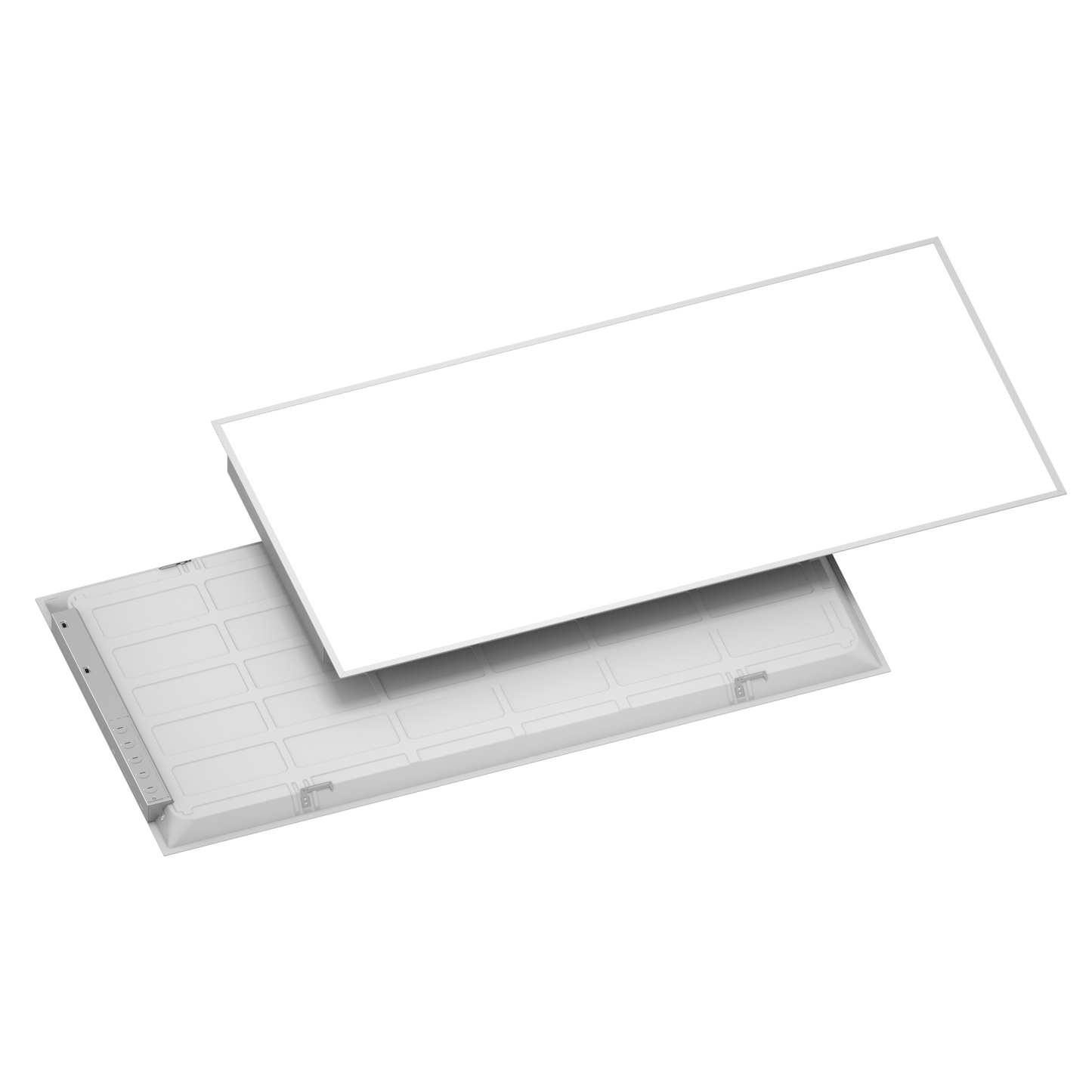

Available in two convenient sizes 2'X2'ft, and 2'X4'ft dimensions. This versatile LED Panel family is designed to meet the demands of various commercial applications. With power options up to 40W and 72W, and selectable color temperatures ranging from 3000K to 6500K, these troffers provide customizable illumination to suit any environment.

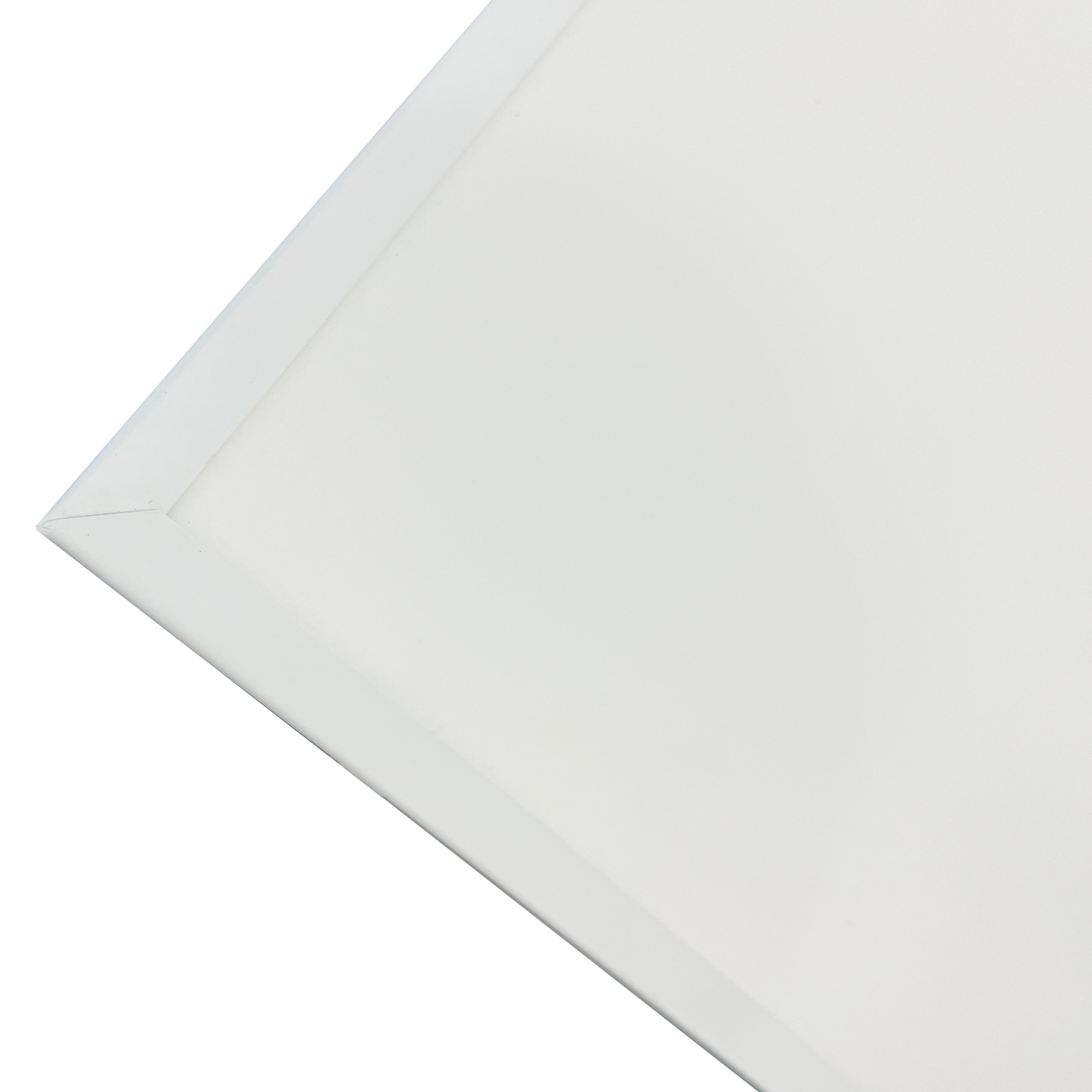

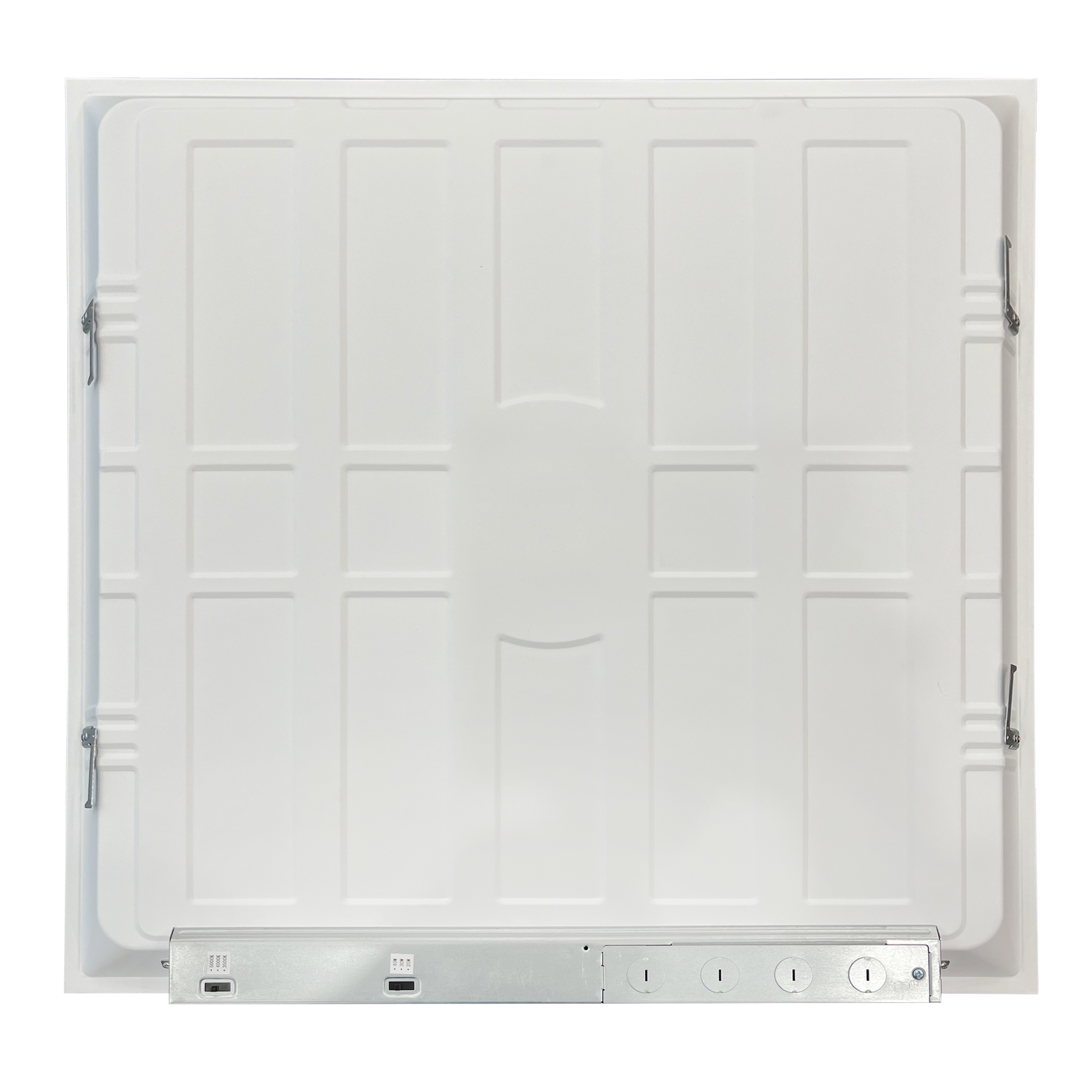

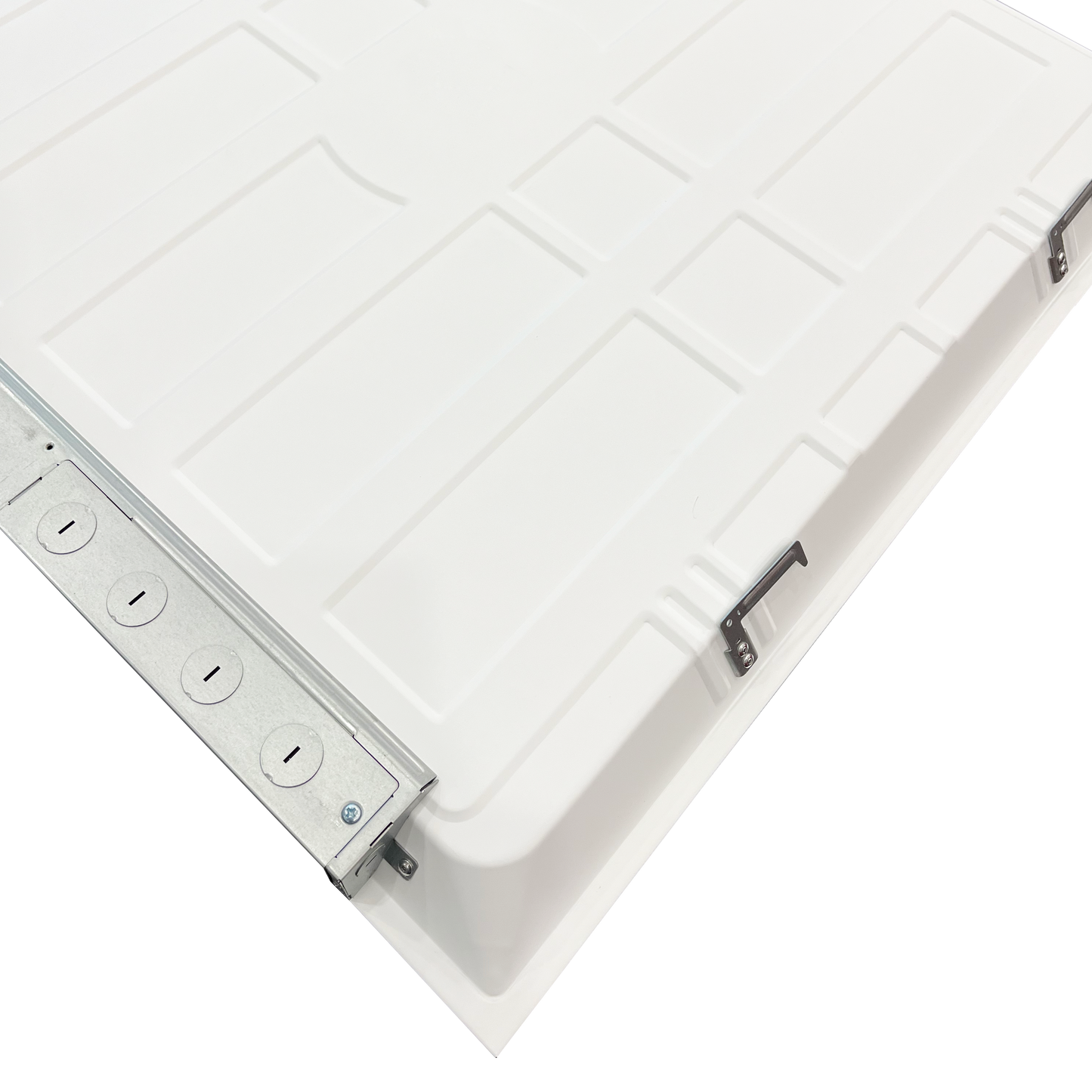

Constructed with a durable, powder-coated steel housing, each fixture is DLC and UL listed, ensuring both quality and energy efficiency. A 5-year limited warranty offers added peace of mind.

For added functionality, an emergency battery backup option is available, providing up to 90 minutes of illumination in case of power loss.

View full details

Applications:

  • Schools, Retail stores, QSR environments, Offices, Hospitals and other work environments.

Key Features:

  • Two sizes in this panel family
  • Universal input voltage (120-277V)
  • CCT and Color Adjustable
  • Emergency options - 90 min backup time
  • Slim profile with best in class lumens performance
  • 2500/3125/3750/4375/5000 Lumens
  • 3750/5000/6250/7500/9000 Lumens
  • Powder painted white steel gauge housing
  • Input Power of max. 40W or 72W
  • 3000K/3500K/4000K/5000K/6500K color selectable Daylight White Color Output
  • UL Listed
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 20W/25W/30W/35W/40W
    30W/40W/50W/60W/72W
  • LUMENS 5000lms
    9000lms
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • CRI >80
  • AVAILABLE CCT 3000K/3500K/4000K/ 5000K/6500K
  • IP RATING IP43
  • DIMENSION 8.8" x 8.8" x 3.3"
    10.6" x 10.6" x 3.7"
  • WEIGHT 5.58 lbs
  • MODEL NUMBER ML-PL-22-40WT-5CCT-UV
    ML-PL-22-40WT-5CCT-UV-EM
    ML-PL-24-50WT-5CCT-UV
    ML-PL-24-50WT-5CCT-UV-EM

Download

  • Model No.
  • ML-PL-22-40WT-5CCT-UV
  • ML-PL-22-40WT-5CCT-UV-EM
  • ML-PL-24-50WT-3545K-UV
  • ML-PL-24-50WT-3545K-UV-EM
  • Wattage
  • 20/25/30/35/40W
  • 20/25/30/35/40W
  • 30/40/50/60/72W
  • 30/40/50/60/72W
  • CCT
  • 3000K/3500K/4000K/ 5000K/6500K
  • 3000K/3500K/4000K/ 5000K/6500K
  • 3000K/3500K/4000K/ 5000K/6500K
  • 3000K/3500K/4000K/ 5000K/6500K
  • Lumens
  • 5000lms
  • 5000lms
  • 9000lms
  • 9000lms

ML-PL-22-40WT-5CCT-UV

ML-PL-22-40WT-5CCT-UV-EM

ML-PL-24-72WT-5CCT-UV

ML-PL-24-72WT-5CCT-UV-EM
