ML-BL-7503 Series

ML-BL-7503 Series

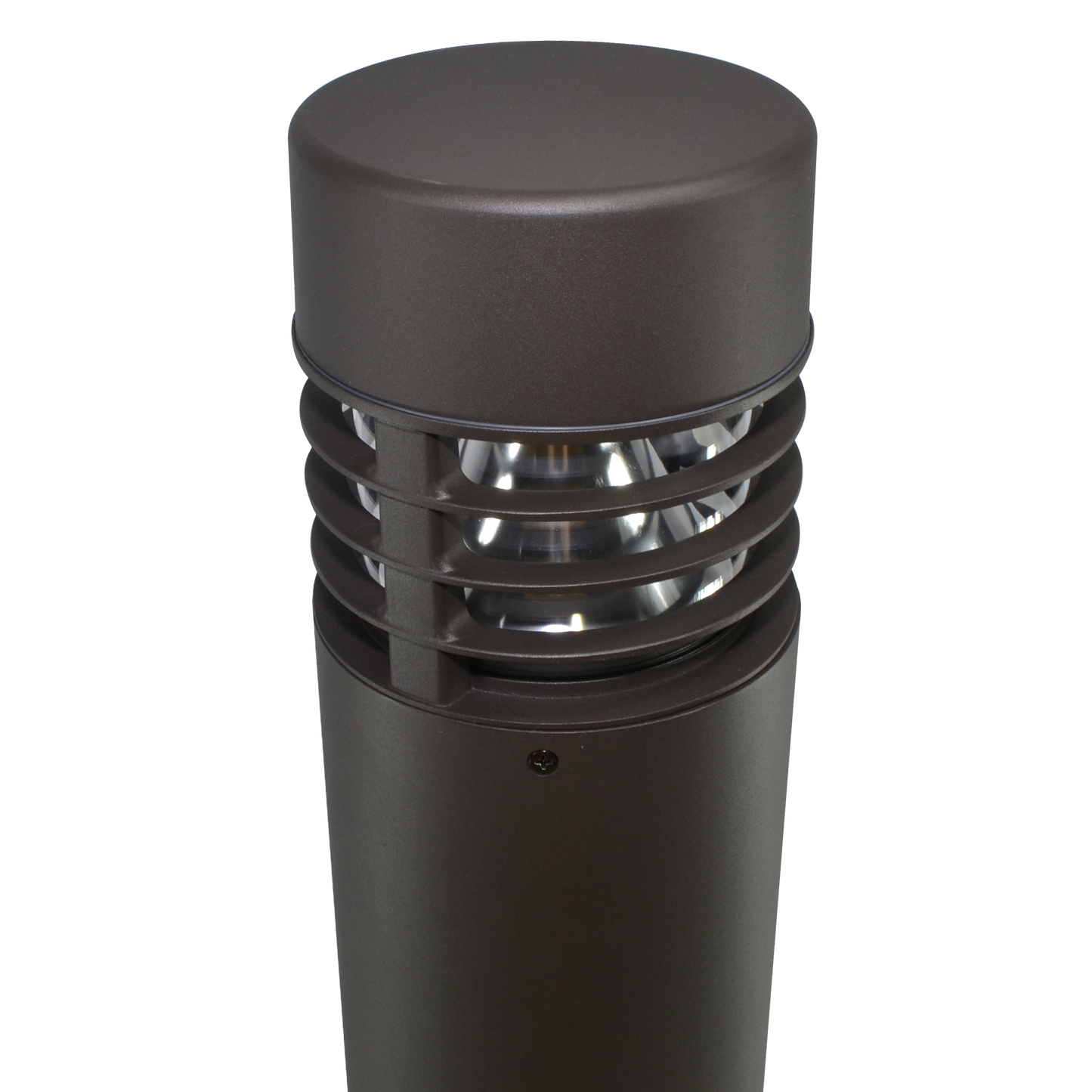

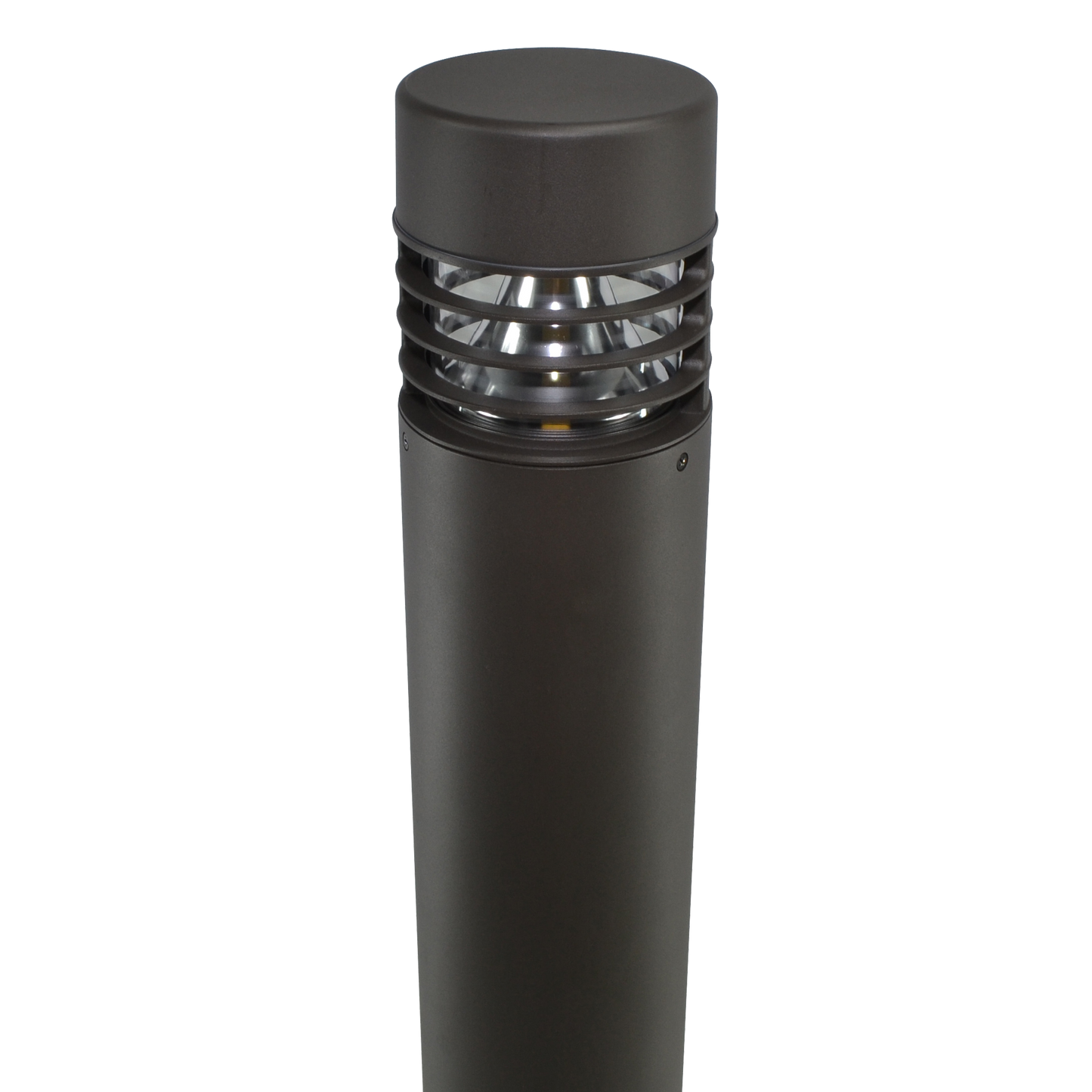

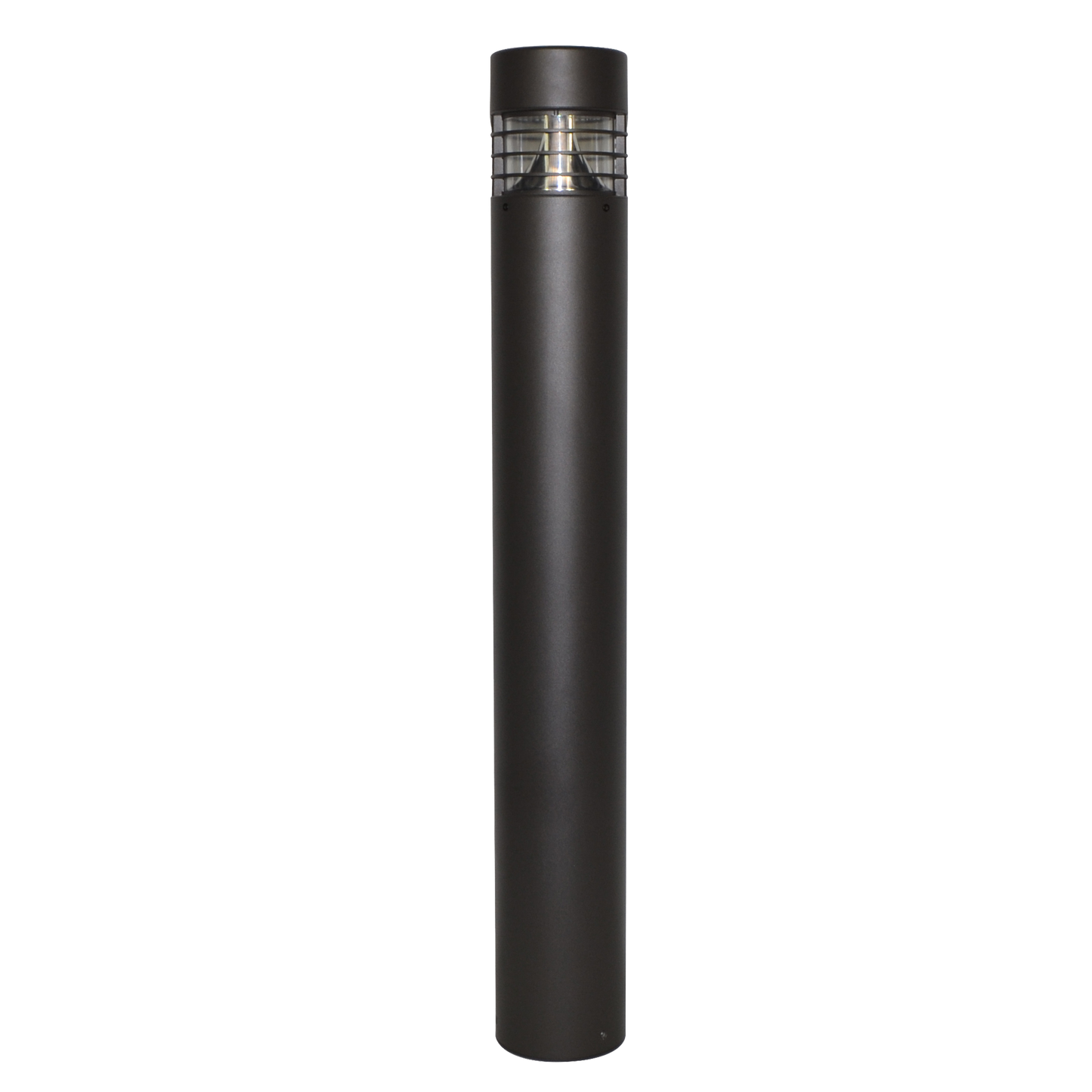

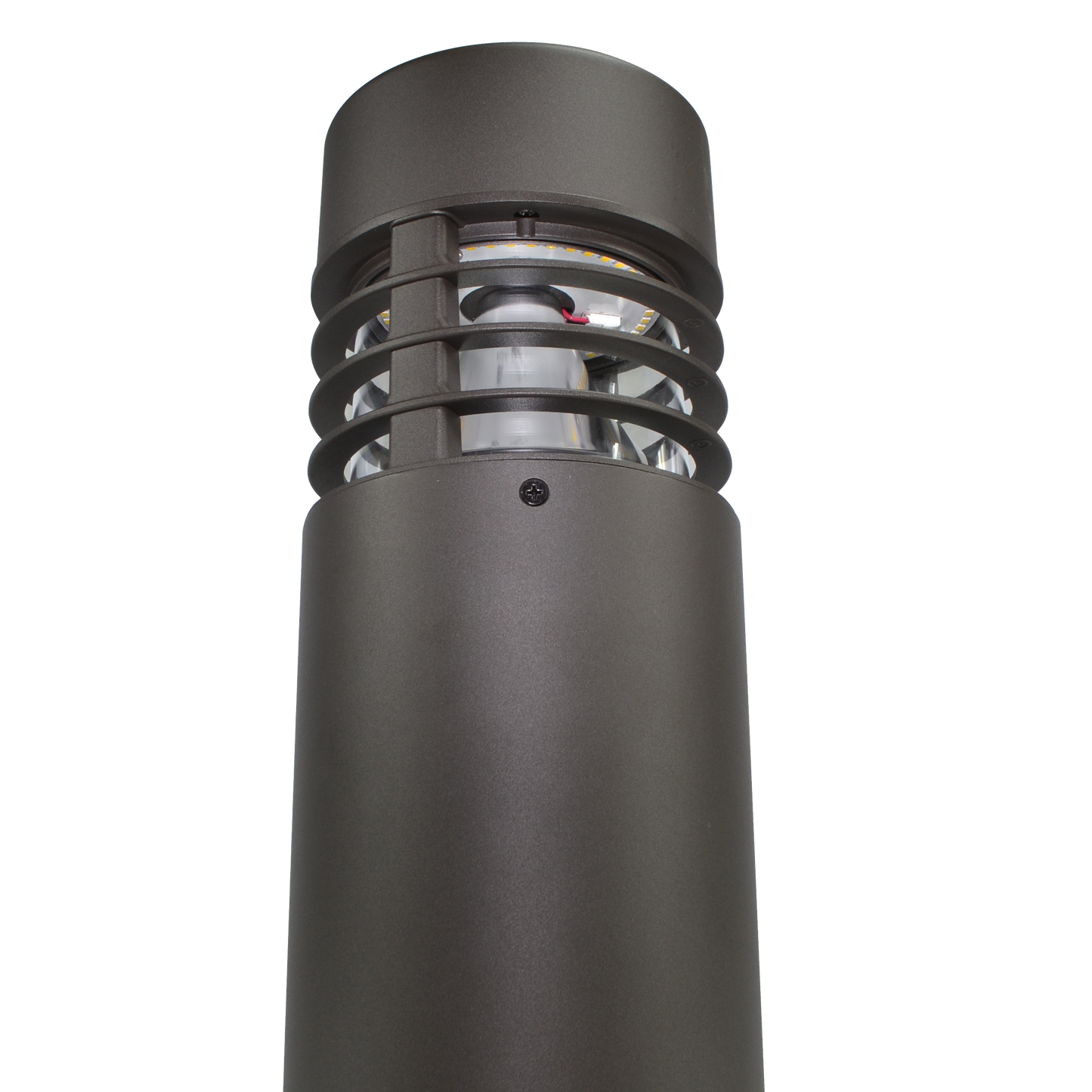

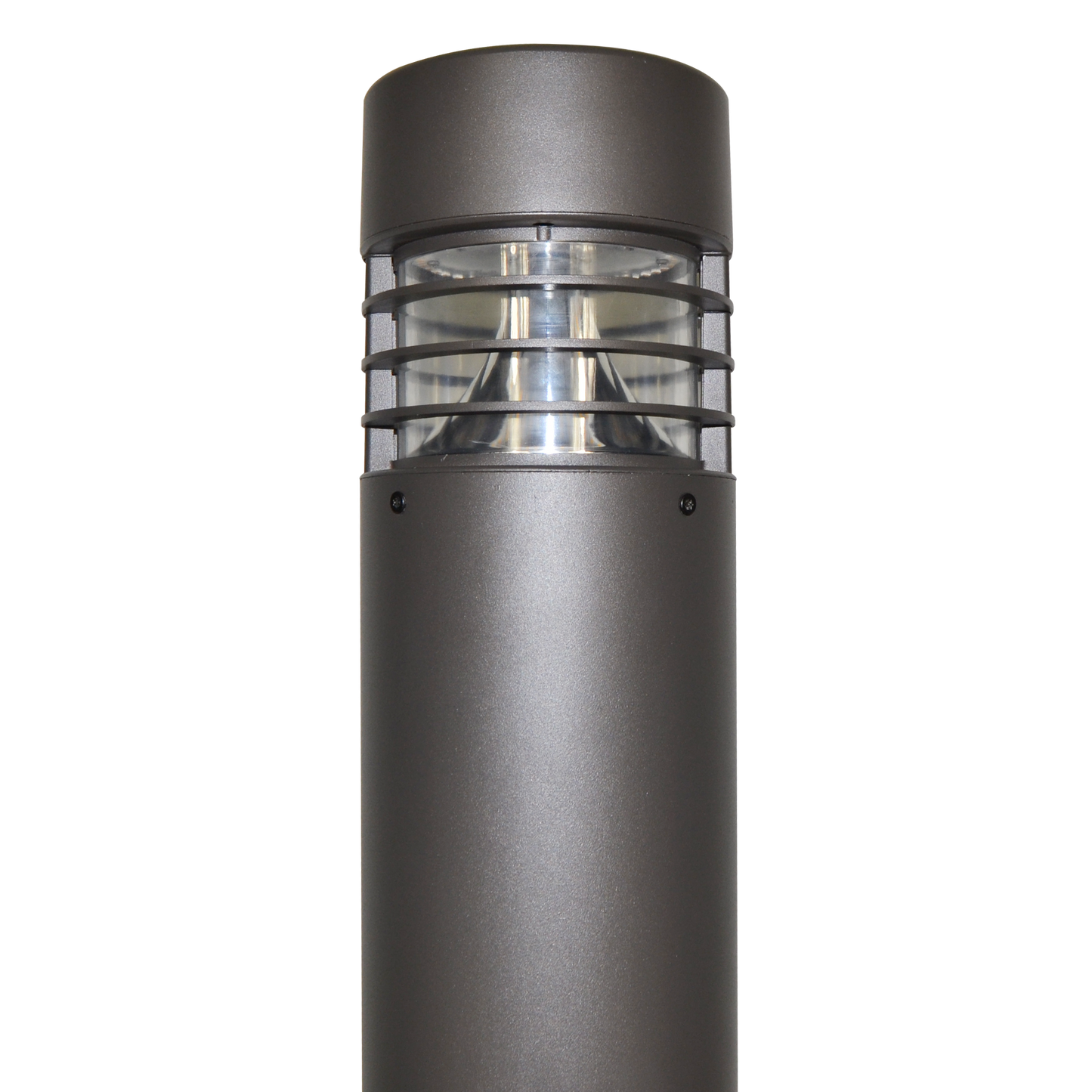

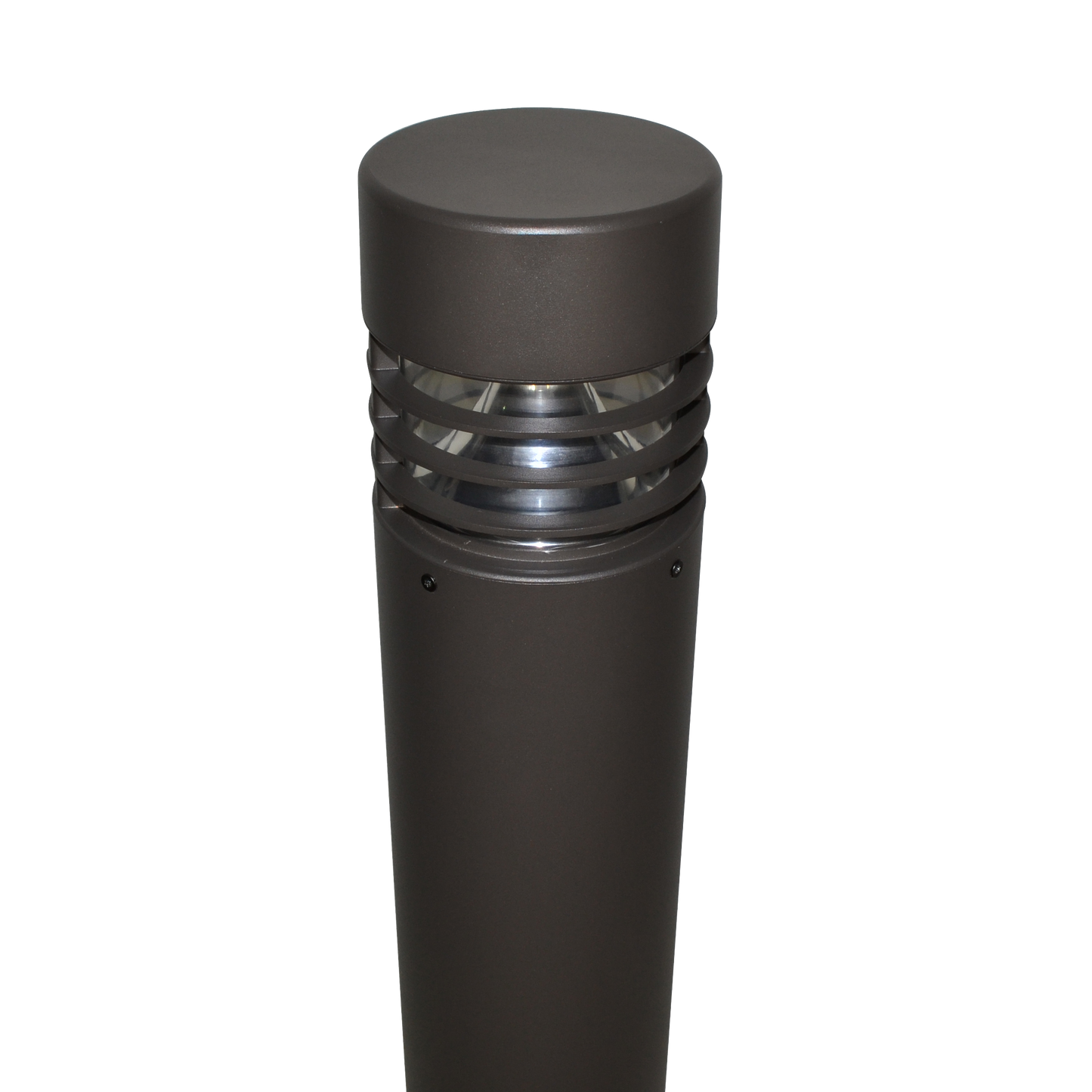

6" LED Round Bollard with Baffle

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

Replaces 150-watt high intensity discharge (HID). 30 Watt LED Bollard Light with Baffle. 30W/20W/10W with max. 1252 delivered lumens. 3000K/4000K/5000K, dark bronze, DLC and UL Listed, 5-year limited warranty

View full details

Applications:

  • Bollard Light, Garden Light, Lighting Pedestrian Walkways

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 150W metal-halide light
  • Advanced optic system for rebate eligibility
  • 1252 Max Lumens
  • Dark bronze aluminum housing
  • Input Power of 30/20/10 Watts
  • 3000K/4000K/5000K Daylight Warm Color Output
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 10W/20W/30W
  • LUMENS 1252 max. lumens
  • EFFICANCY 42LM/W
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations
  • EQUAL TO 150W
  • CRI >70
  • AVAILABLE CCT 3000K/4000K/5000K
  • IP RATING IP65

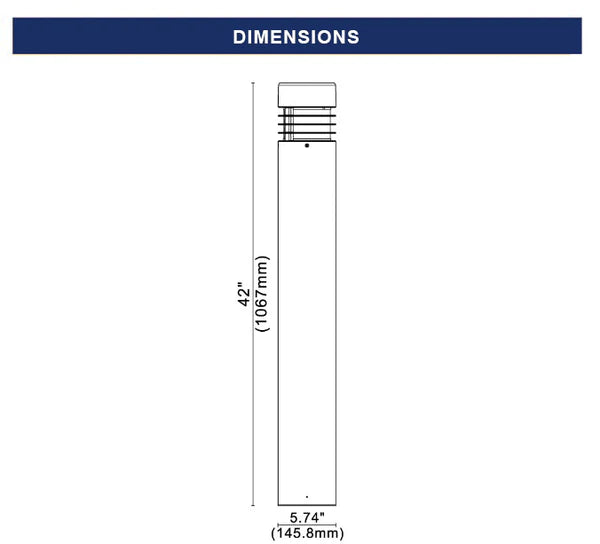

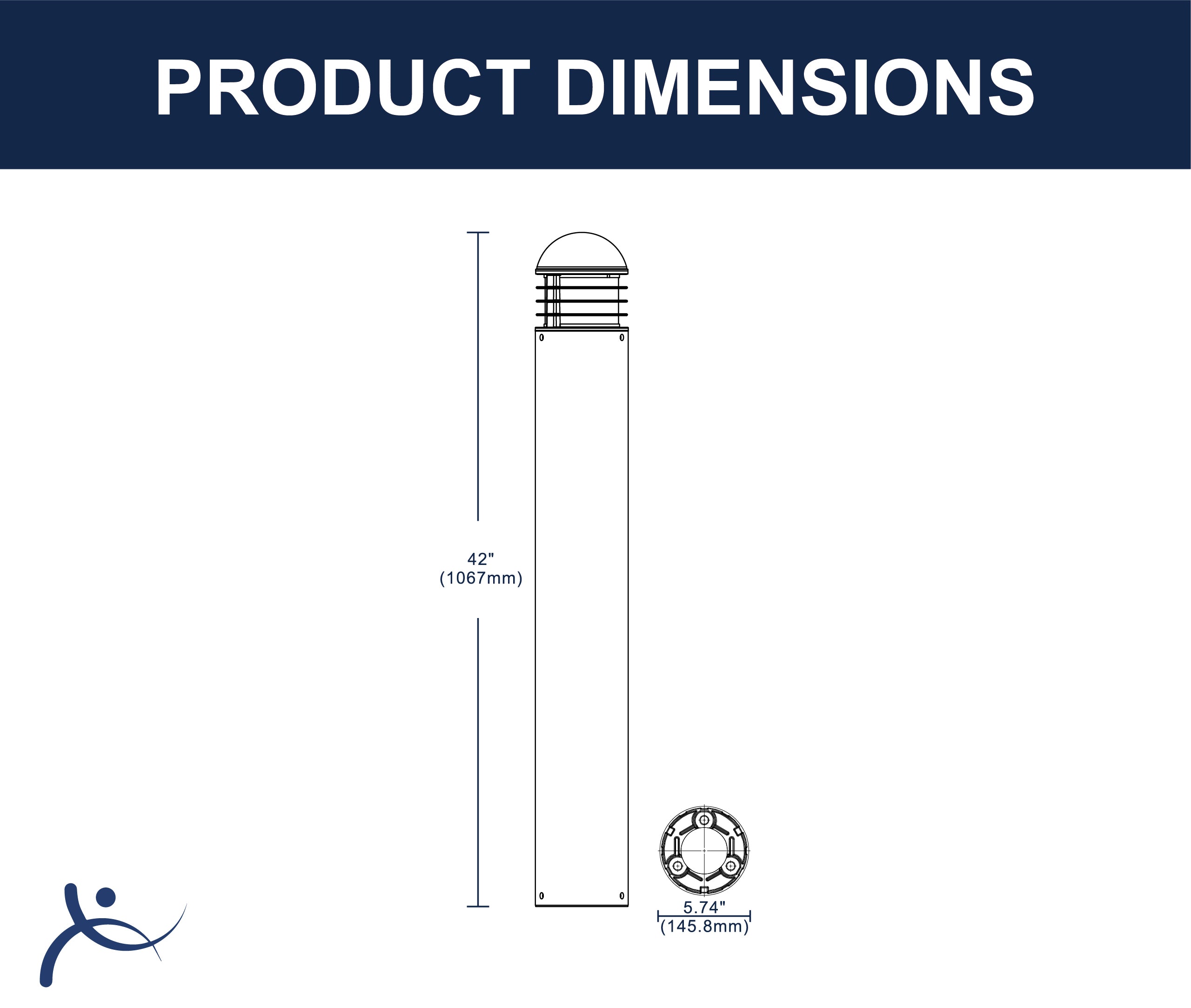

  • DIMENSION 5.74" * 5.74" * 42"
  • WEIGHT 15lbs
  • MODEL NUMBER ML-BL-7503-30WT-345K-FH-UV
    ML-BL-7503-30WT-345K-RH-UV

Download

  • Model No.
  • ML-BL-7503-30WT-345K-FH-UV
  • ML-BL-7503-30WT-345K-RH-UV
  • Wattage
  • 10W/20W/30W
  • 10W/20W/30W
  • CCT
  • 3000/4000/5000K
  • 3000/4000/5000K
  • Lumens
  • 1252 Max. Lumens
  • 1252 Max. Lumens

ML-BL-7503-30WT-345K-FH-UV

ML-BL-7503-30WT-345K-RH-UV
