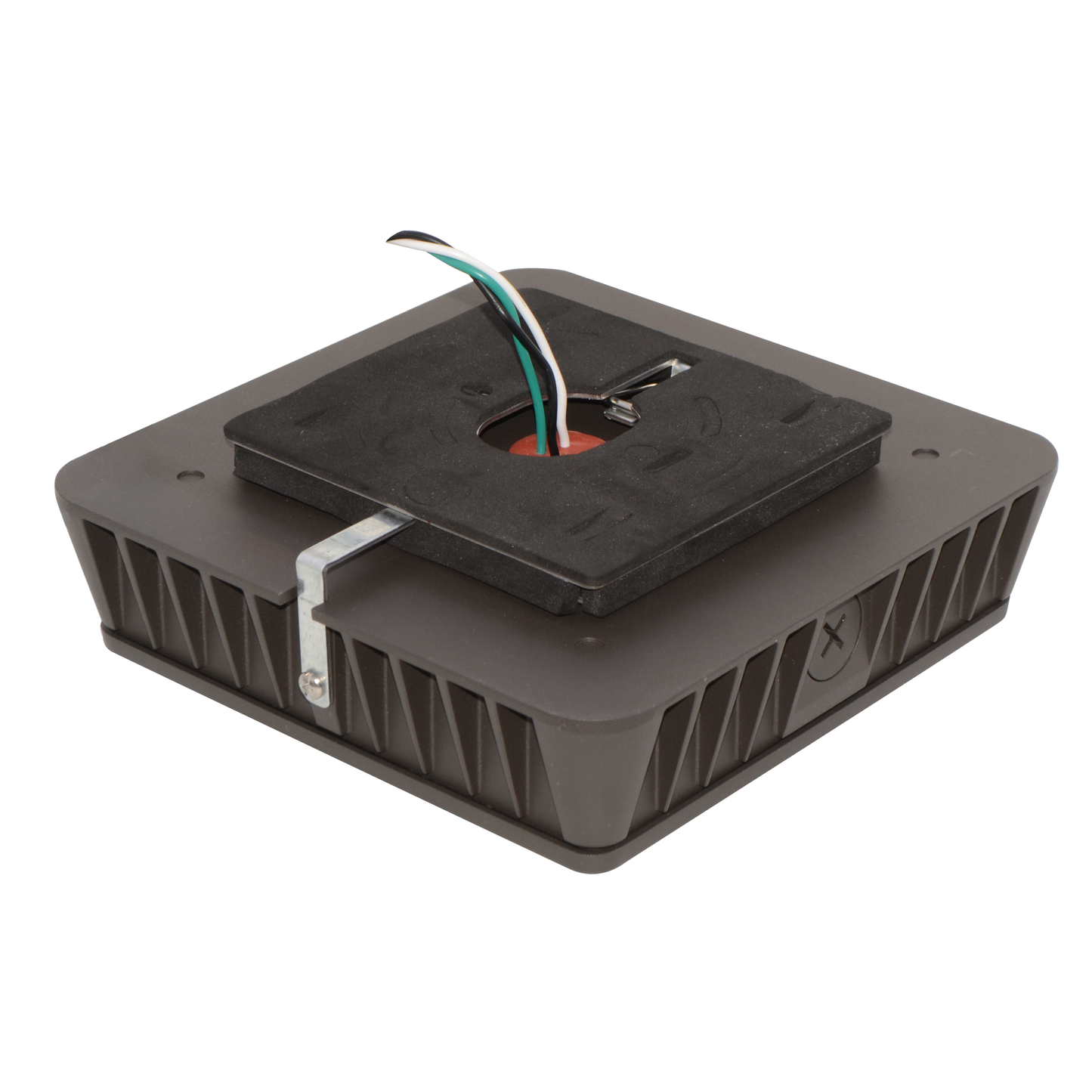

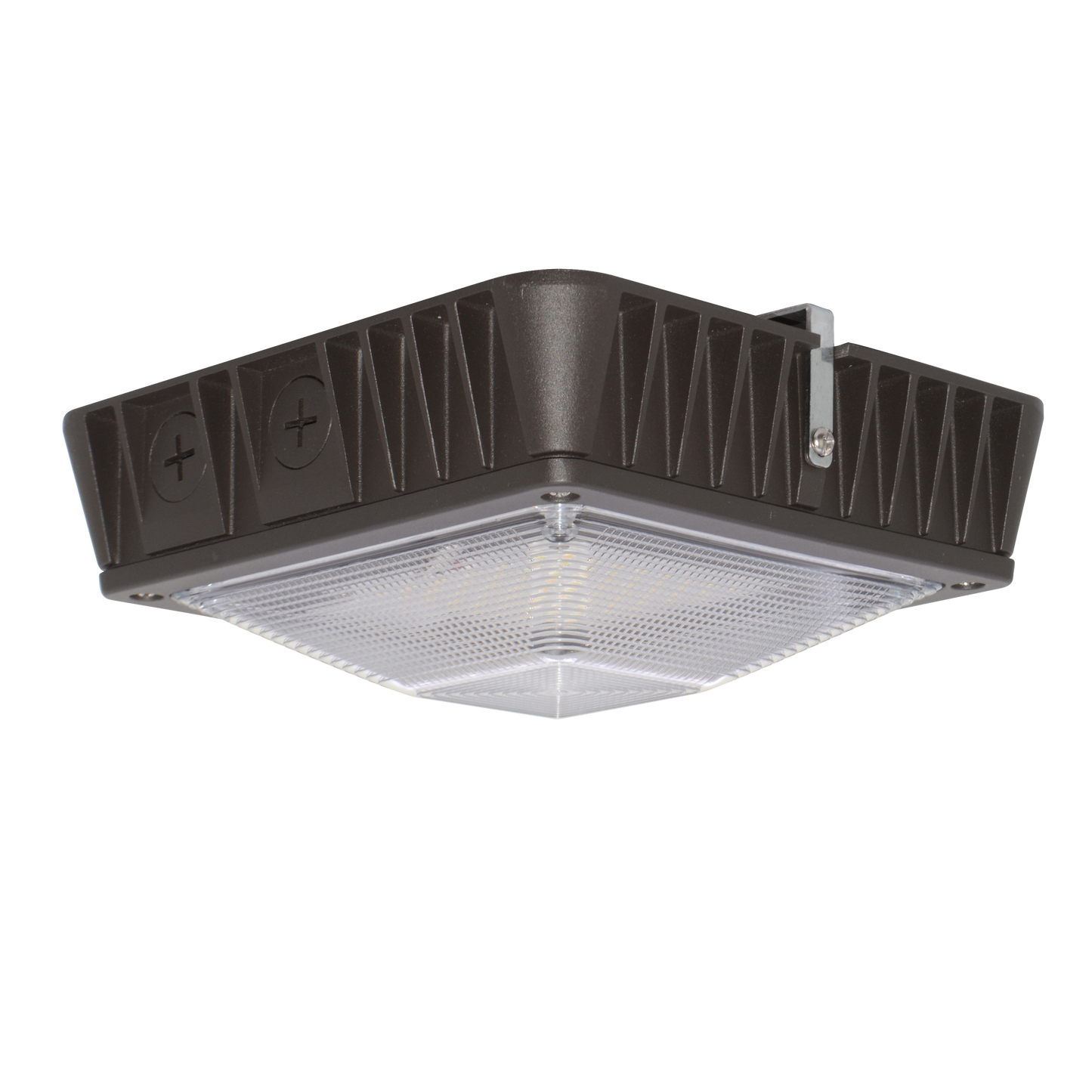

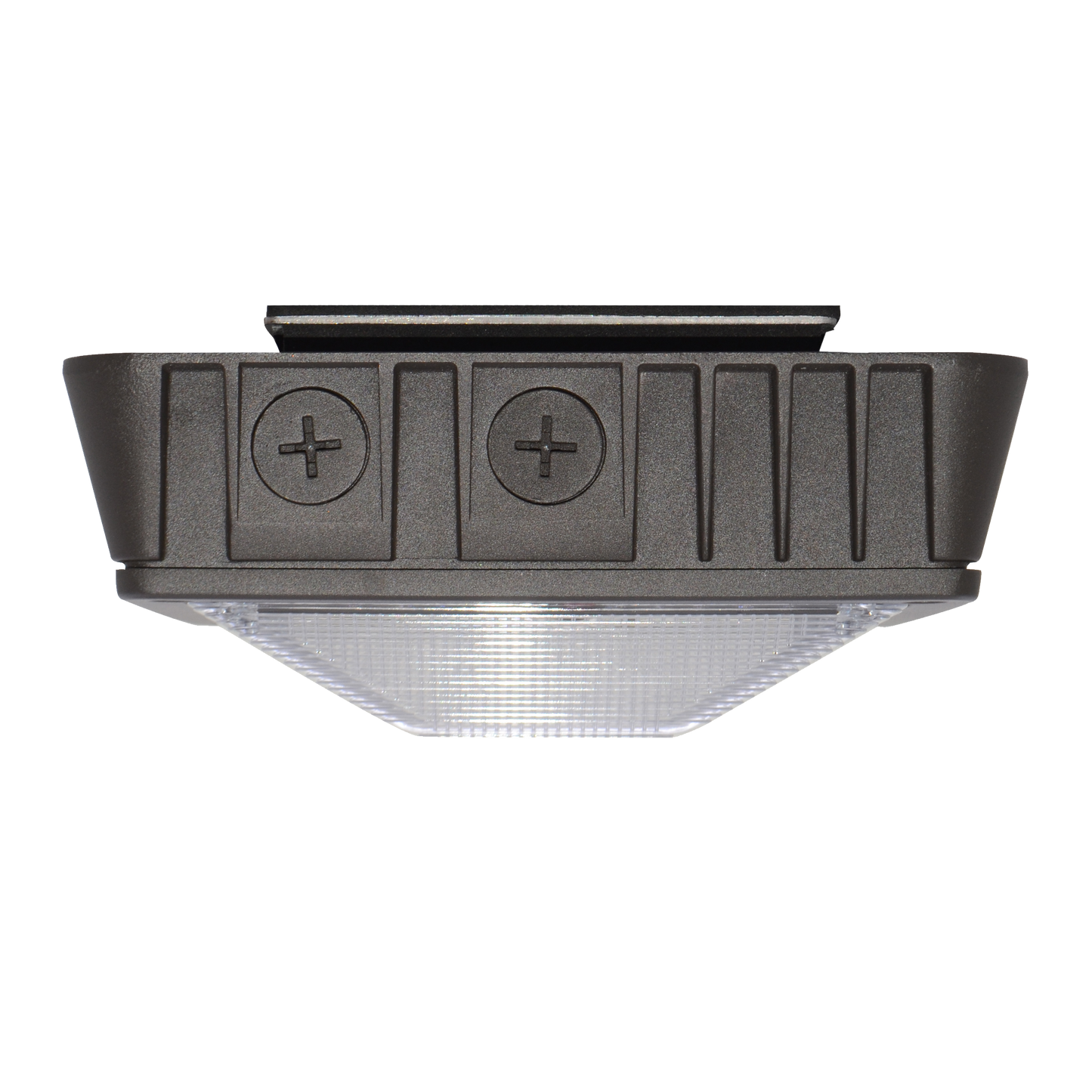

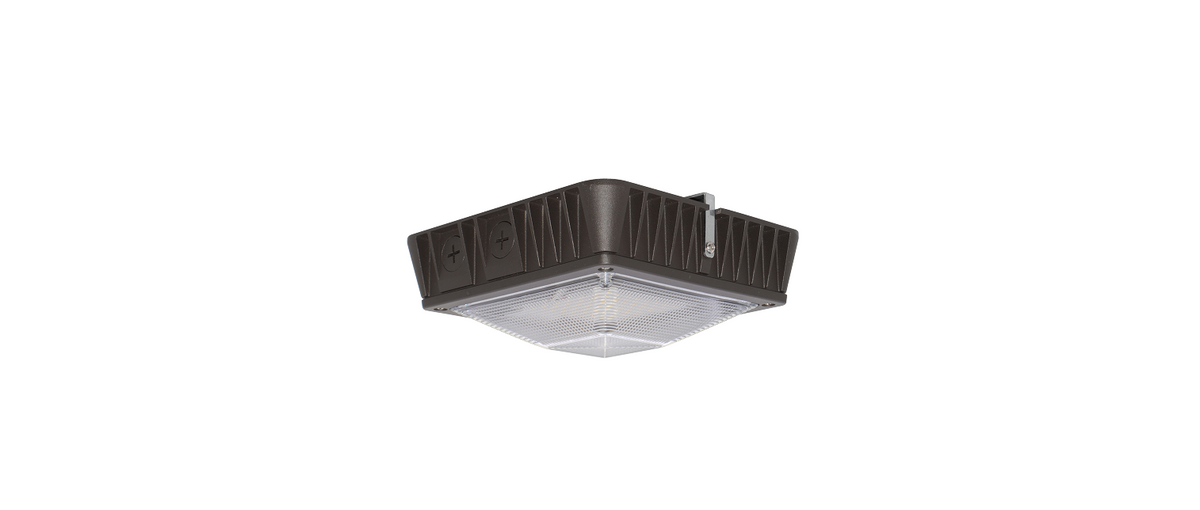

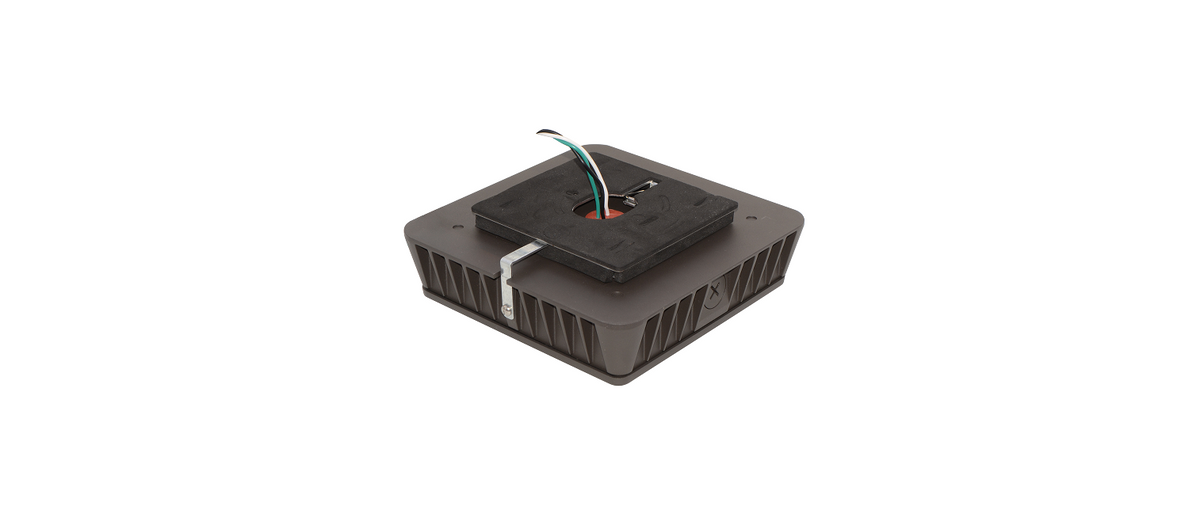

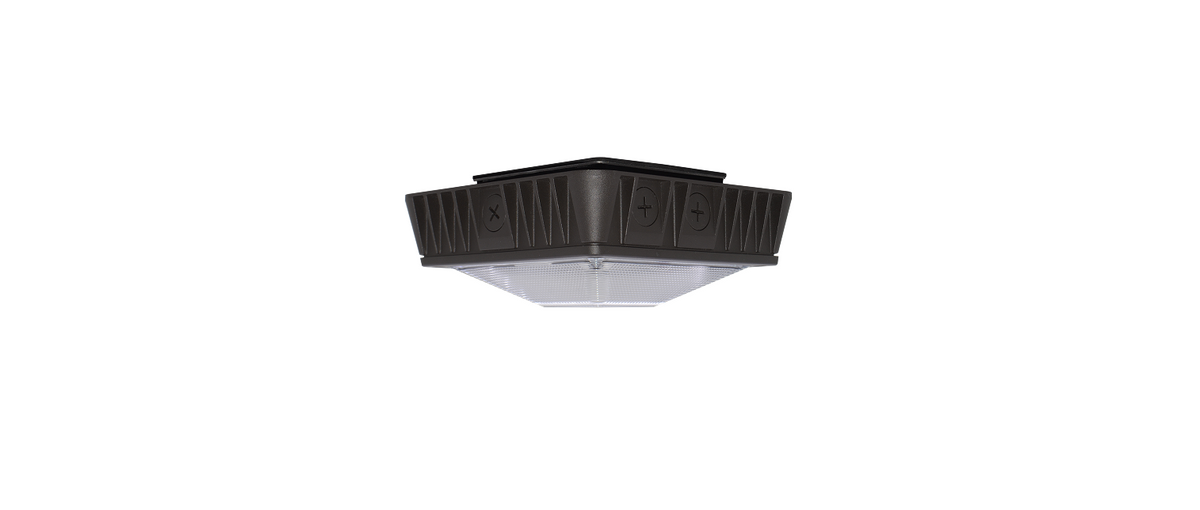

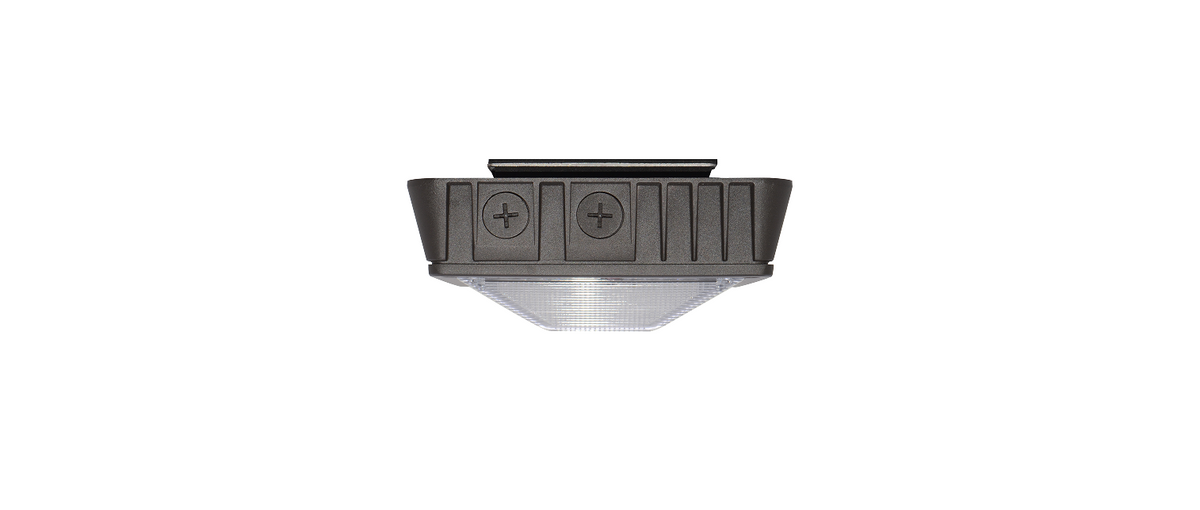

ML-GC-59XX Series
ML-GC-59XX Series
Replaces 100~250-watt high intensity discharge (HID). 40W-60W-80W LED Garage and Canopy Light with CCT and Wattage Selectable. Industrial strength polycarbonate lens with diamond cut prismatic distribution provide minimal glare to customers. 3000K/4000K/5000K Dark bronze, DLC and UL Listed, 5-year limited warranty
Specifications
-
INPUT VOLTAGE 120-277V
-
INPUT WATTAGE 14W/25W/37W/42W
26W/49W/72W/83W/37W/55W/61W
-
LUMENS 5574 lms
7707 lms
10815 lms -
RATED LIFE >50,000hrs
-
DIMMABLE 0-10V
-
OPERATING TEMPERATURE -30 °F to 104 °F
-
CERTIFICATION UL, Wet Locations, DLC Premium
-
EQUAL TO 100W/150W/250W Metal Halide
-
CRI >70
-
AVAILABLE CCT 3000K/4000K/5000K
-
IP RATING IP65
-
DIMENSION 8.8" x 8.8" x 3.8"
10.6" x10.6" x 4.2"
12.8" x 12.8" x 4.4" -
WEIGHT 5.58 lbs
8.8 lbs
12.5 lbs -
MODEL NUMBER ML-GC-5928-45WT-345K-UV
ML-GC-5948-60WT-345K-UV
ML-GC-5968-85WT-345K-UV
Download
-
ML-GC-5928 Spec Sheet ML-GC-5948 Spec Sheet ML-GC-5968 Spec Sheet Installation Guide ML-GC-59XX Series IES file
-
Model No.
-
ML-GC-5928-45WT-345K-UV
-
ML-GC-5948-60WT-345K-UV
-
ML-GC-5968-85WT-345K-UV
-
Wattage
-
14W/25W/37W/42W
-
19W/37W/55W/61W
-
26W/49W/72W/83W
-
CCT
-
3000K/4000K/5000K
-
Lumens
-
5574 lms
-
7707 lms
-
10815 lms
ML-GC-5928-45WT-345K-UV
ML-GC-5948-60WT-345K-UV
ML-GC-5968-85WT-345K-UV
