ML-TH-Edgelit DL

ML-TH-Edgelit DL

  • certifications
  • certifications
  • certifications

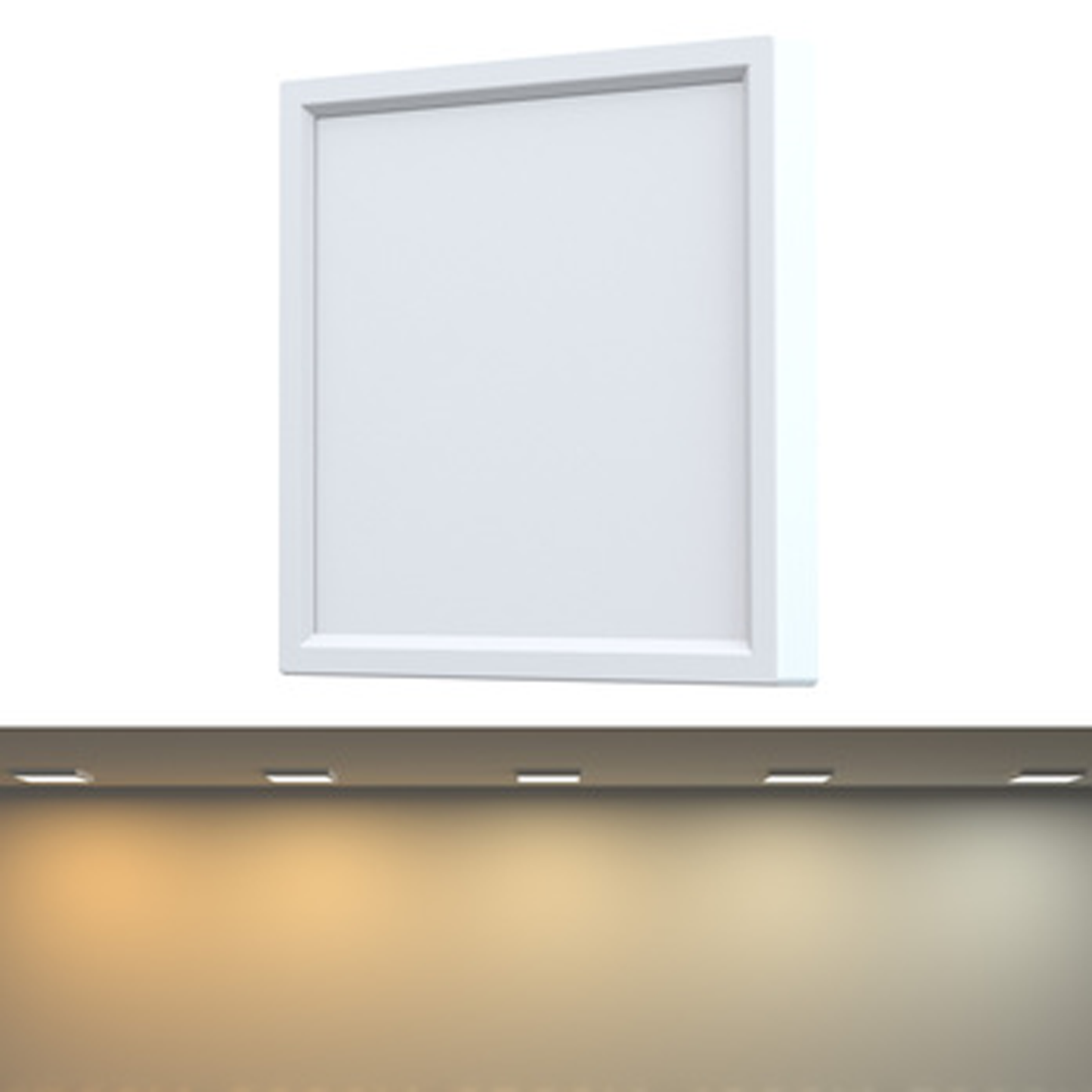

Slim profile LED surface mount is available in both round and square sizes.  Beautiful uniform light provides a glare-free lighting effect, ensuring great comfortability for homeowners.  Product is compatible with many junction boxes.   disc surface mount LED downlight in 4 inch and 6 inch is low profile.

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

  • Single input voltage (120V)
  • Comparable to a 75W incandescent bulb
  • Advanced industrial grade polycarbonate lens
  • 1050 lumens in 7 inch
  • Aluminum housing
  • 15 Watts in 6 inch downlight
  • Single CCT or multi CCT (3 CCT) Color Output
  • ETL Listed
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120V
  • INPUT WATTAGE 15W
  • LUMENS 1050 lms
  • EFFICANCY 70 LM/W
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION ETL
  • EQUAL TO 75W Incandescent
  • CRI >80
  • AVAILABLE CCT 2700K/3000K/4000K/5000K

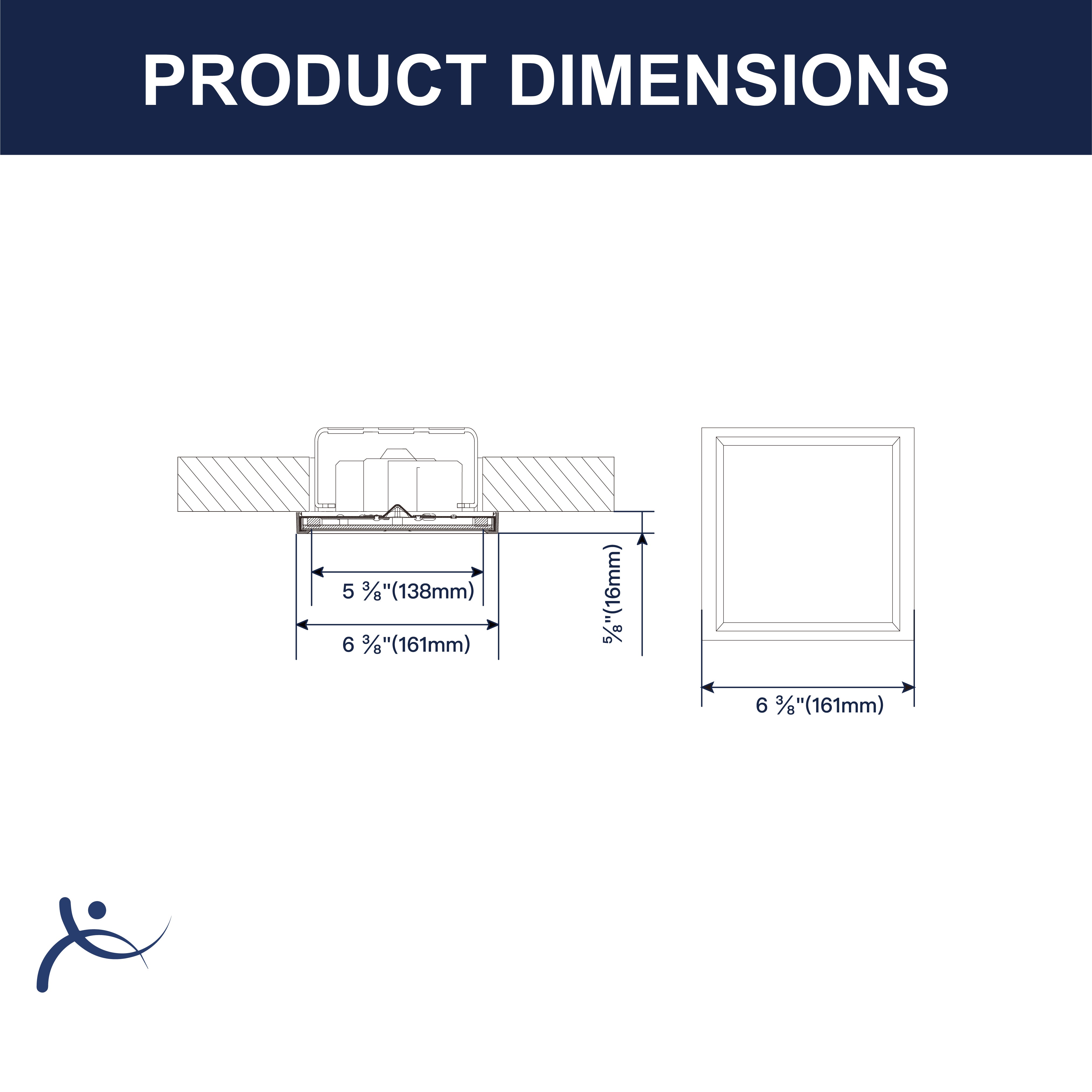

  • DIMENSION 6.2" x 6.2" x 1.25"
    7.3" x 7.3" x 1.1"
  • WEIGHT 2.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-TH-DL-4
    ML-TH-DL-6
  • Model No.
  • ML-TH-Edgelit DL-6S
  • Wattage
  • 15W
  • CCT
  • Single CCT or multi CCT (2700K/3000K/3500K/4000L/5000K)
  • Single CCT or multi CCT (2700K/3000K/3500K/4000L/5000K)
  • Lumens
  • 1050 lms

ML-TH-Edgelit DL-6S
