ML-DL-PC Series- 10 Inches

ML-DL-PC Series- 10 Inches

Professional Grade-Commercial Downlight Series

  • certifications
  • certifications
  • certifications

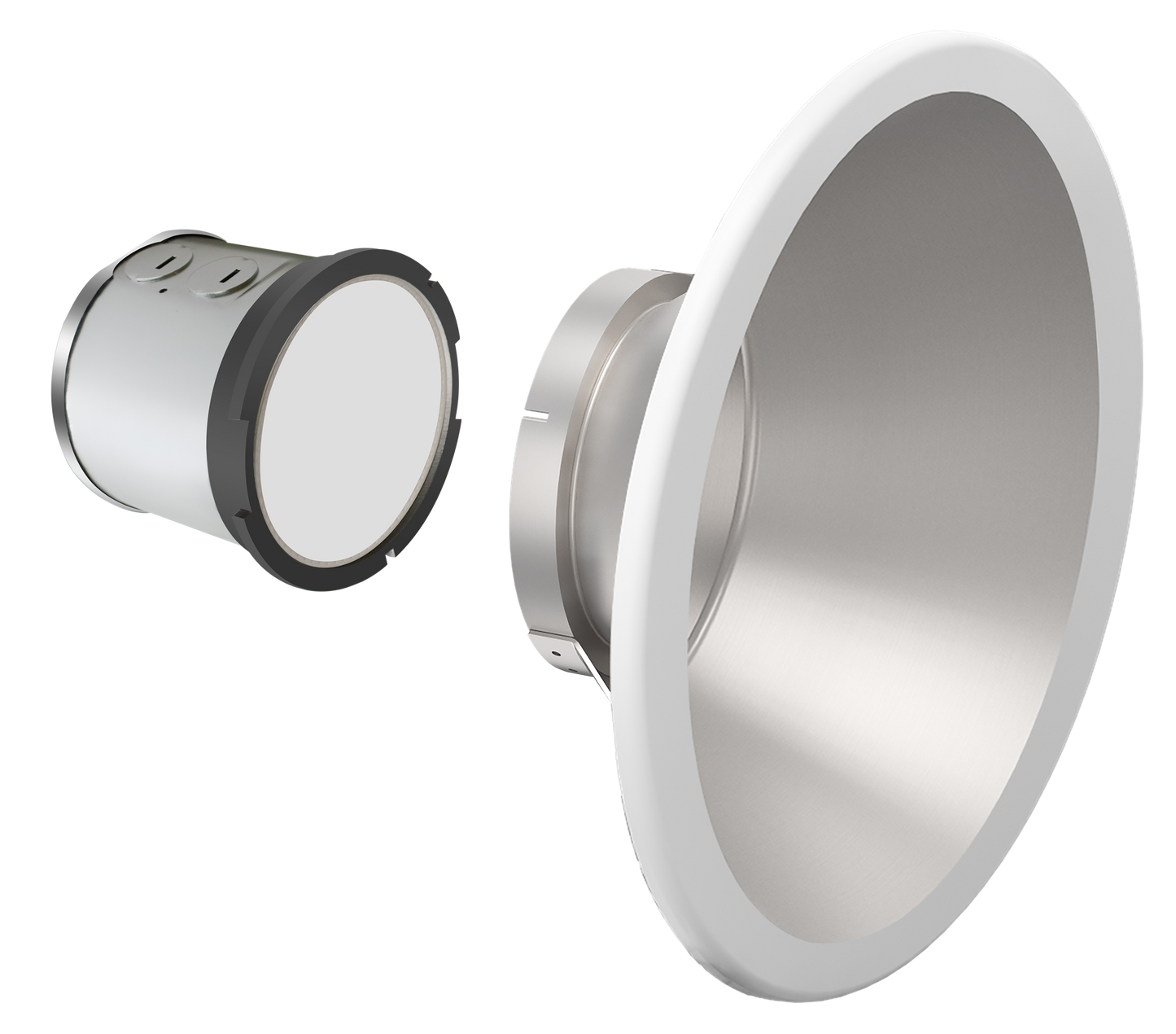

Marathon Lighting professional-grade commercial downlight series is a jack of all trades.  The innovative design with cler separation of the light engineer and the trims allow for a range of combinations.  With various trims such as round and square trims to roud wall wash and square wal wash trims available, this downlight series is availabe in 4 inch, 6 inch, 8 inch, and 10 inch.

With a remarkable lifespan of 50,000 hours, it ensures long-lasting, high-quality illumination. The stainless steel spring clips make installation into ceilings effortless, while conveniently placed color and wattage dip switches on

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

  • 10 Inch Professional Grade Commercial Downlight
  • 3 Power selectable: High/Medium/Low
  • High efficiency: 80-90LM/W
  • Compatible with most major brands of dimmers
  • 3000K/3500K/4000K Color Output
  • IC and airtight rated
  • UL Listed
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 40/34/27W
    60/50/40W
  • LUMENS 3200/2890/2430 lms
    6180/5300/4360 lms
  • EFFICANCY 80-90 LM/W
    103-109 LM/W
  • RATED LIFE >50,000hrs
  • CERTIFICATION UL
  • CRI >80
  • AVAILABLE CCT 3000K/3500K/4000K
    3000K/4000K/5000K
  • DIMENSION 5.52" x 5.52" x5.43"
  • WEIGHT 3.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-DL-PC-6-D-20WT-3354K
    ML-DL-PC-6-D-20WT-345K
    ML-DL-PC-6-D-40WT-345K

Download

  • Model No.
  • ML-DL-PC-10-D-40WT-3354K
  • ML-DL-PC-10-D-60WT-3354K
  • Wattage
  • 40/34/27W
  • 60/50/40W
  • CCT
  • 3000K/3500K/4000K
  • 3000K/3500K/4000K
  • Lumens
  • 3200/2890/2430 lms
  • 6180/5300/4360 lms

ML-DL-PC-10-D-40WT-3354K

ML-DL-PC-10-D-60WT-3354K
