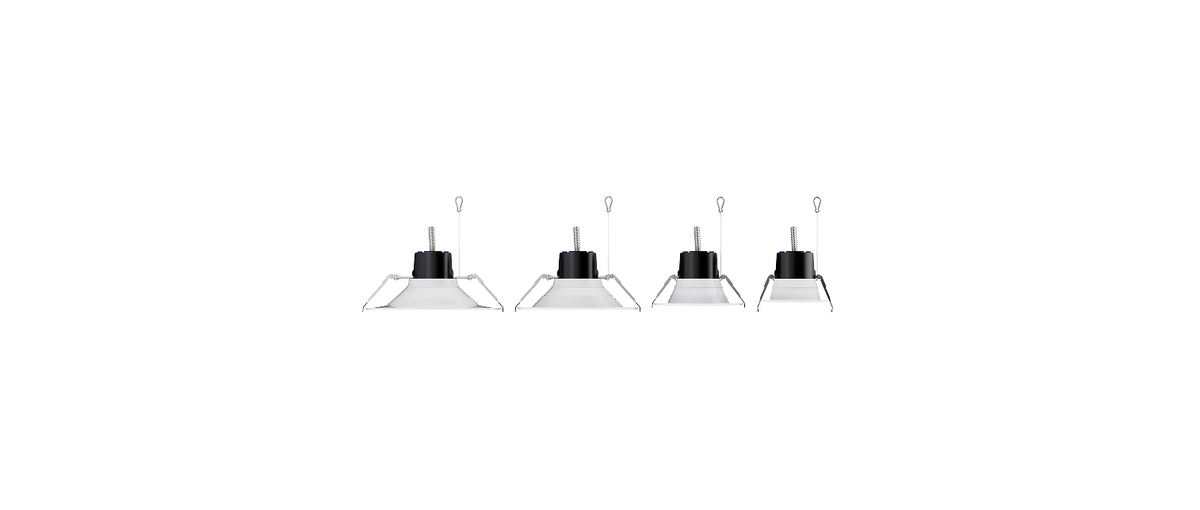

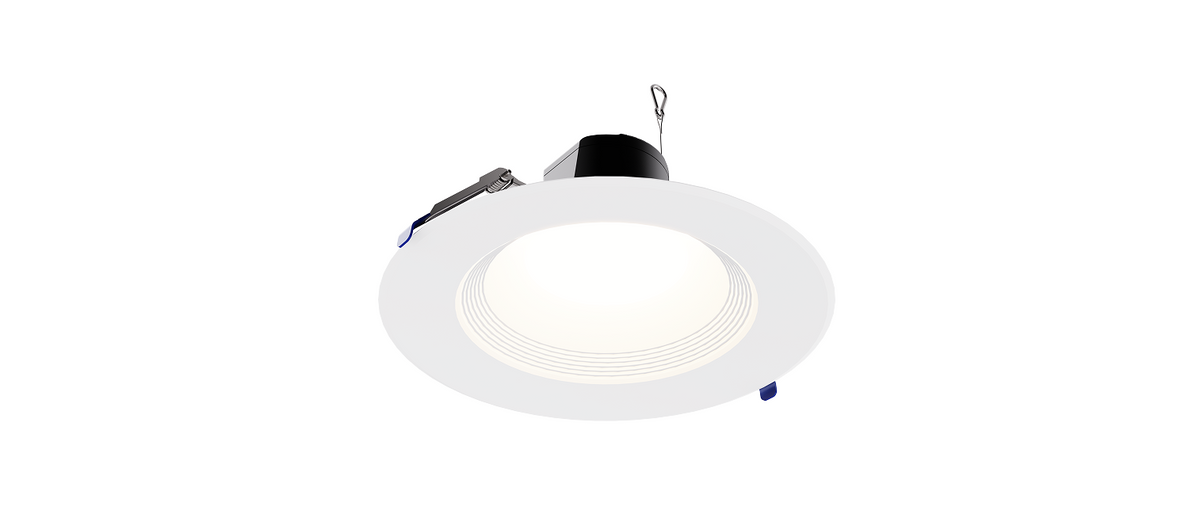

ML-DL-C Series

ML-DL-C Series

Commercial Downlight Series

  • certifications
  • certifications
  • certifications

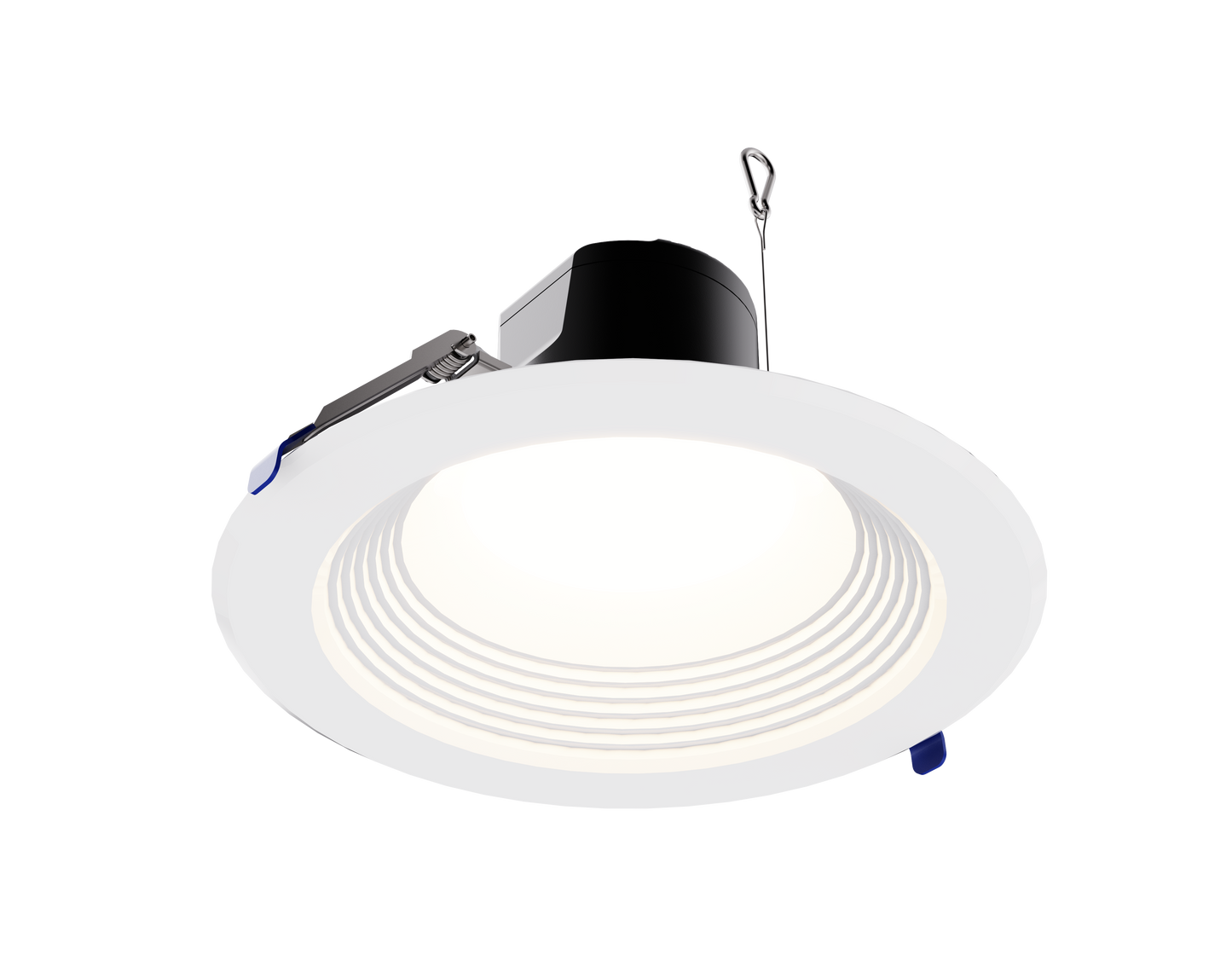

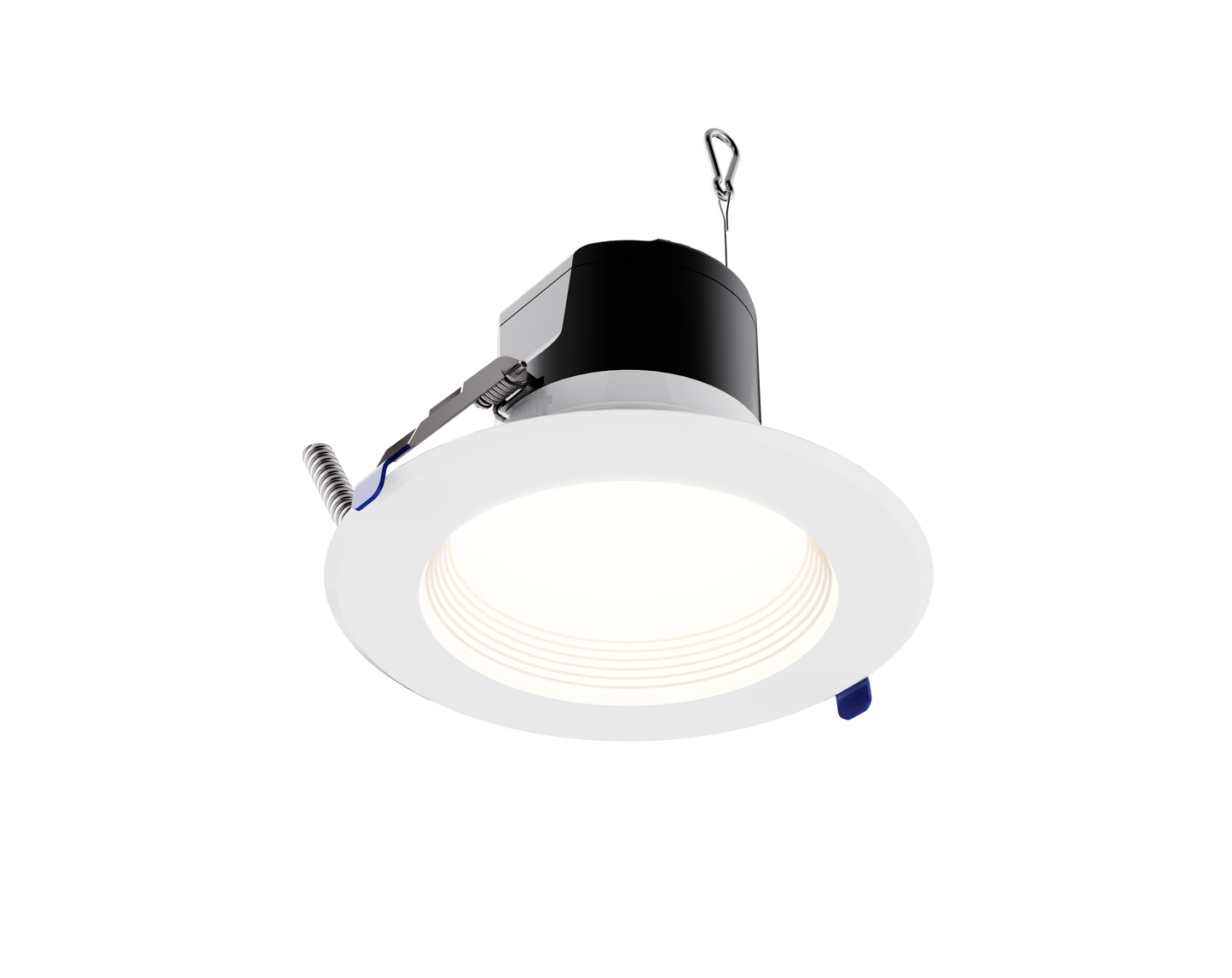

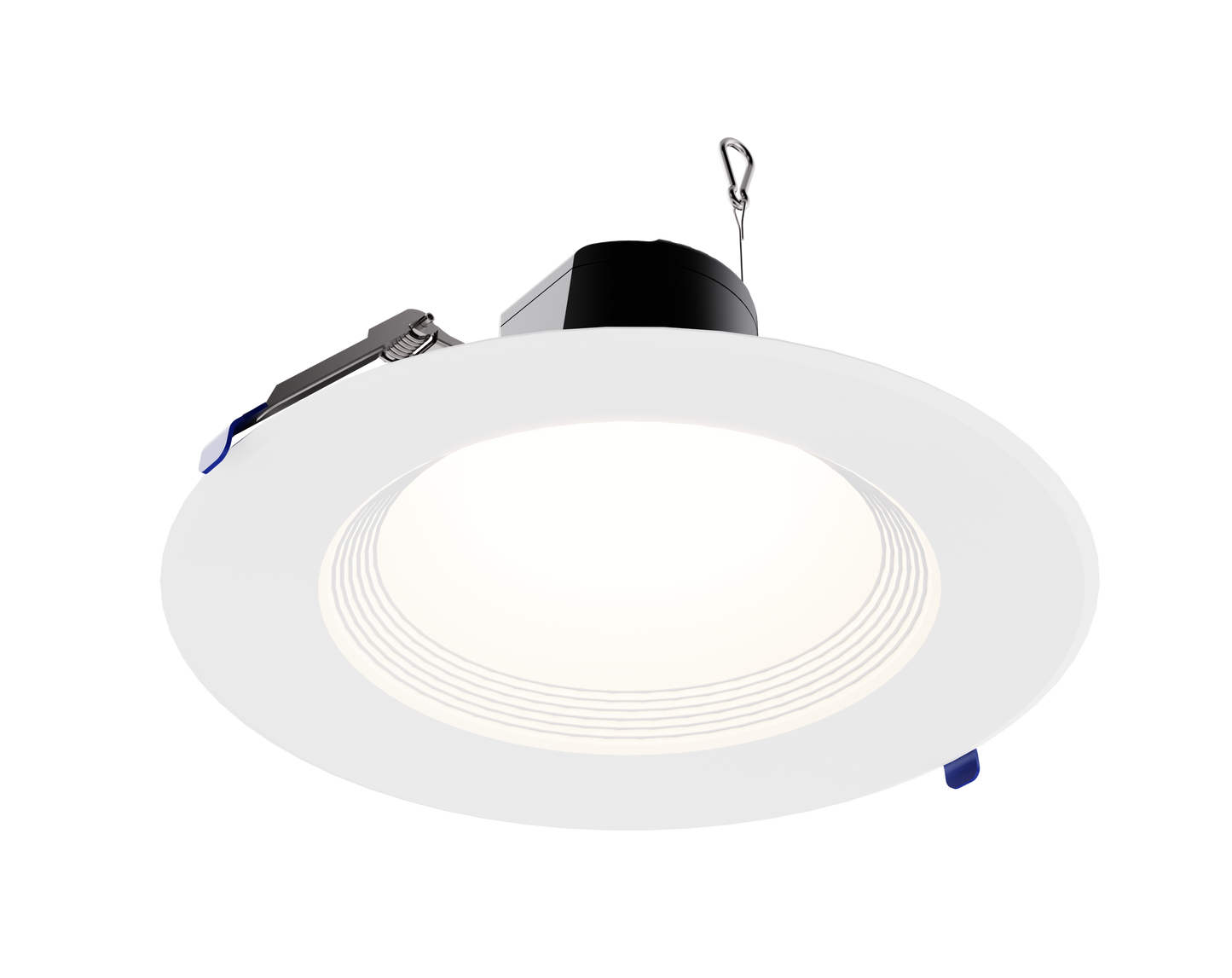

Our integrated downlight combines everything you need in one sleek, easy-to-use fixture. Designed for both commercial and residential spaces, this unique downlight offers the perfect blend of innovation and versatility.

With a remarkable lifespan of 50,000 hours, it ensures long-lasting, high-quality illumination. The stainless steel spring clips make installation into ceilings effortless, while conveniently placed color and wattage dip switches on the bottom offer quick adjustments to fit your lighting needs.

Whether you're upgrading your home or outfitting a commercial space, our downlight is the universal solution for modern, efficient lighting.

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

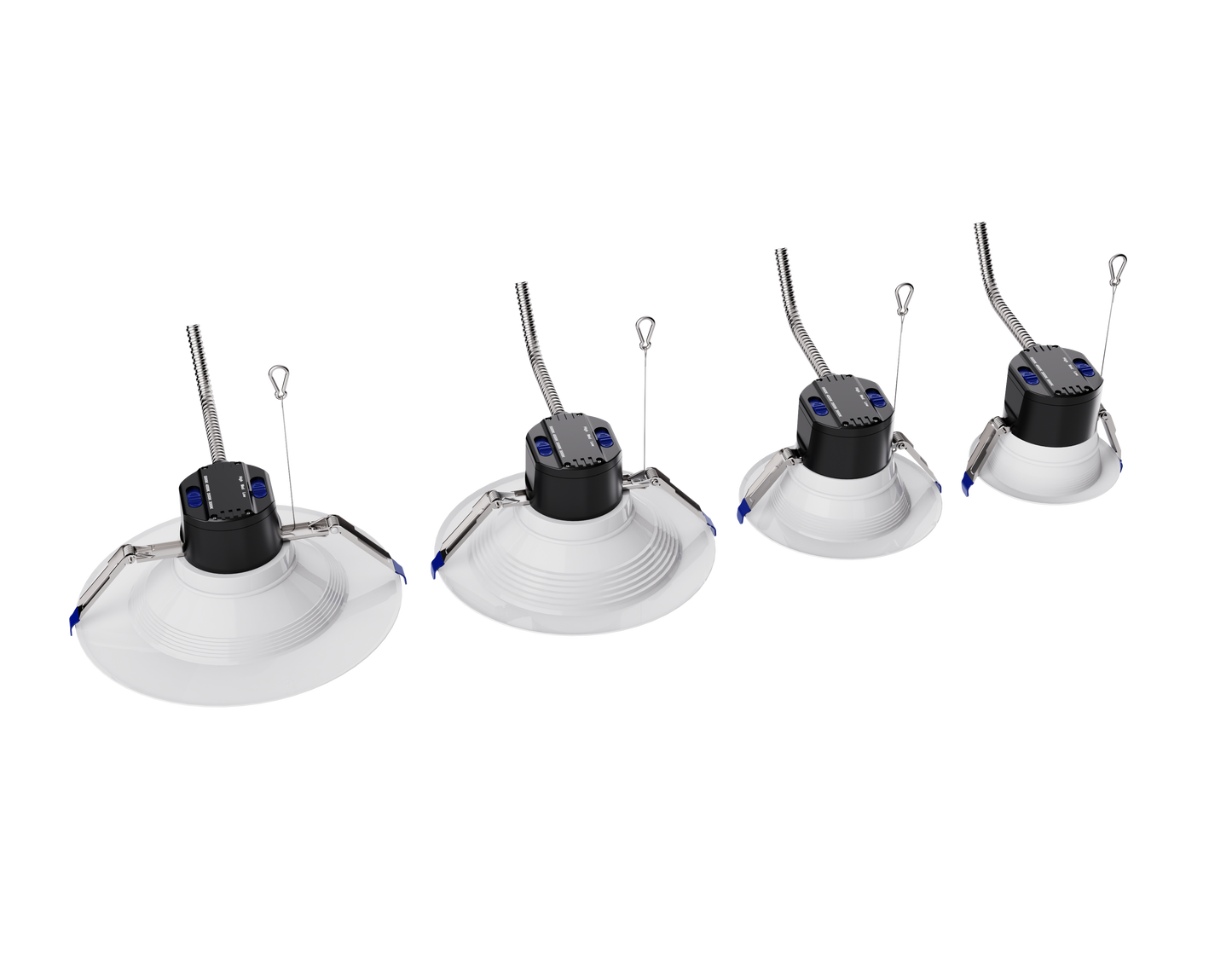

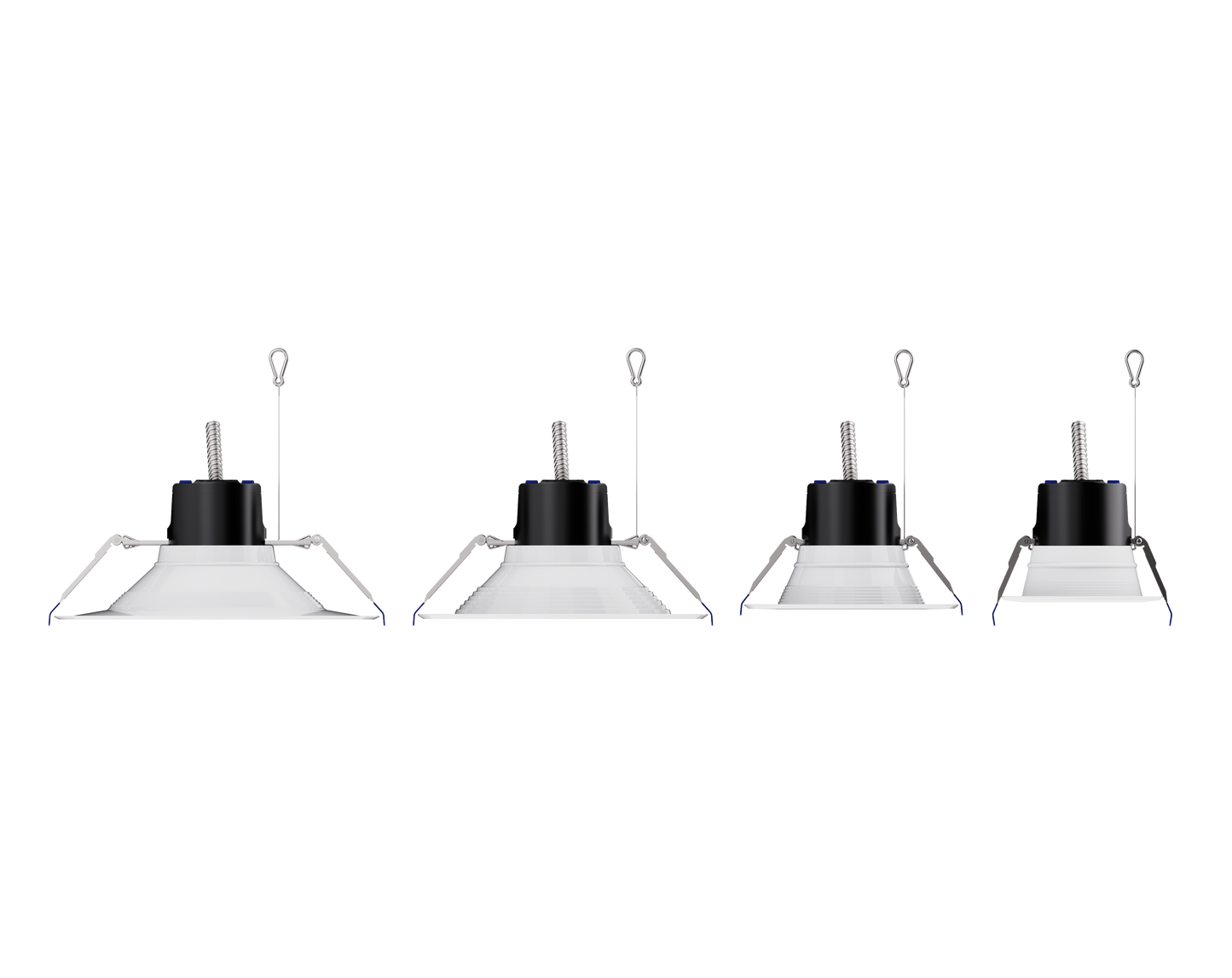

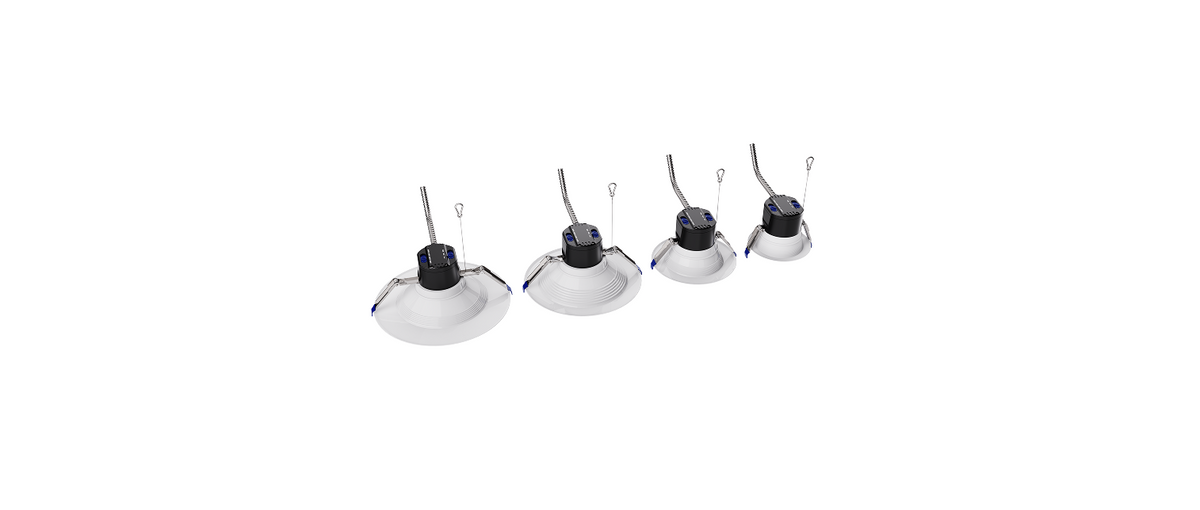

  • Multiple size: 4/6/8inch
  • 3 Power selectable: High/Medium/Low
  • High efficiency: 110LM/W
  • Compatible with most major brands of dimmers
  • 2700K/3000K/3500K/4000K/5000K Color Output
  • IC and airtight rated
  • ETL Listed Wet Location
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 18/13/9W
    27/19/13W
    36/27/18W
  • LUMENS 2000/1500/1000 lms
    3000/2100/1500 lms
    4000/3000/2000 lms
  • EFFICANCY 110 LM/W
  • RATED LIFE >50,000hrs
  • CERTIFICATION ETL
  • CRI >90
  • AVAILABLE CCT 2700K/3000K/3500K/4000K/5000K

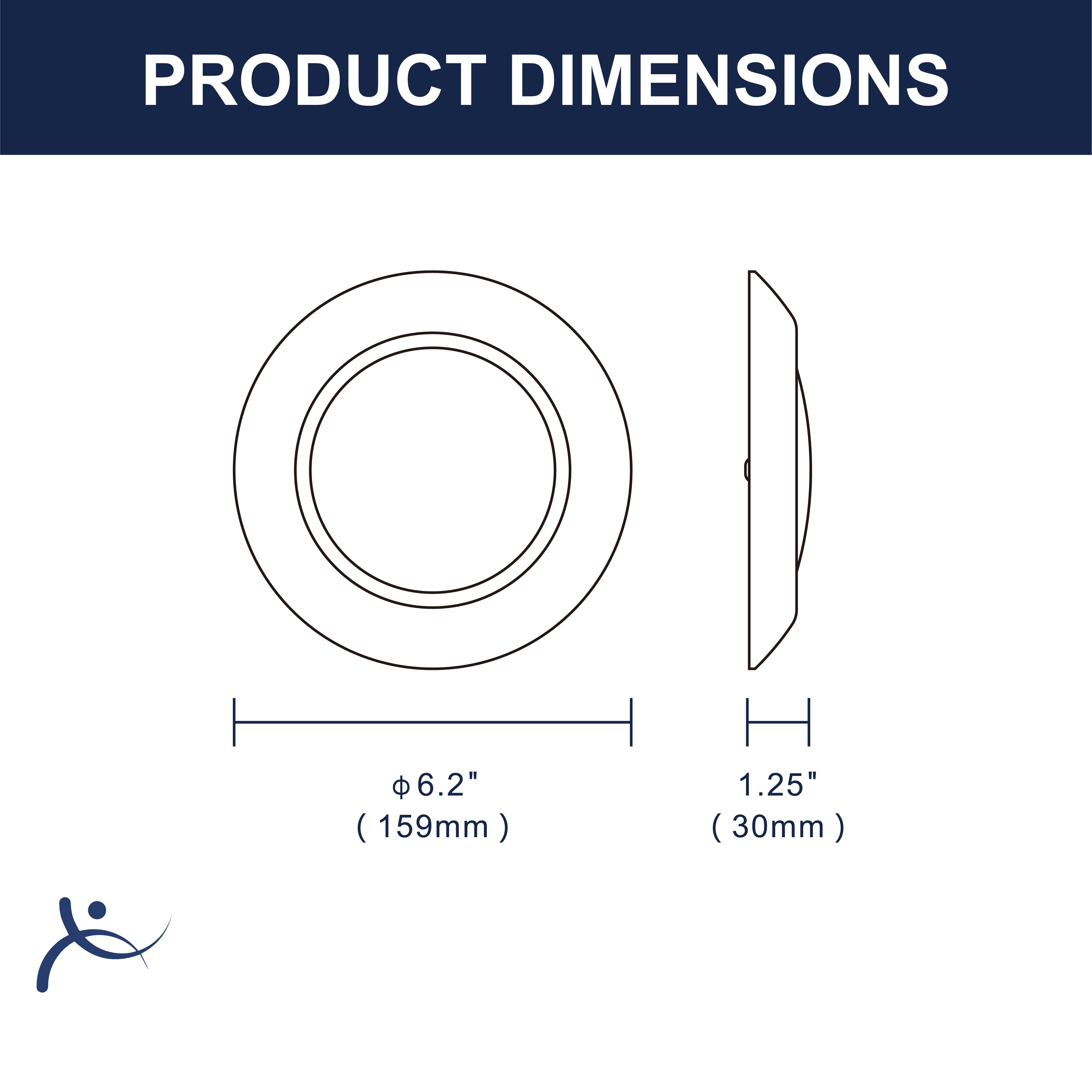

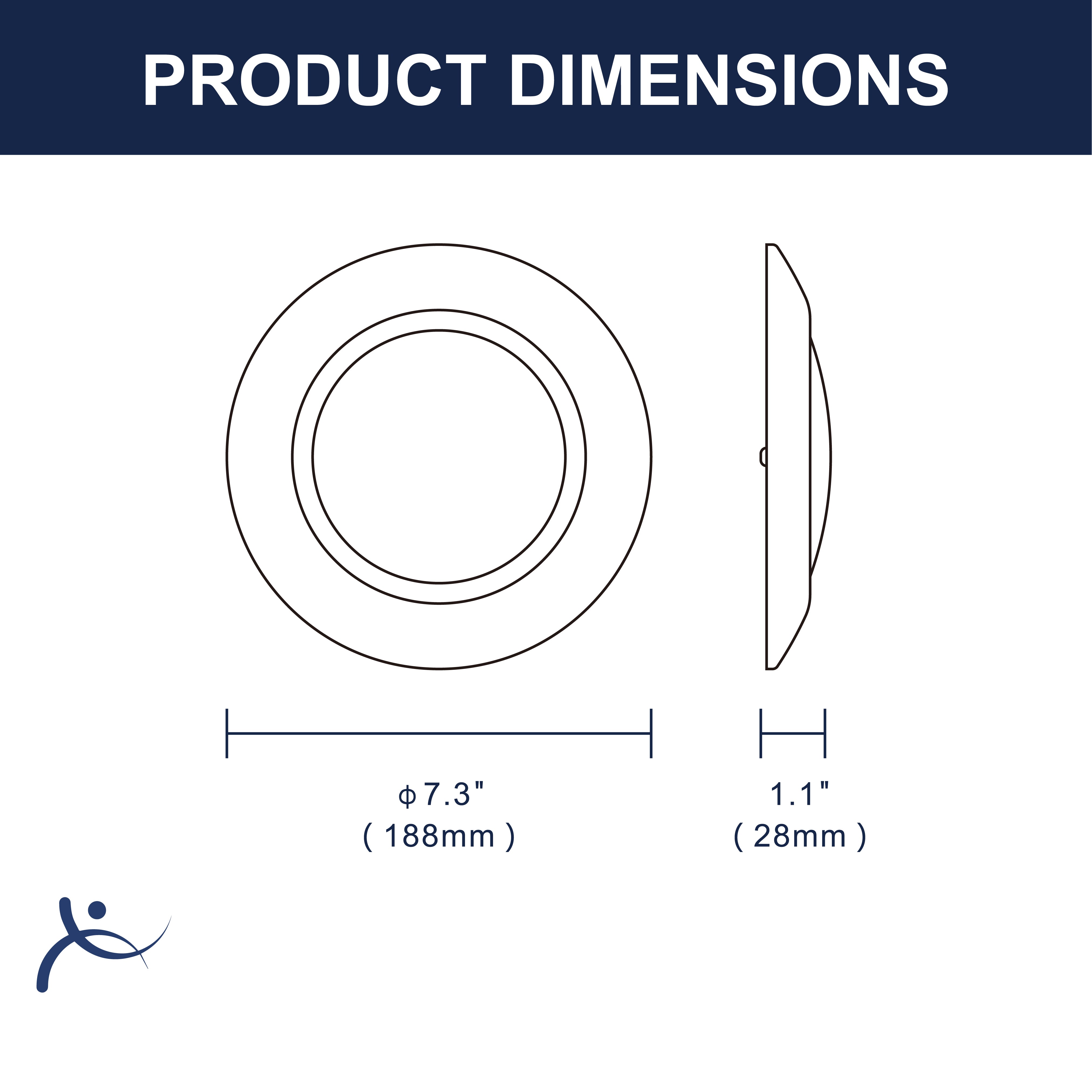

  • DIMENSION 5.91" x 5.91" x 4.02"
    8.27" x 8.27" x 4.41"
    10.24" x 10.24" x 4.76"
  • WEIGHT 2.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-DL-4C-18WT-5CCT-UV
    ML-DL-6C-27WT-5CCT-UV
    ML-DL-8C-36WT-5CCT-UV

Download

  • Model No.
  • ML-DL-4C-18WT-5CCT-UV
  • ML-DL-6C-27WT-5CCT-UV
  • ML-DL-8C-36WT-5CCT-UV
  • Wattage
  • 18/13/9W
  • 27/19/13W
  • 36/27/18W
  • CCT
  • 2700K/3000K/3500K/4000L/5000K
  • 2700K/3000K/3500K/4000L/5000K
  • 2700K/3000K/3500K/4000L/5000K
  • Lumens
  • 2000/1500/1000 lms
  • 3000/2100/1500 lms
  • 4000/3000/2000 lms

ML-DL-4C-18WT-5CCT-UV

ML-DL-6C-27WT-5CCT-UV

ML-DL-8C-36WT-5CCT-UV
