ML-PT-5760/5761 Series

ML-PT-5760/5761 Series

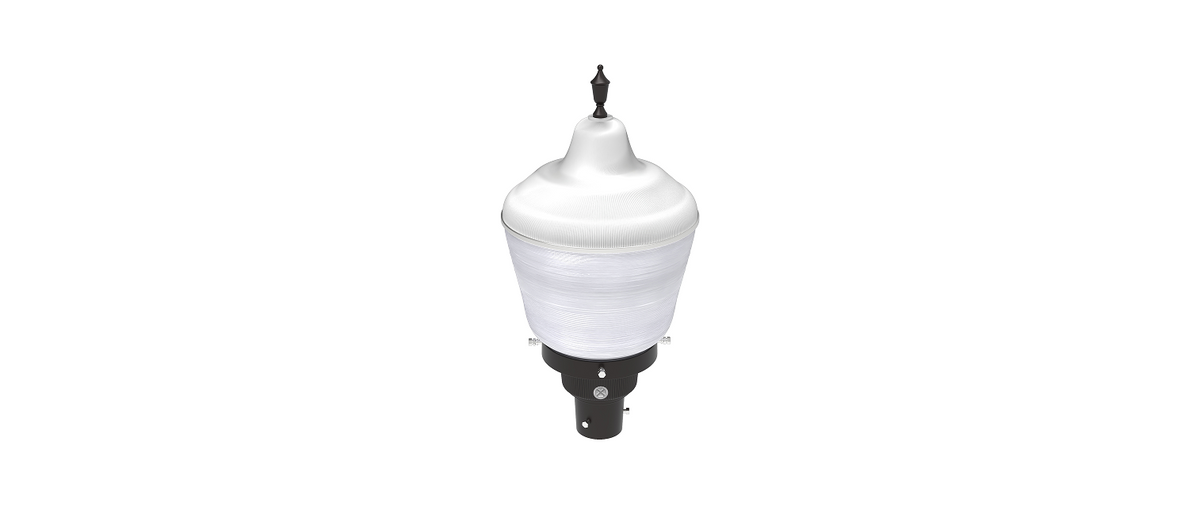

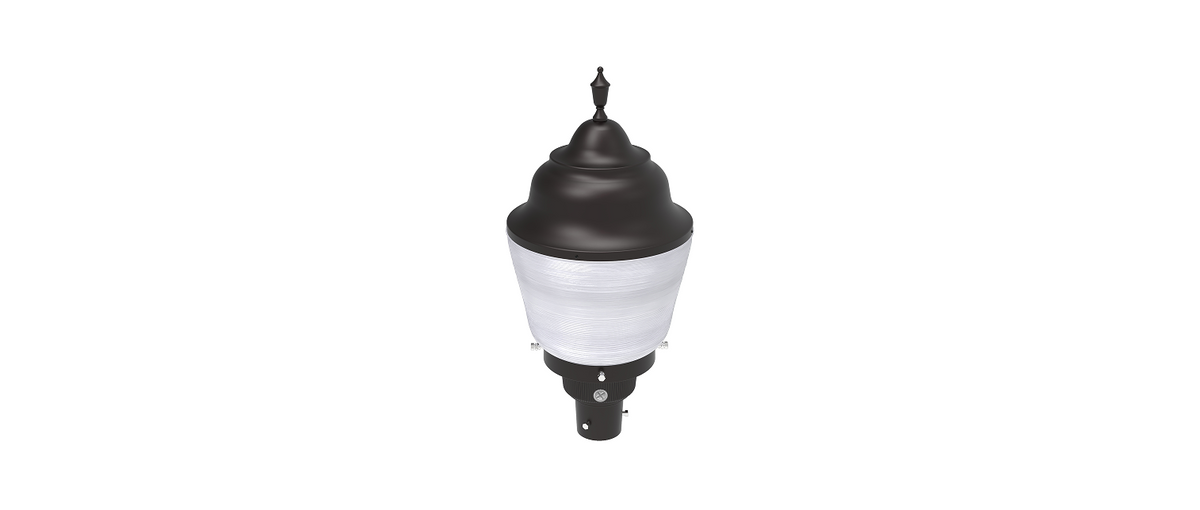

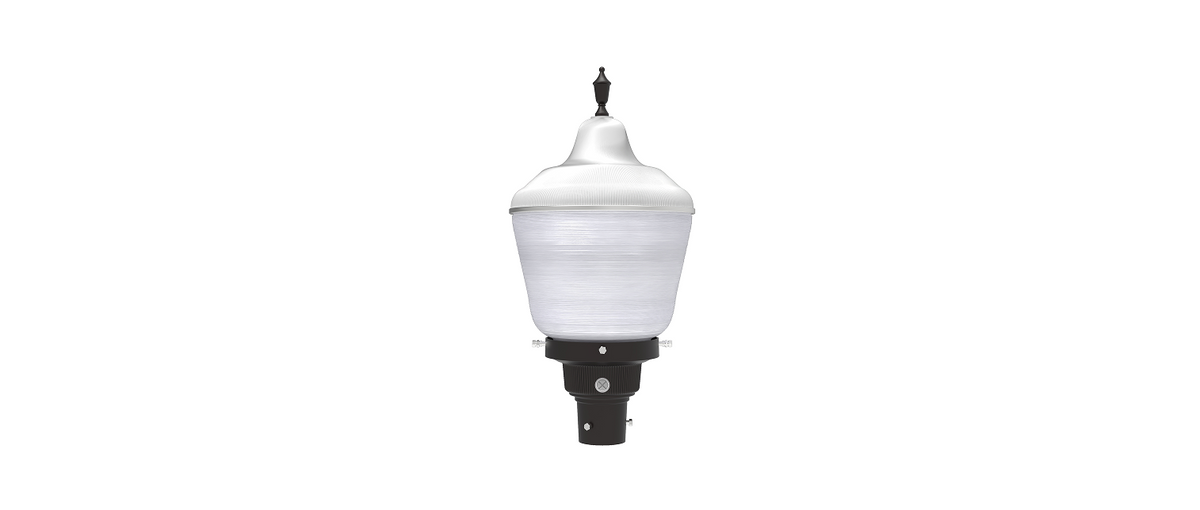

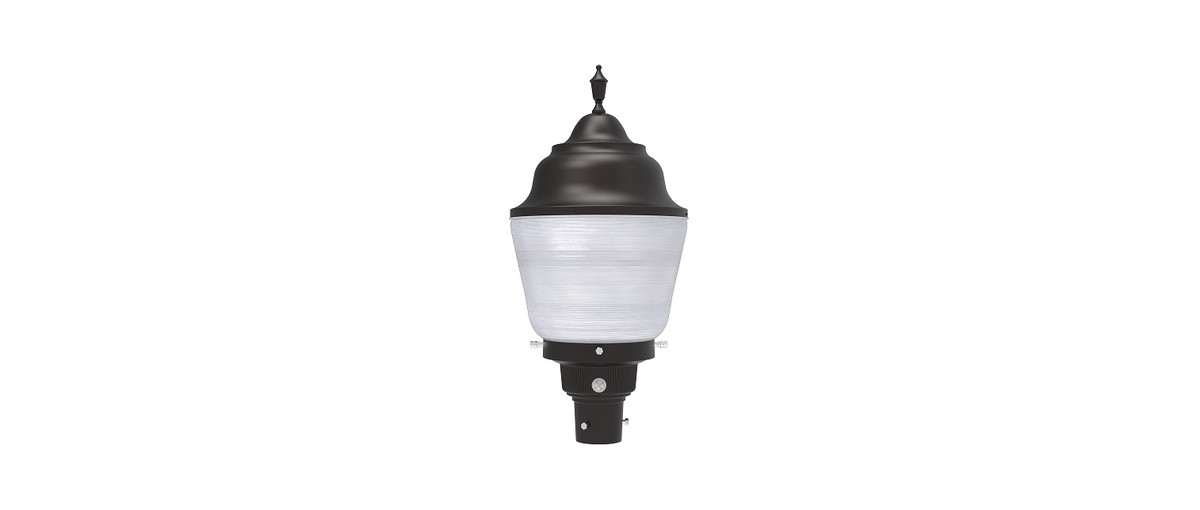

LED Post Top with CCT and Wattage Selectable with Photocell Option

  • certifications
  • certifications

Replaces 250-watt high intensity discharge (HID). 150-watt LED Post Top Light with 21120 delivered lumens and 80-watt LED Post Top Light with 10400 Lumens. 3000K/4000K/5000K, dark bronze, Wattage Selectable, UL Listed, 5-year limited warranty

View full details

Applications:

  • Post Top Light, Industrial Site Lighting

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 150W metal-halide light、
  • 6300 Lumens Max Lumens at 70W
  • 9832 Lumens Max Lumens at 70W
  • Black aluminum housing
  • Input Power of 70 Watts/ 50 Watts/ 20 Watts
  • 3000K/4000K/5000K Color Output
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 70W/50W/30W
    70W/50W/30W
  • LUMENS 6300lms
    9832lms
  • EFFICANCY 90LM/W
    143LM/W
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations
  • EQUAL TO 150W
  • CRI >70
  • AVAILABLE CCT 3000/4000/5000K
  • IP RATING IP65

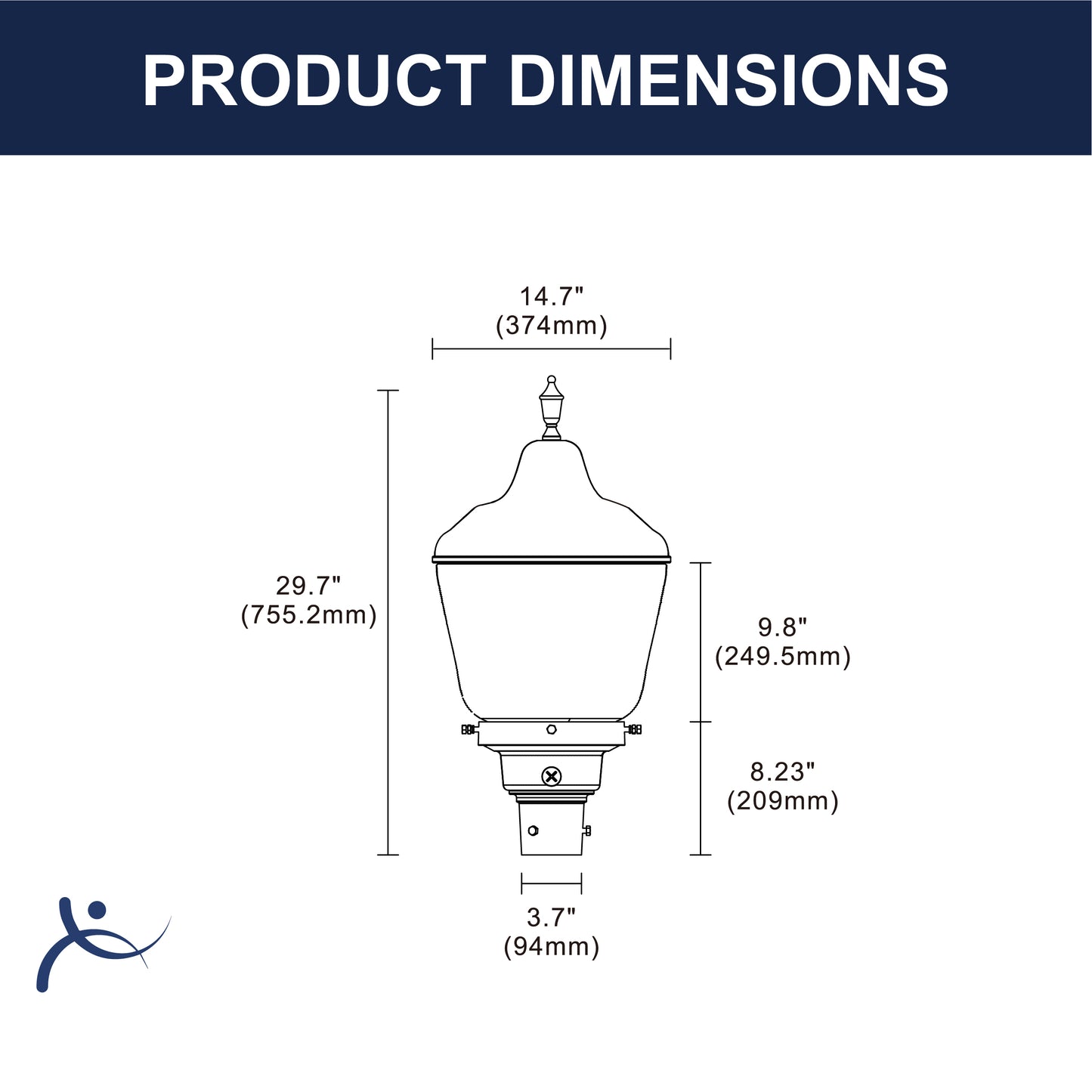

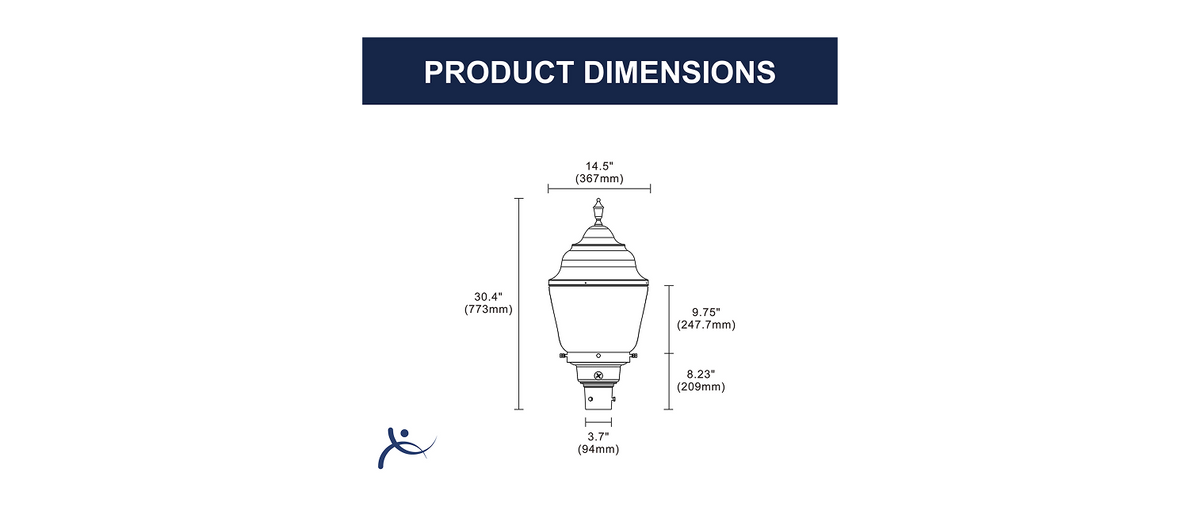

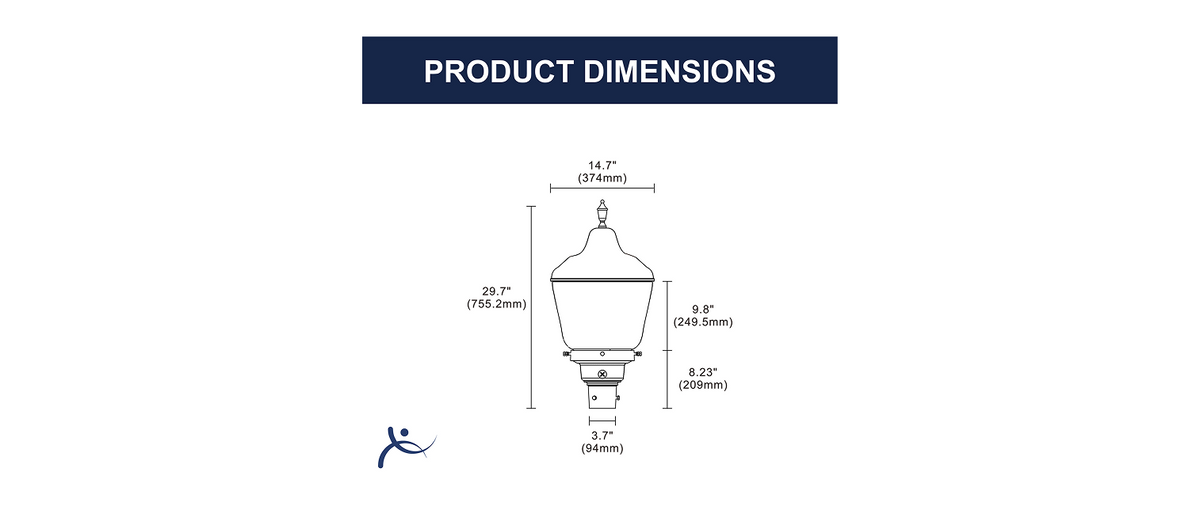

  • DIMENSION 14.5"x174.5"x30"
  • WEIGHT lbs
  • MODEL NUMBER ML-PT-11783-150WT-345K-UV
    ML-PT-11783-80WT-345K-UV

Download

  • Model No.
  • ML-PT-5760-70WT-345K-UV
  • ML-PT-5761-70WT-345K-UV
  • Wattage
  • 70W/50W/30W
  • 70W/50W/30W
  • CCT
  • 3K/4K/5K
  • 3K/4K/5K
  • Lumens
  • 6300lms
  • 9832lms

ML-PT-5760-70WT-345K-UV

ML-PT-5761-70WT-345K-UV
