ML-ALP-4/8 Series

ML-ALP-4/8 Series

LED Linear Pendant

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

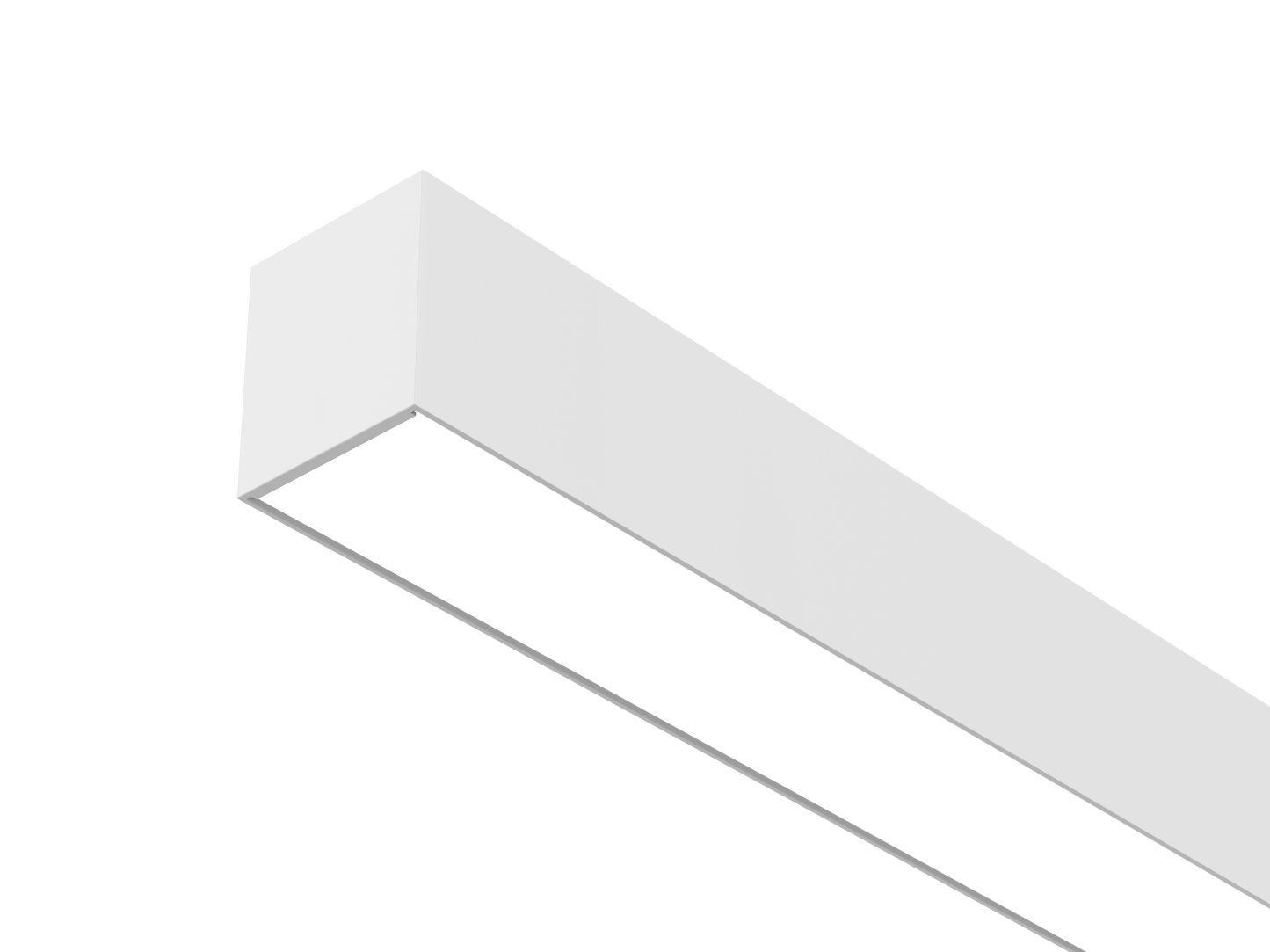

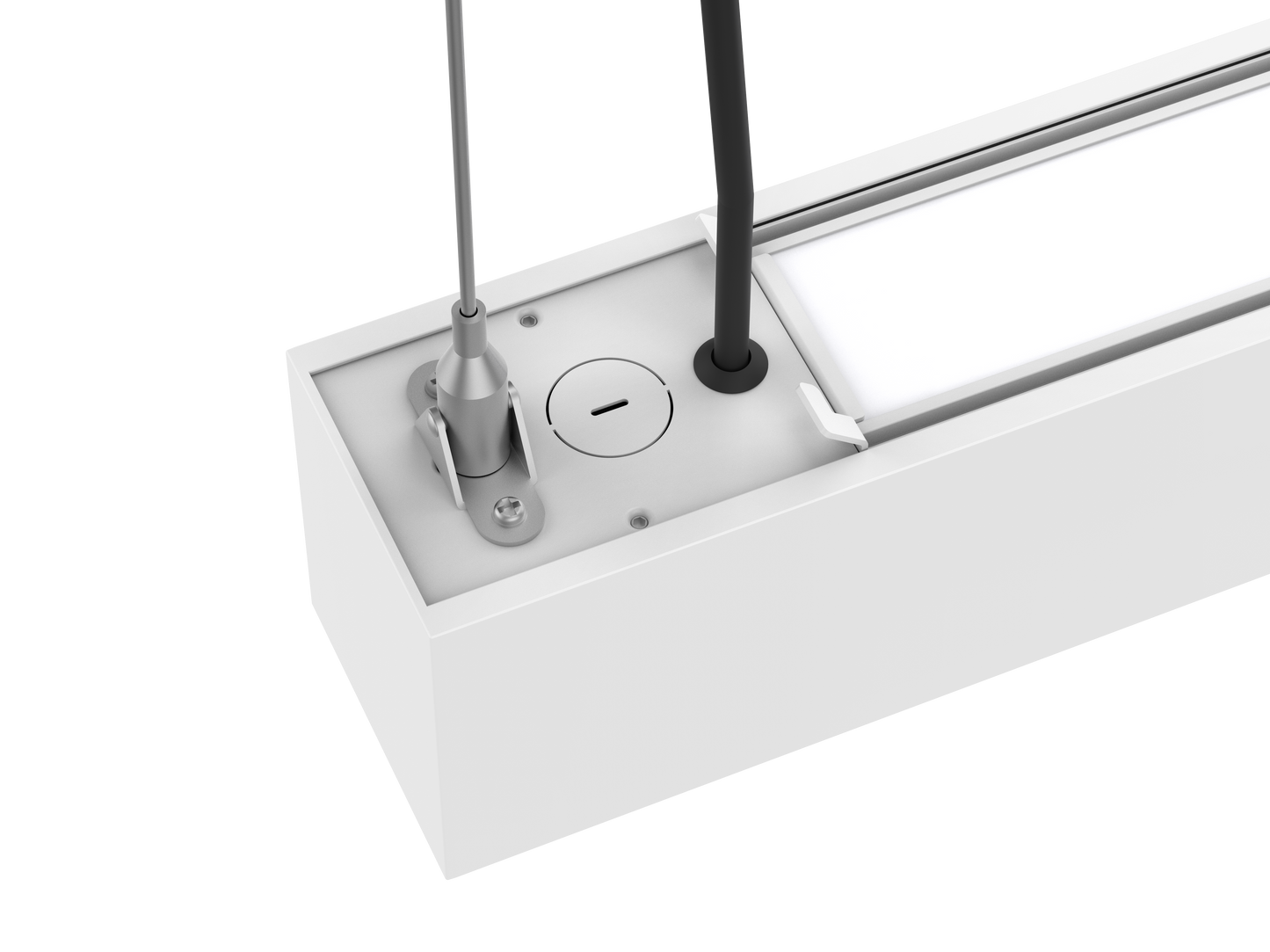

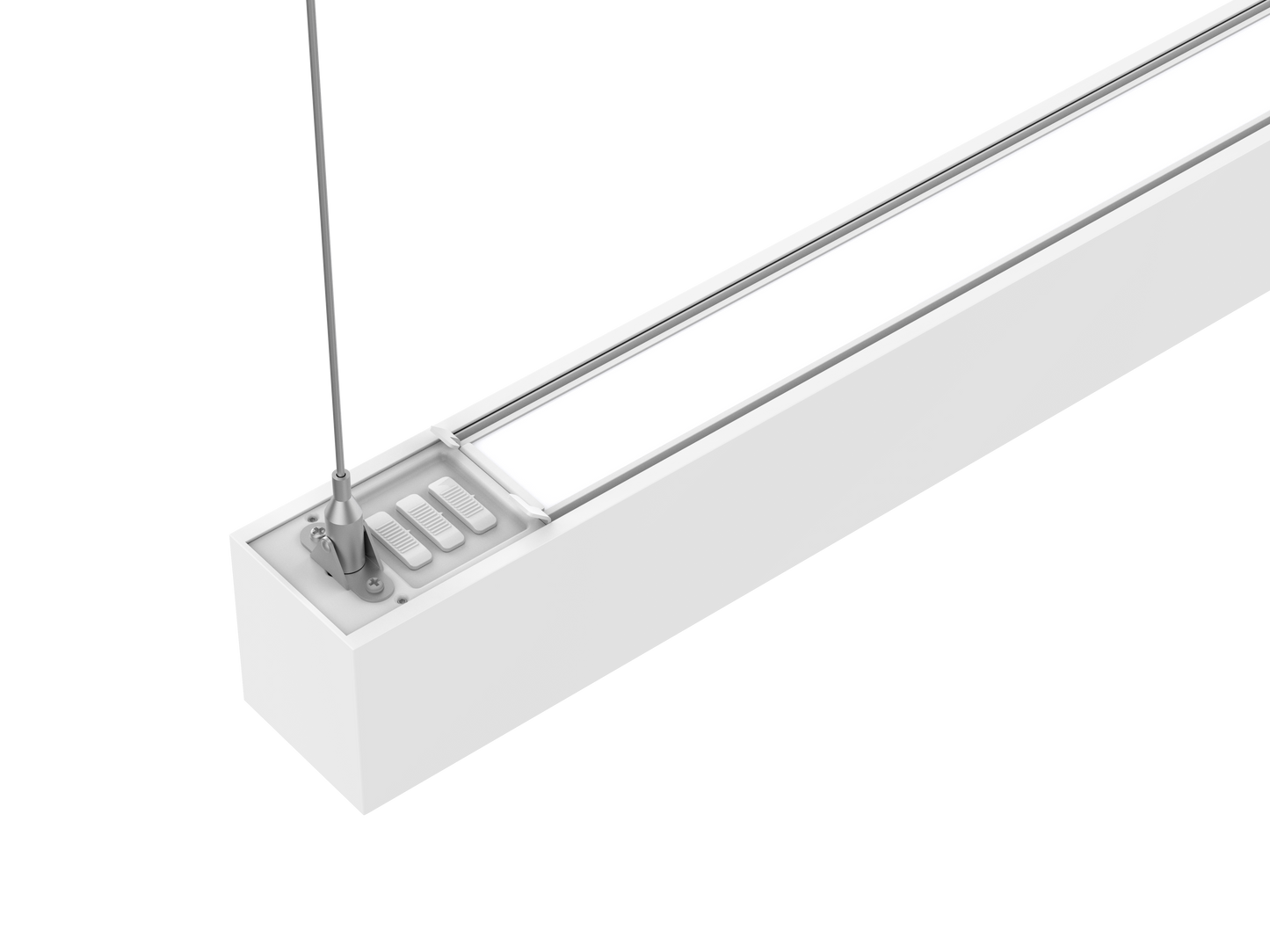

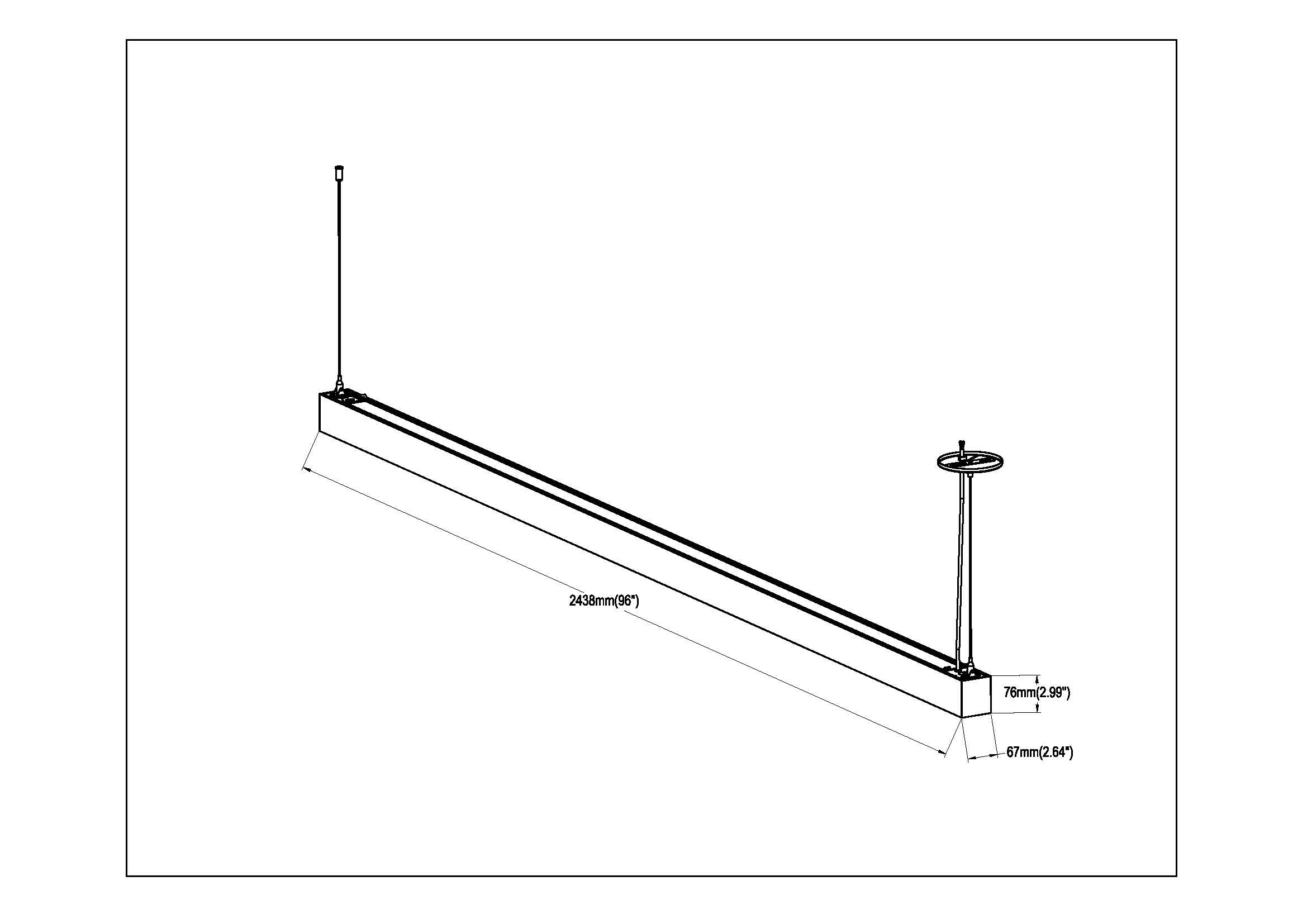

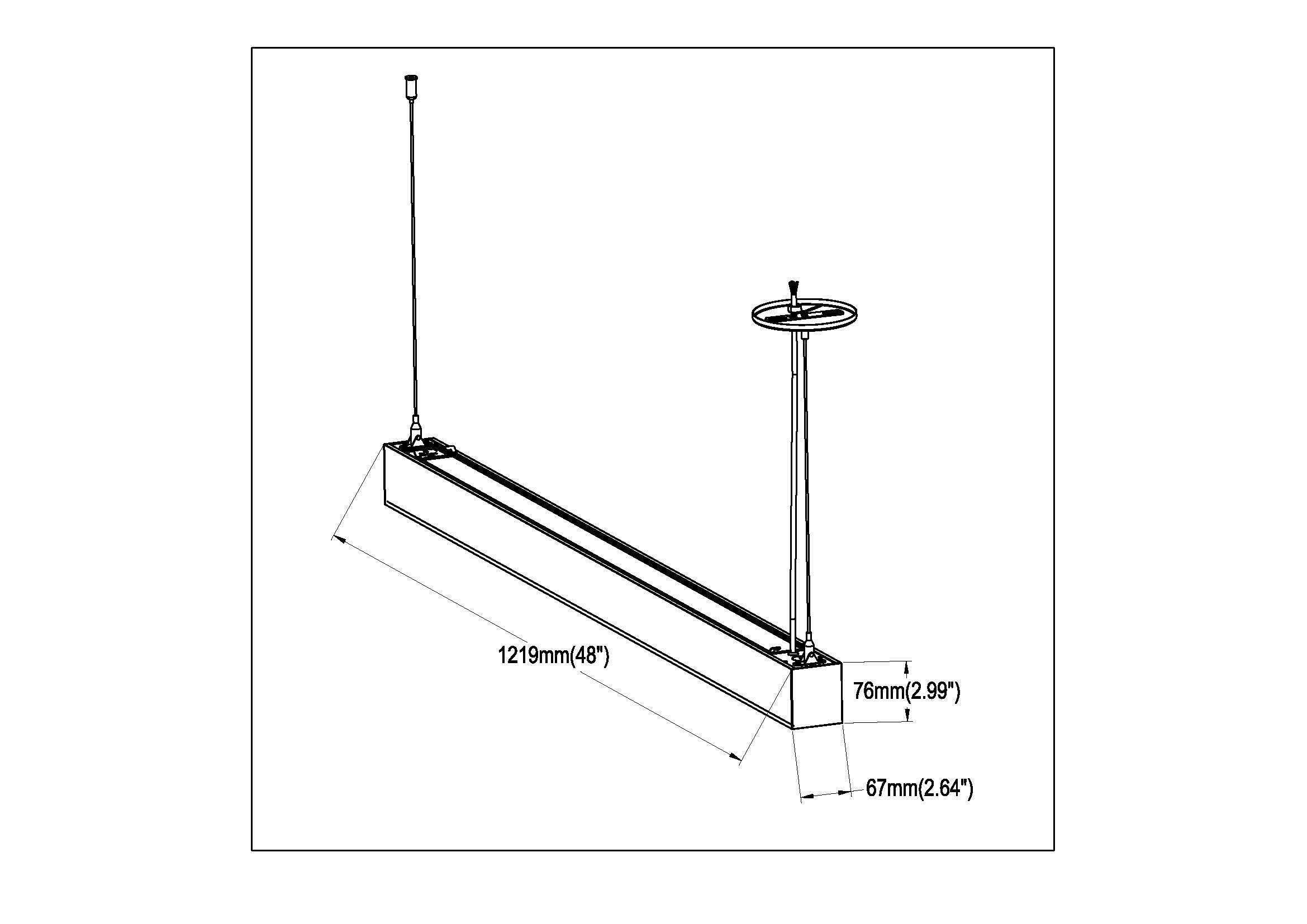

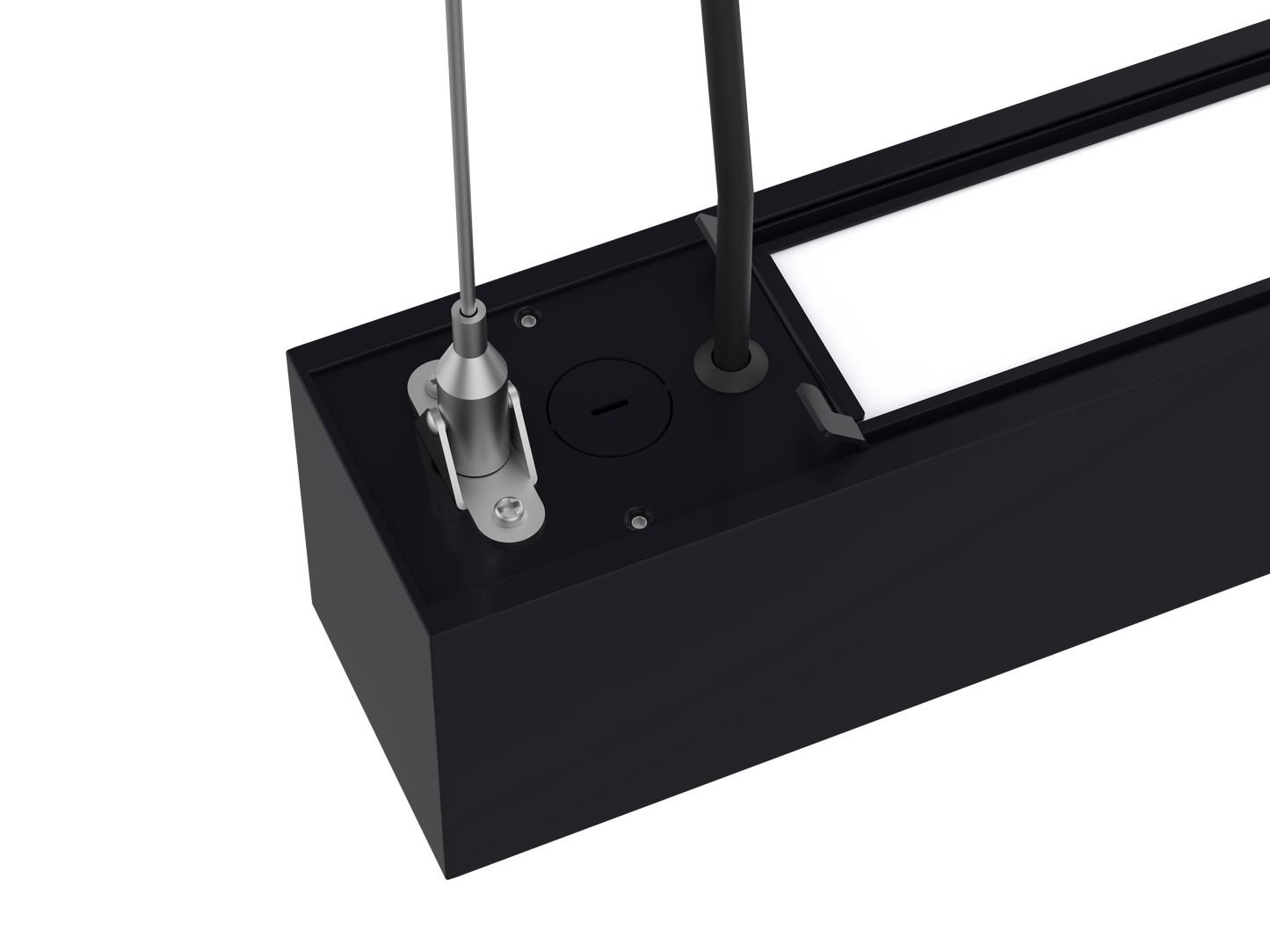

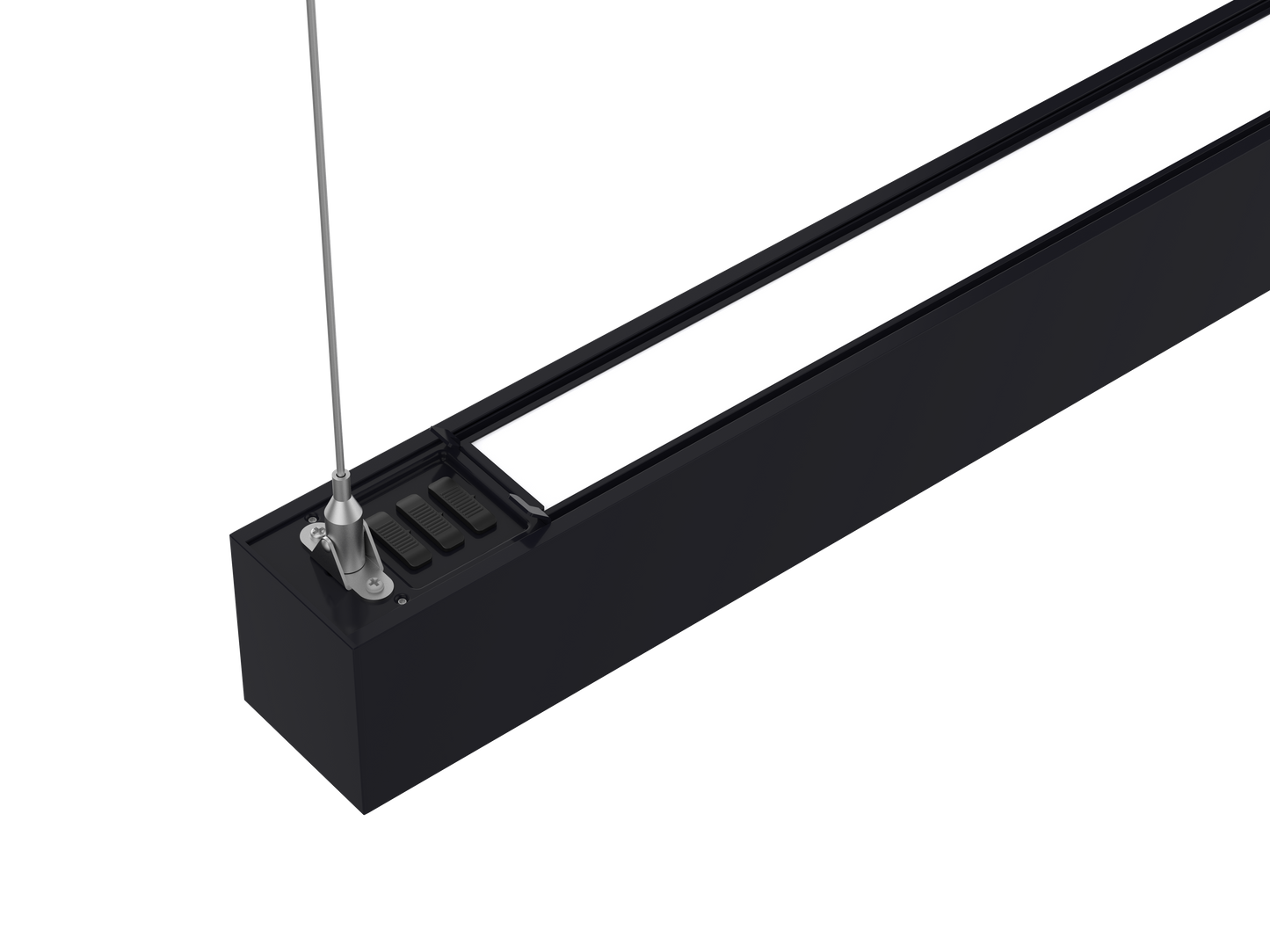

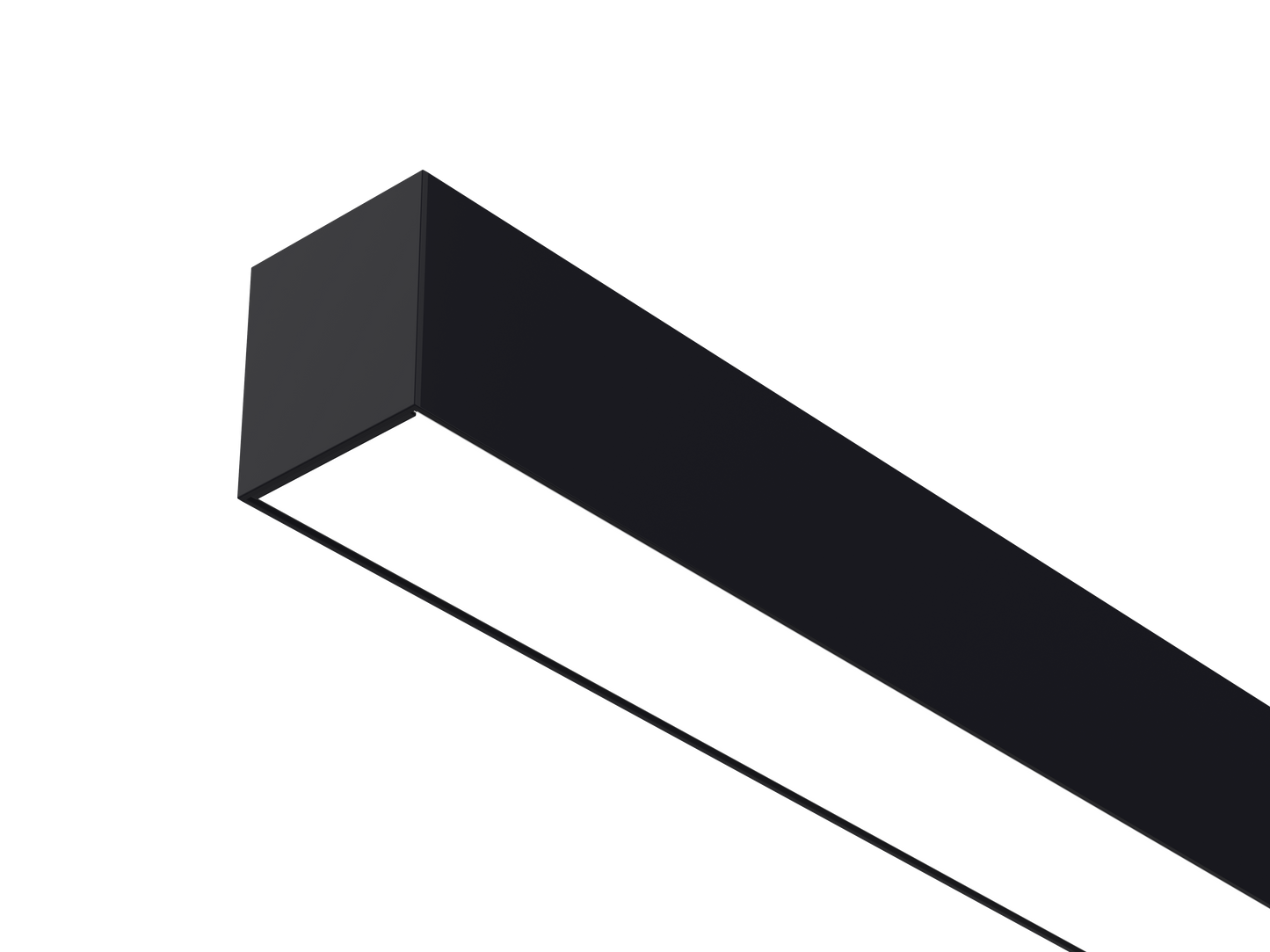

ML-ALP series is a LED pendant light with both direct and indirect lighting, which is designed for commercial and residential lighting interiors, available in lengths 4ft and 8ft can be continuous seamless runs to any length. The fixture also offers either 5 wattages and 5CCT adjustable or individual 3 CCT switch for both up and down light that controlled separately.

View full details

LISTING:
UL and cUL listed, DLC Premium. FCC


HOUSING:
Housing made of high quality steel with high reflectance paint, providing high lumen output.


AMBIENT TEMPERATURE:

Suitable for use in -4°F to +113°F


ELECTRICAL:
Precision and high reflectance lens producing superior uniformity
Voltage: 120-277V standard;50/60Hz; 2.5KV - Surge.


EFFICACY:
Up to 125 lumens per watt (see individual wattage data)


CCT AND CRI:
3000K, 3500K, 4000K ,5000K,6500K CCT available, 80CRI
Dimming 0-10V driver Standard. Occupancy sensor (PIR) optional.


FINISHES:
Aluminim 6063 housing with polycarbonate frosted lens.

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 50W/40W/35W/30W/25W
    80W/60W/50W/40W/24W
  • LUMENS 6250 lms
    10000 lms
  • EFFICACY 128LM/W
    120LM/W
  • OPERATING TEMPERATURE -4 °F to 113°F
  • CERTIFICATION UL/cUL, DLC Premium, FCC
  • EQUAL TO Metal Halide 150W
    Metal Halide 250W
  • CRI 80
  • AVAILABLE CCT 3000K/4000K/5000K
  • CERTIFICATION UL/cUL,DLC Premium, FCC
  • IP RATING IP54
  • COLOR White
  • MODEL NUMBER ML-WL-4-50WT-5CCT-UD-P-UV-BK/WH
    ML-WL-8-80WT-5CCT-UD-P-UV-BK/WH

Download

  • ML-WL-4-50WT-5CCT-UD-P-UV-BK/WH Spec Sheet ML-WL-8-80WT-5CCT-UD-P-UV-BK/WH Spec Sheet Installation Guide ML-ALP- 4/8 Series IES files
    Download File Download File
  • Model No.
  • ML-WL-4-50WT-5CCT-UD-P-UV-BK
  • ML-WL-4-50WT-5CCT-UD-P-UV-WH
  • ML-WL-8-80WT-5CCT-UD-P-UV-BK
  • ML-WL-8-80WT-5CCT-UD-P-UV-WH
  • Wattage
  • 50W/40W/35W/30W/25W
  • 80W/60W/50W/40W/24W
  • CCT
  • 3K/3.5K/4K/5K/6.5K
  • 3K/3.5K/4K/5K/6.5K
  • 3K/3.5K/4K/5K/6.5K
  • 3K/3.5K/4K/5K/6.5K
  • Lumens
  • 6250/5000/4375/3750/3125 lms
  • 6250/5000/4375/3750/3125 lms
  • 10000/7500/6250/5000/3000 lms
  • 10000/7500/6250/5000/3000 lms

ML-WL-4-50WT-5CCT-UD-P-UV-BK/WH

ML-WL-8-80WT-5CCT-UD-P-UV-BK/WH
