ML-EM-EL-1R-C

ML-EM-EL-1R-C

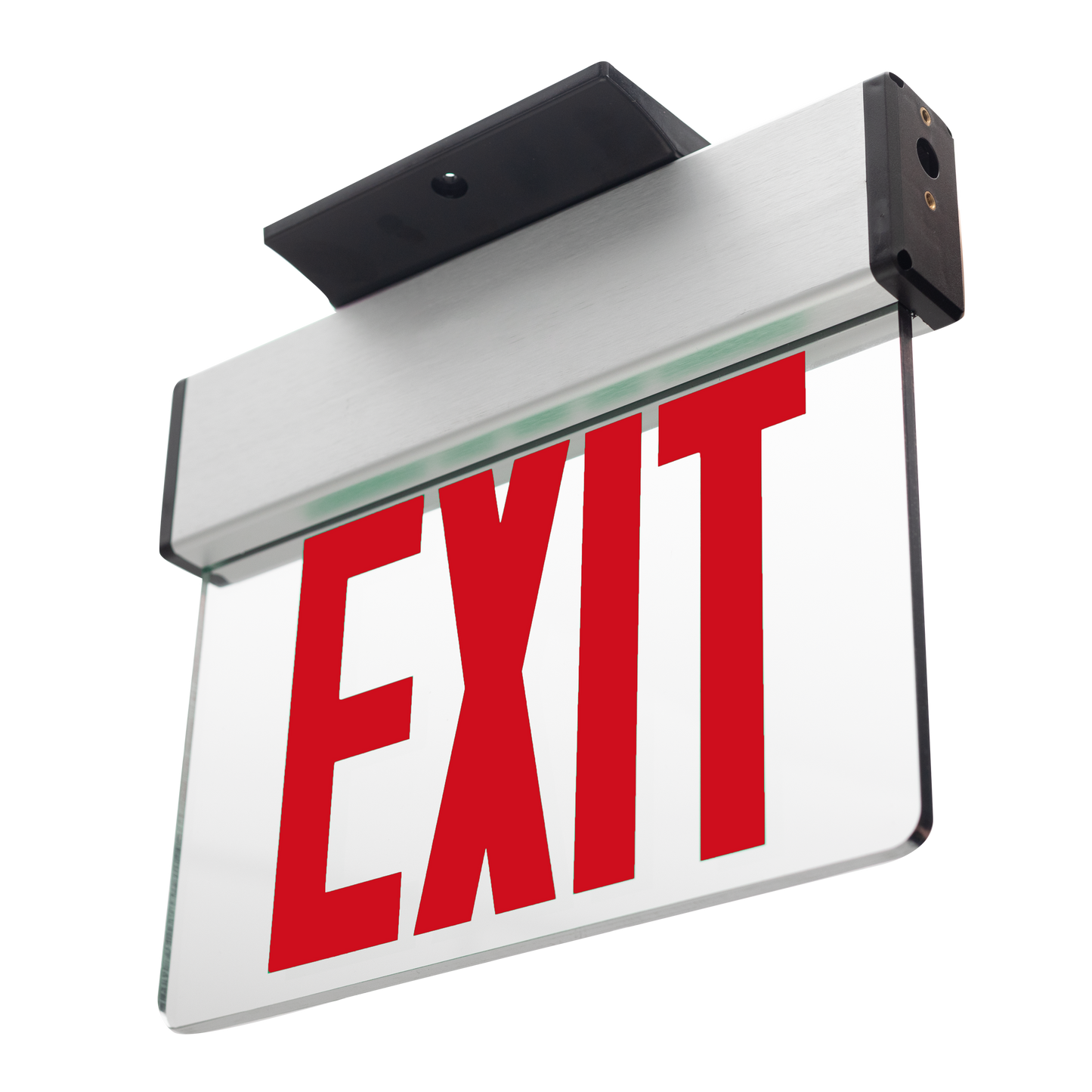

Edge-Lit Exit Sign

  • certifications
  • certifications
  • certifications
High industrial grade acrylic PMMA diffuser lens.  With UV resistant and super clear lens, this fixture is suitable for wall, ceiling, and end mounting.  It has an aircraft aluminum housing with vivid 6" EXIT characters.  Input voltage is 120-347V and input rating is 12.2W and 200mAh.
View full details

Applications:

  • Warehouses, hallways, stairways, commercial and retail environments

Key Features:

  • High impact industrial grade aluminum housing
  • 120 minute battery backup run time
  • 1 for 1 replacement for standard incandescent
    emergency unit
  • High brightness, emergency power is 1.2W max
  • Wide Voltage: AC 100-347V
  • Red
  • UL Listed

Specifications

  • INPUT VOLTAGE 100-347V
  • INPUT WATTAGE 1.2W
  • LUMENS N/A
  • EFFICANCY N/A
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -40 °F to 104 °F
  • CERTIFICATION UL
  • DIMENSION 9.68" x 12"x 1.57"
  • WEIGHT 3.11 lb
  • MODEL NUMBER ML-EM-EL-1R-C

Download

  • Model No.
  • ML-EM-EL-1R-C
  • Wattage
  • 1.2W
  • CCT
  • RED
  • Lumens
  • N/A

ML-EM-EL-1R-C
