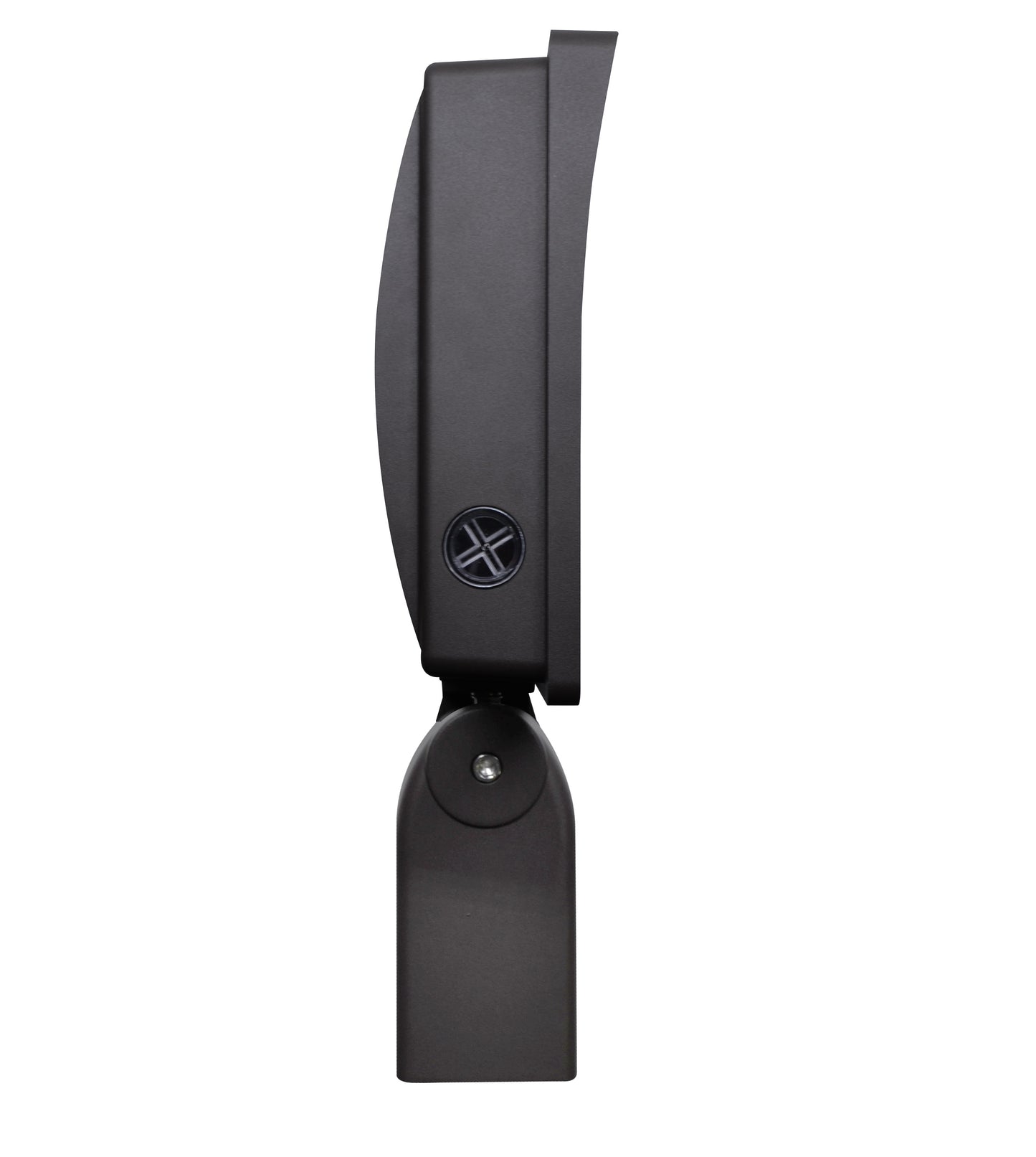

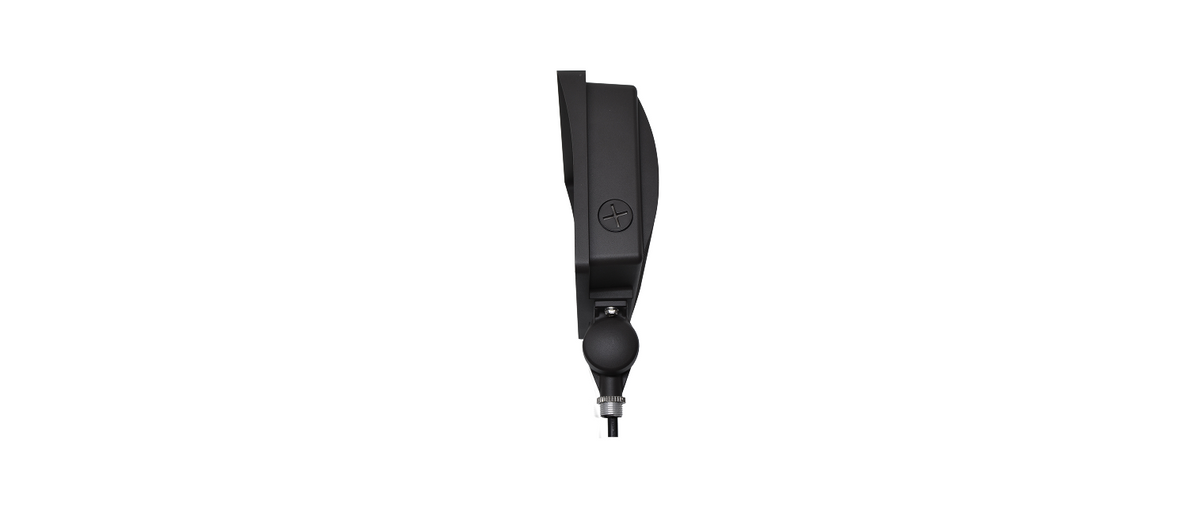

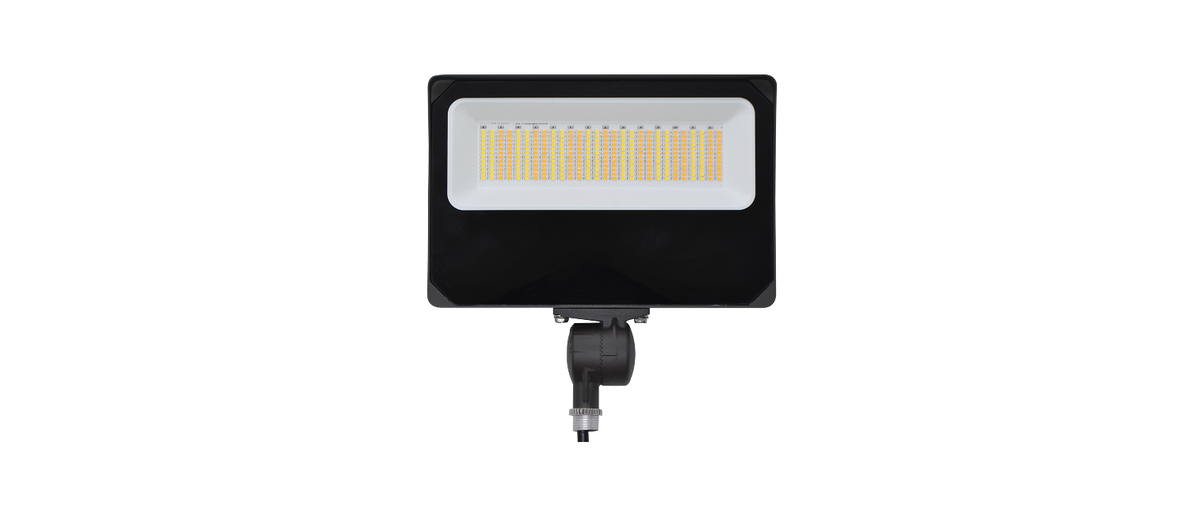

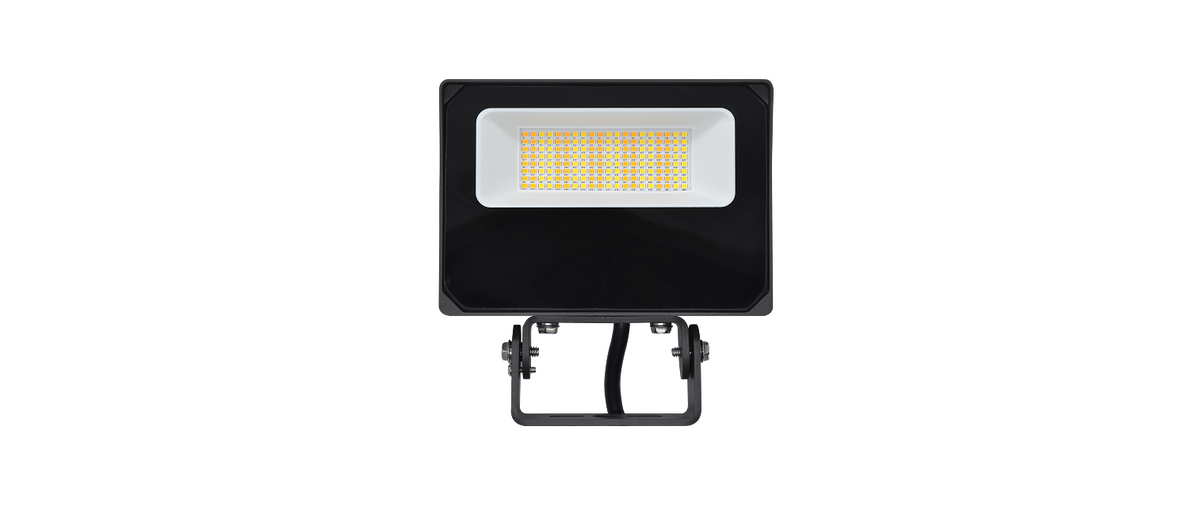

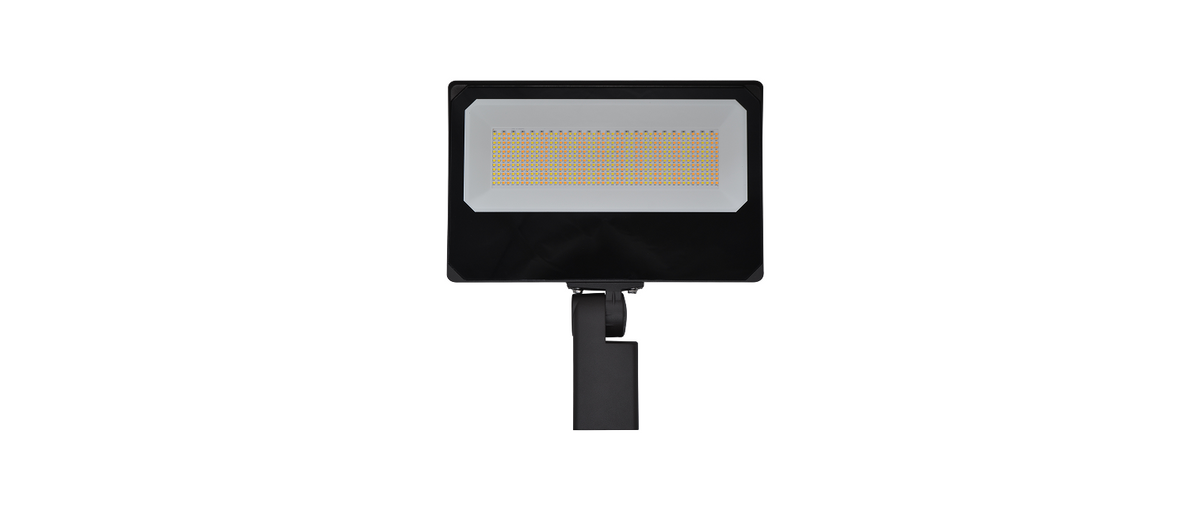

ML-FL-3X Series

ML-FL-3X Series

LED Floodlight with CCT and Wattage Selectable & Photocell Option

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
Replaces 70-watt high intensity discharge (HID). 35 watt Color and Wattage Selectable LED Flood Light with 4772 delivered lumens. 3000K/4000K/5000K, dark bronze, DLC and UL Listed, 5-year limited warranty,
View full details

Applications:

  • Street & Tunnel, Park, Gas Station, Parking, Industrial Site Lighting

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 70W metal-halide light
  • Advanced optic system for rebate eligibility
  • 4812/11473/21274 Lumens
  • Dark bronze aluminum housing
  • Input Power of 35Watts/25 Watts/15 Watts
  • Input Power of 90Watts/70 Watts/50 Watts
  • Input Power of 150Watts/120 Watts/100 Watts
  • 3000K/4000K/5000K White Color Output
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 15W/20W/35W
    50W/70W/90W
    100W/120W/150W
  • LUMENS 4812ms
    11473lms
    21274 lms
  • EFFICACY 137 LM/W
  • RATED LIFE 137 LM/W
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 70W
  • CRI >70
  • AVAILABLE CCT 3K/4K/5K
  • DIMENSION 7.63“x 7.36" x 2.75
    10.5“x 10.75" x 3.25”
    14“x 15.5" x 3.25"
  • WEIGHT 4.25lbs
    6.25
    8.75
  • MODEL NUMBER ML-FL-31018-35WT-345K-UV
    ML-FL-31073-90WT-345K-UV
    ML-FL-31133-150WT-345K-UV

Download

  • Model No.
  • ML-FL-31018-35WT-345K-UV
  • ML-FL-31073-90WT-345K-UV
  • ML-FL-31133-150WT-345K-UV
  • Wattage
  • 15W/20W/35W
  • 50W/70W/90W
  • 100W/120W/150W
  • CCT
  • 3K/4K/5K
  • 3K/4K/5K
  • 3K/4K/5K
  • Lumens
  • 4812ms
  • 11473lms
  • 21274 lms

ML-FL-31018-35WT-345K-UV

ML-FL-31073-90WT-345K-UV

ML-FL-31133-150WT-345K-UV
