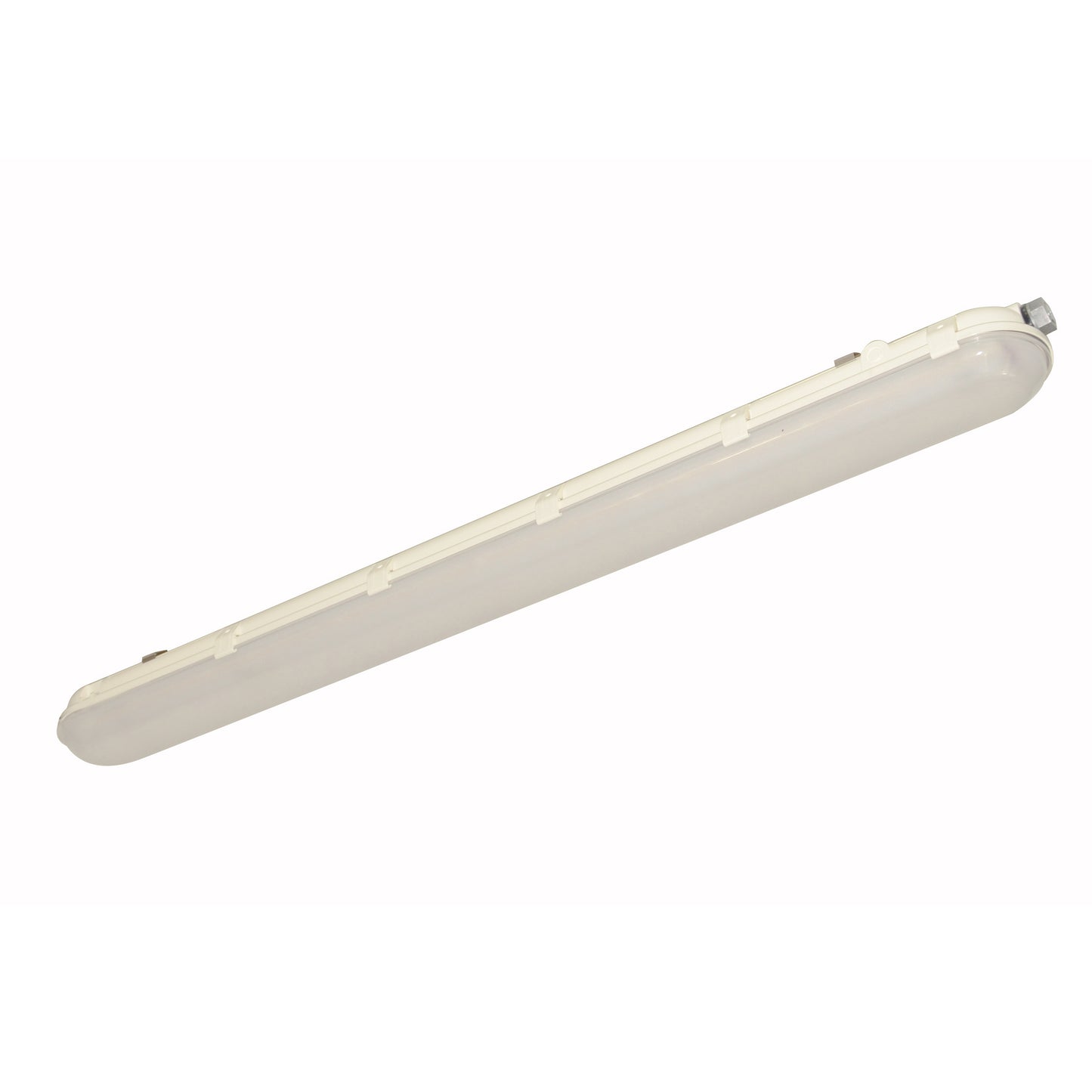

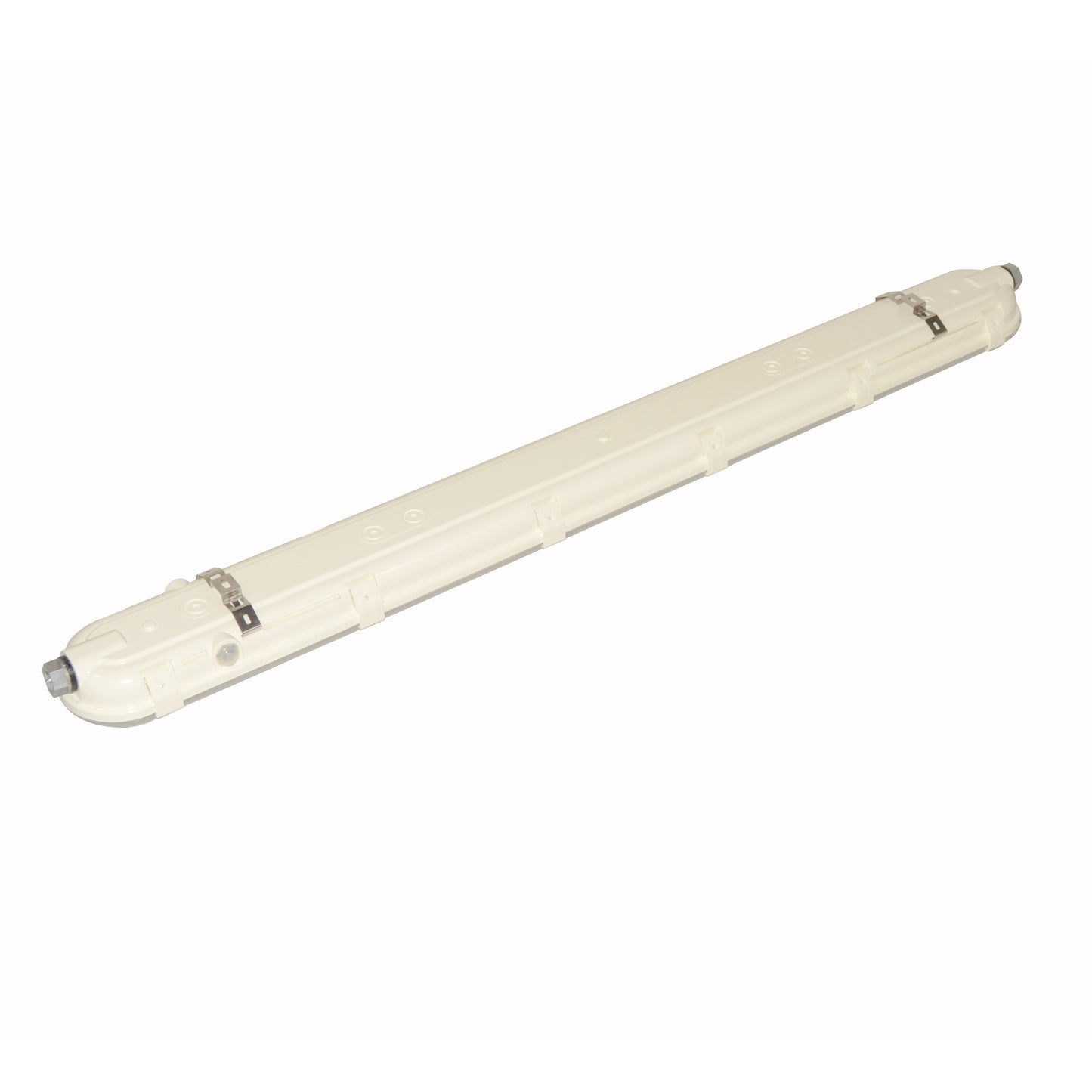

Replaces T8 fluorescent tube fixtures. Color Selectable 24W LED 2FT Vapor Tight light with 3423 delivered lumens. 3000K/4000K/5000K, industrial grade polycarbonate body and lens, DLC and UL Listed, 5-year limited warranty. CCT Selectable CCT only
View full details

Applications:

  • Parking structures, hallways, stairways, commercial and retail environments

Key Features:

  • Universal input voltage (120-277V)
  • Frosted Lens for uniform distribution
  • 3423 lumens at 23W
  • Housing made of heat resistant and high impact industrial-grade polycarbonate body and lens
  • Input Power of  23 Watts
  • 3000K/4000K/5000K Color Output
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 24W (Only)
    35/26/17W
    50/35/25W
    60/45/30W
  • LUMENS 3423lms
    5323lms
    8175lms
    7622lms
  • EFFICANCY 148LM/W
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 250W
  • CRI >70
  • AVAILABLE CCT 3000/4000/5000K
  • IP RATING IP65
  • DIMENSION 47.39" X 4.95" X 3.07"
  • WEIGHT 7.9lbs
  • MODEL NUMBER ML-VT-2-24W-345K-UV-WT
    ML-VT-4-35WT-345K-UV-WT
    ML-VT-4-50WT-345K-UV-WT
    ML-VT-4-60WT-345K-UV-WT

Download

  • Model No.
  • ML-VT-2-24W-345K-UV-WT
  • ML-VT-4-35WT-345K-UV-WT
  • ML-VT-4-50WT-345K-UV-WT
  • ML-VT-4-60WT-345K-UV-WT
  • Wattage
  • 24W (Only)
  • 35/26/17W
  • 50/35/25W
  • 60/45/30W
  • CCT
  • 3K/4K/5K
  • 3K/4K/5K
  • 3K/4K/5K
  • 3K/4K/5K
  • Lumens
  • 3423lms
  • 5323lms
  • 8175lms
  • 8920lms

ML-VT-2-24W-345K-UV-WT

ML-VT-4-35WT-345K-UV-WT

ML-VT-4-50WT-345K-UV-WT

ML-VT-4-60WT-345K-UV-WT
