ML-SL Series
ML-SL Series

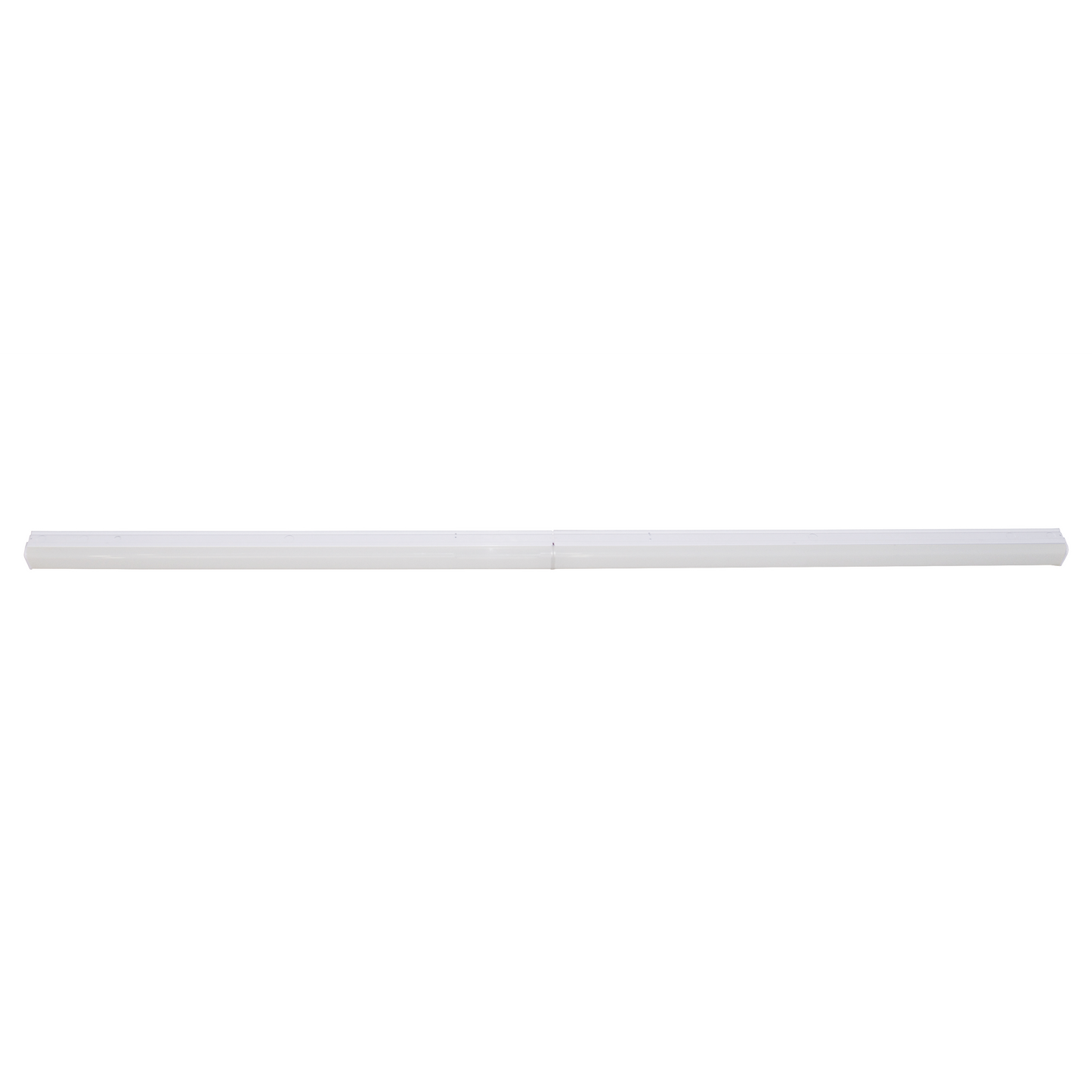

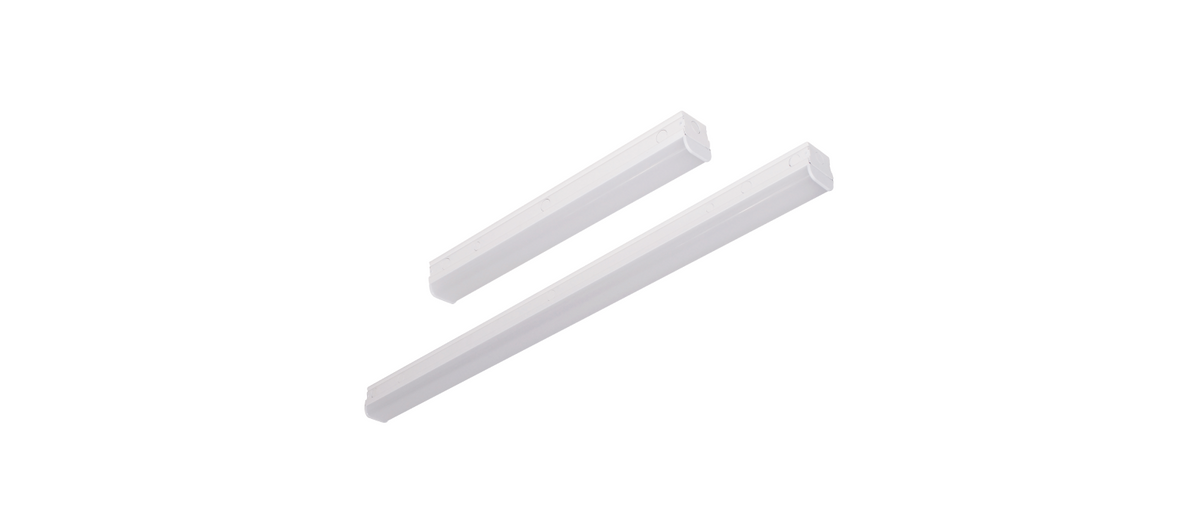

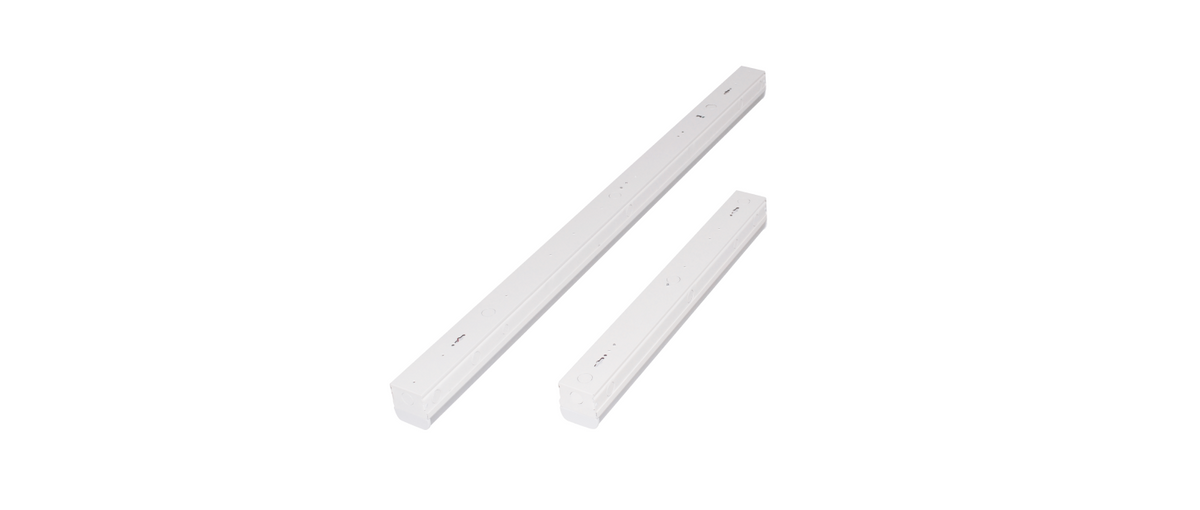

Our LED Strip Light Contractor Series ranges from 2 foot, 4 foot, and 8 foot in length, allowing contractors to satisfy any job- big or small. These new designs have color and wattage selectable in our 4 foot and 8 foot and color selectable in the 2 foot. The 8 foot LED Strip has an innovative mechanical design which allow it to ship in four foot packages which saves time and money on transportation. Industrial-grade polycarbonate lens provide a frosted appearance, thus decreasing glare yet still providing best in class lumens output to the environment.
Specifications
-
INPUT VOLTAGE 120-277VAC
-
INPUT WATTAGE 20W
30W/35W/40W
70W/50W/35W -
LUMENS 2608 lms
5467 lms
8400 lms -
EFFICACY 130 lm/w
140 lm/w
140 lm/w -
RATED LIFE 50,000 hrs
-
DIMMABLE 0-10V
-
OPERATING TEMPERATURE -4°F to +122°F
-
CERTIFICATION UL/CUL, Wet Locations, DLC Premium, FCC
-
CRI >80+
-
AVAILABLE CCT 3500K/4000K/5000K/6000K
-
MODEL NUMBER ML-SL-2-20W-345K
ML-SL-4N-40WT-3545K
ML-SL-8N-80WT-3545K
Download
-
ML-SL-2-20W-345K-UV-WT Spec Sheet ML-SL-4N-40WT-4CCT-UV-WT Spec Sheet ML-SL-8N-80WT-4CCT-UV-WT Spec Sheet Installation Guide ML-SL Series IES files
-
Model No.
-
ML-SL-2-20W-345K-UV
-
ML-SL-4N-40WT-4CCT-UV-WT
-
ML-SL-8N-80WT-4CCT-UV-WT
-
Wattage
-
20W
-
30/35/40W
-
60/70/80W
-
CCT
-
3K/4K/5K
-
3.5K/4K/5K/6K
-
3.5K/4K/5K/6K
-
Lumens
-
2608 lms
-
4200/4900/5600 lms
-
8400/9800/11200 lms
ML-SL-2-20W-345K-UV-WT

ML-SL-4N-40WT-4CCT-UV-WT

ML-SL-8N-80WT-4CCT-UV-WT
