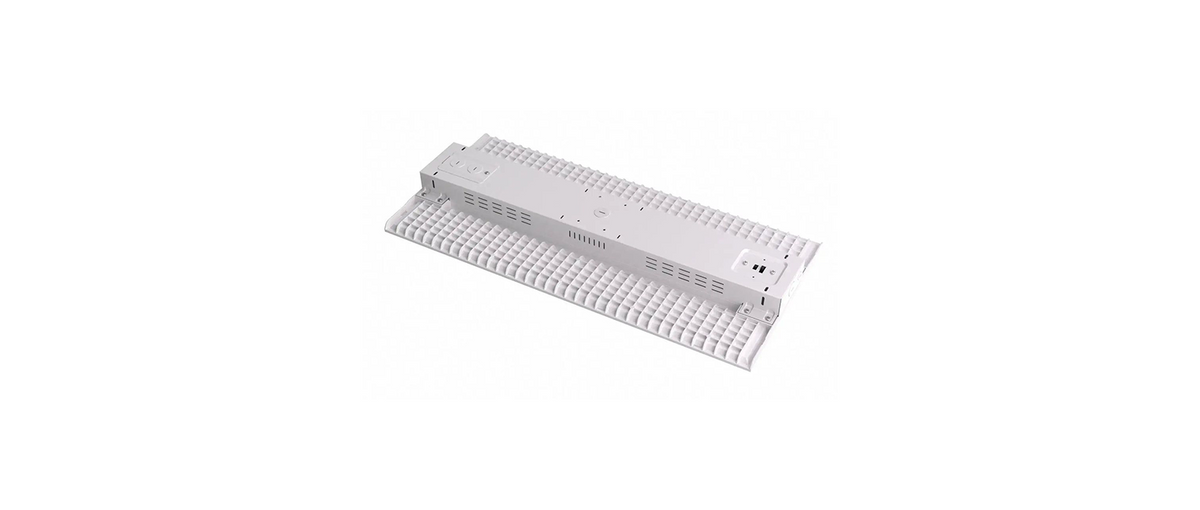

ML-HB-19XX Series

ML-HB-19XX Series

LED Linear High Bay

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

This sleek new design from combines a slim profile with high quality optics to produce a sleek and subtle aesthetic that meets most office ceiling applications. With its tool-less easy access wiring compartment, this fixture simplifies the installation process. Ideal for office spaces, supermarkets, and meeting rooms.



View full details

Applications:

  • Warehouse, Factory, Exhibition Center, Meeting Room, Parking Lot or Garage, Supermarket, Gas Station, High Ceiling Light, Canopy Light, Industrial Site Lighting, Schools, Restaurants, wherever extra light is needed.

Key Features:

  • Universal input voltage (120-347V)
  • Comparable to a 400W/1000W metal-halide light
  • Advanced optic system
  • 15400/18200/23100 Lumens
  • 25200/28000/30800 Lumens
  • 23100/30800/44800 Lumens
  • Input Power of 110/130/165 Watts
  • Input Power of 180/200/220 Watts
  • Input Power of 165/220/320 Watts
  • 4000/5000K Daylight White Color Output
  • UL/cUL Listed,DLC Premium,FCC
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-347V(Universal Voltage)
  • INPUT WATTAGE 110W/130W/165W
    180W/200W/220W
    255W/275W/320W
  • LUMENS 15400/18200/23100 lmns
    25200/28000/30800
    35700/38500/44800 lmns
  • EFFICACY 140 LM/W
  • RATED LIFE 50,000hrs
  • OPERATING TEMPERATURE -40 °F to 104°F
  • CERTIFICATION UL/cUL, Damp Locations, DLC Premium, FCC
  • EQUAL TO Metal Halide 400W
    Metal Halide 1000W
  • CRI 80
  • AVAILABLE CCT 4000K/5000K
  • IP RATING IP54
  • COLOR White

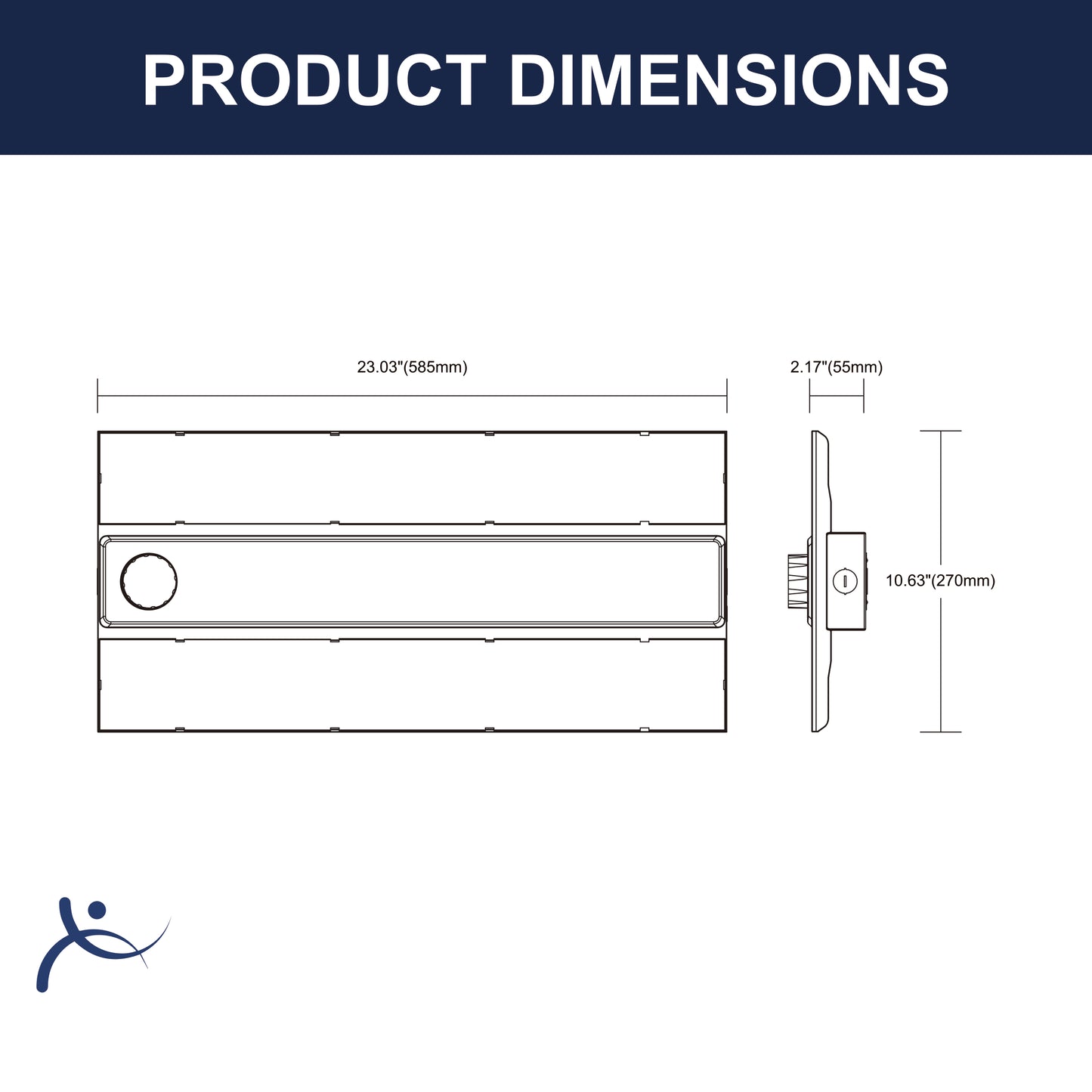

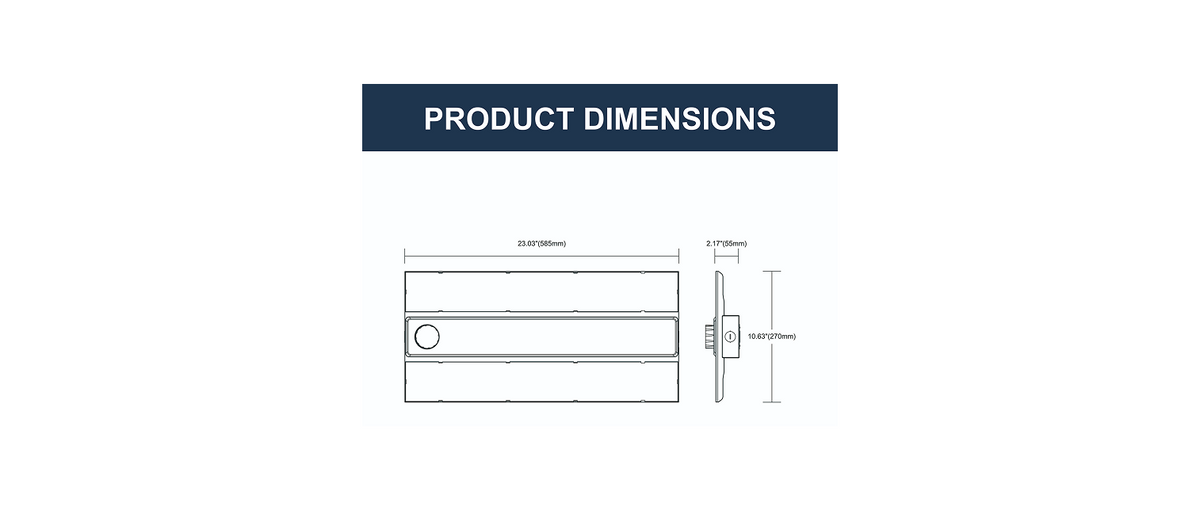

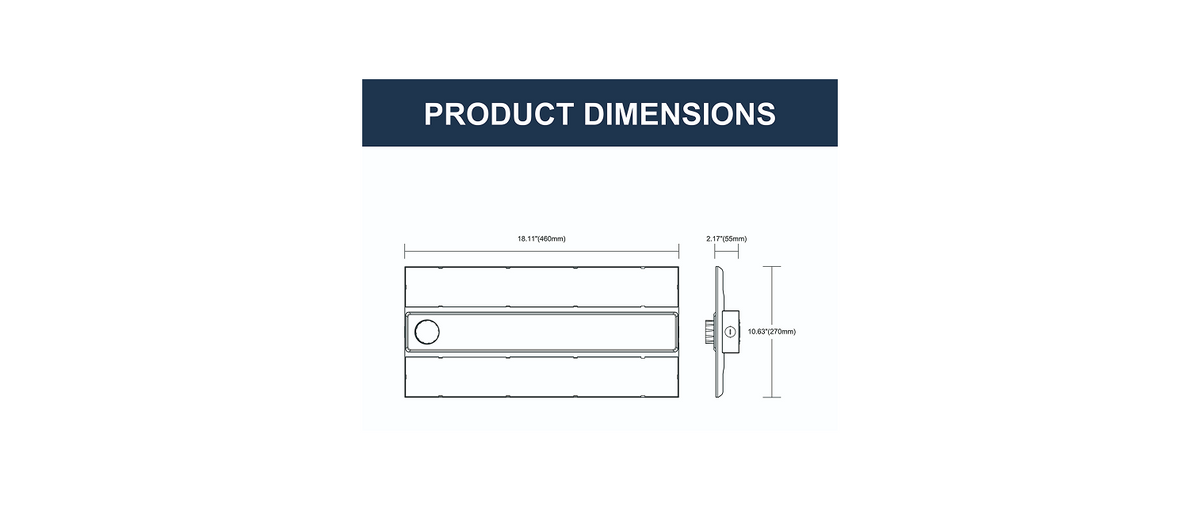

  • DIMENSION 14.17"x10.24"x2.17"
    18.11"x10.63"x0.63"x2.17"
    23.03"x 10.63" x 2.17"
  • WEIGHT 15.9lbs
    20.5lbs
  • MODEL NUMBER ML-HB-1988-165WT-45K-WV
    ML-HB-1989-220WT-45K-WV
    ML-HB-1994-320WT-45K-WV

Download

  • Model No.
  • ML-HB-1988-165WT-45K-WV
  • ML-HB-1989-220WT-45K-WV
  • ML-HB-1994-320WT-45K-WV
  • Wattage
  • 110W/130W/165W
  • 180W/200W/220W
  • 255W/275W/320W
  • CCT
  • 4000/5000K
  • 4000/5000K
  • 4000/5000K
  • Lumens (Max.)
  • 15400/18200/23100 lms
  • 25200/28000/30800 lms
  • 35700/38500/44800 lms

ML-HB-1988-165WT-45-WV

ML-HB-1989-220WT-45-WV

ML-HB-1994-320WT-45-WV
