ML-WM-12103

ML-WM-12103

10" Surface/Suspended LED Cylinder

  • certifications
  • certifications
  • certifications

This 10" Cylinder family is capable of wall mount, pendant mount, ceiling mount and direct mounting.  Color Selectable with options of 3000K/4000K/5000K, this slim profile LED cylinder can be used in a range of environments.  When used in the outdoors, the wall mounted LED cylinder has an integrated photocontrol option for on/off capability as well as UP/DOWN/UP-DOWN light distribution option- all easily controlled by micro-sliding switches.  Beam distribution come in 45 degrees and 75 degrees optics

View full details

Applications:

  • Studios, Apartments, Townhomes, Hotels, Offices, Retail, QSR

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 250W metal-halide light
  • Advanced optic system for rebate eligibility
  • 15351 Lumens
  • Input Power of max. 105W/95W/75W
  • 3000K/4000K/5000K color selectable Daylight White Color Output
  • Wall Mount version has On/Off Photocontrol capability
  • Wall Mount version has Up/Down/Up-Down beam distribution capability.
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 105W/95W/75W
  • LUMENS 15351 Max Lumens
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 400W MH
    400W MH
    400W MH
  • CRI >70
  • AVAILABLE CCT 3000K/4000K/5000K
  • IP RATING IP65

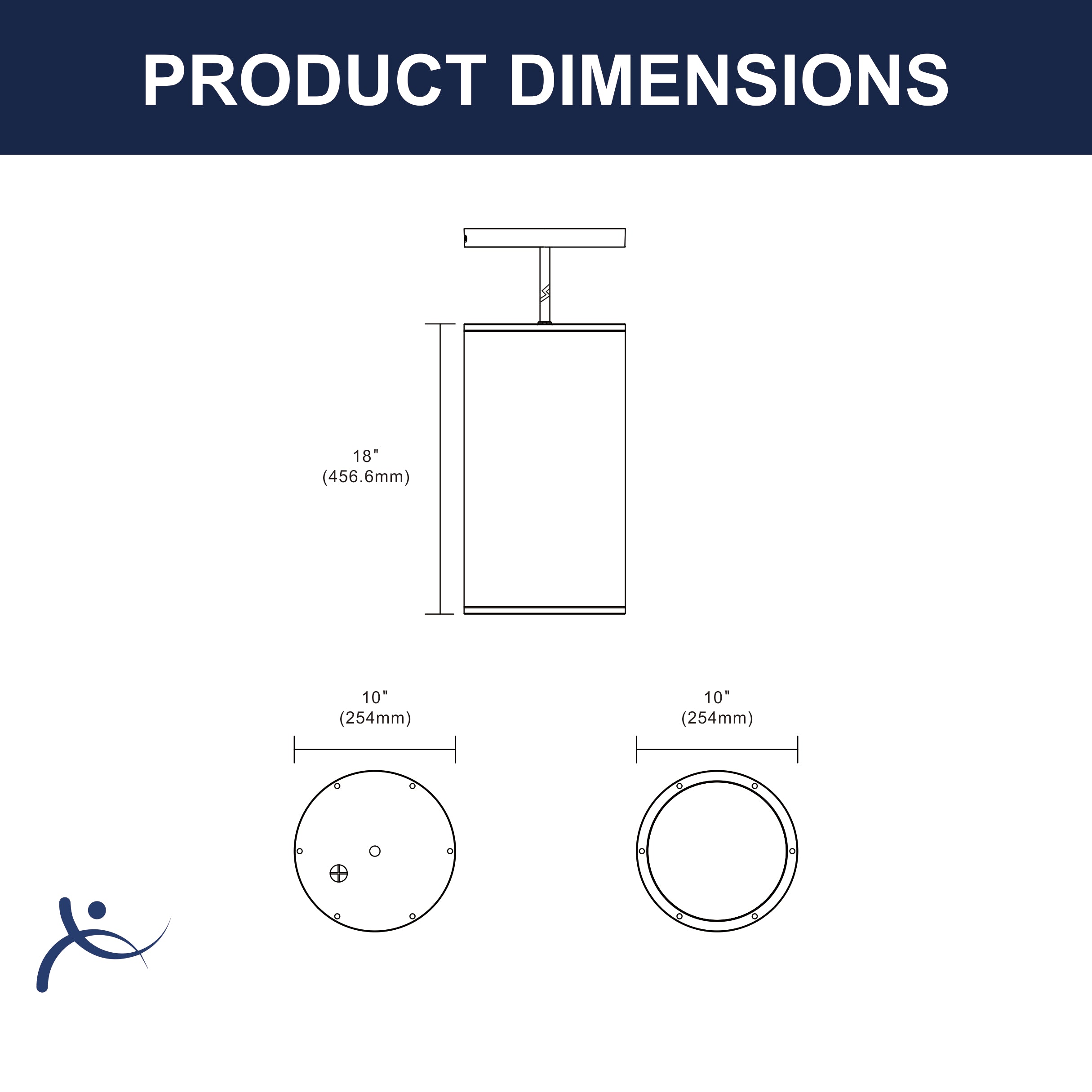

  • DIMENSION 10" x 10" x 18"
  • MODEL NUMBER ML-WM-10043-55W-345K-UV-C
  • WEIGHT 32.88 lbs

Download

  • Model No.
  • ML-WM-12023-105WT-345K-UV-C
  • Wattage
  • 105W/95W/75W
  • CCT
  • 3000K/4000K/.5000K
  • 3000K/4000K/.5000K
  • 3000K/4000K/.5000K
  • Lumens
  • 15877 lms max.

ML-WM-12103-105WT-345K-UV-C
