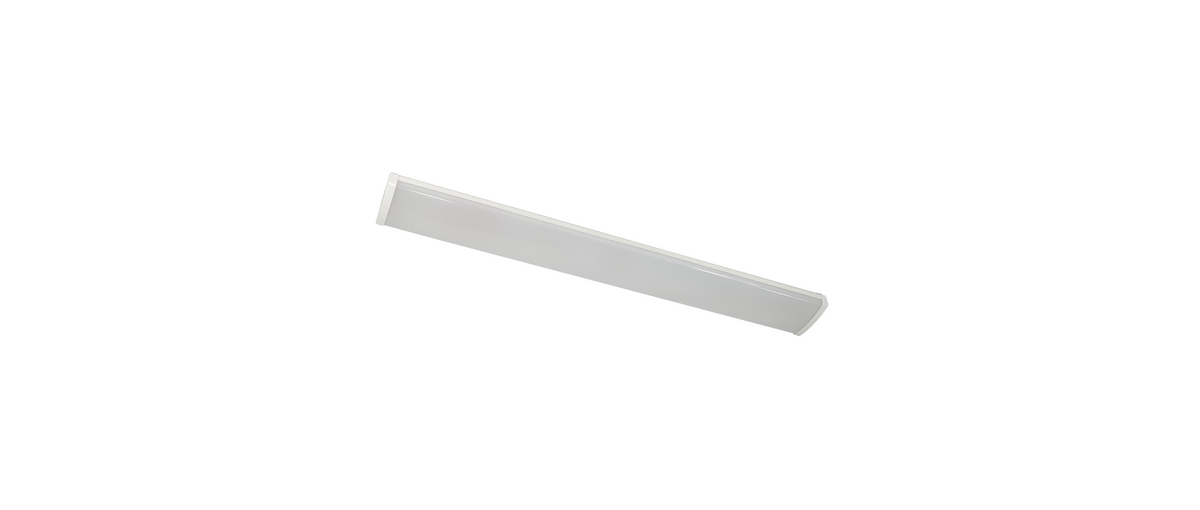

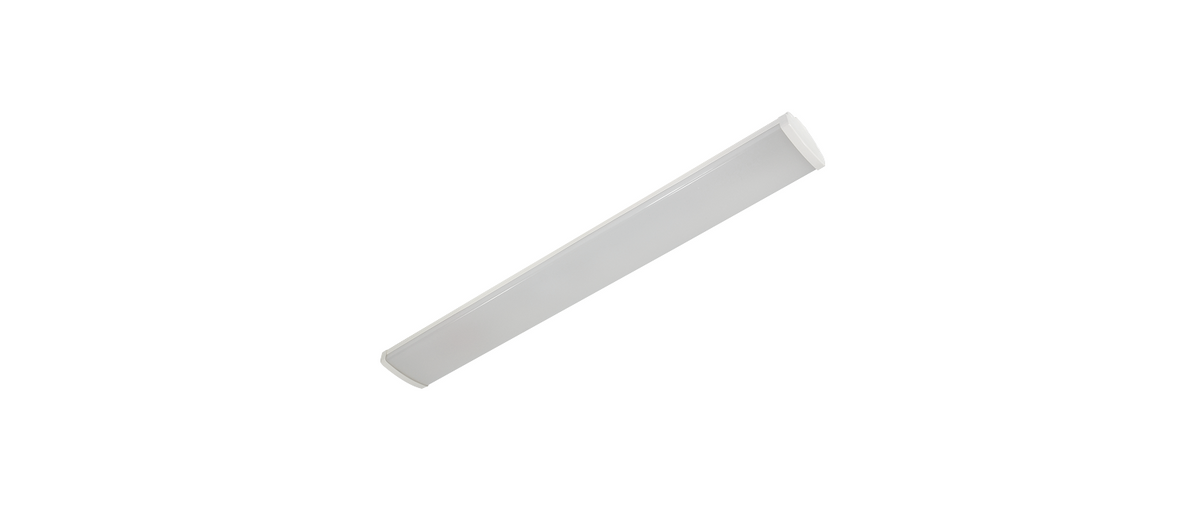

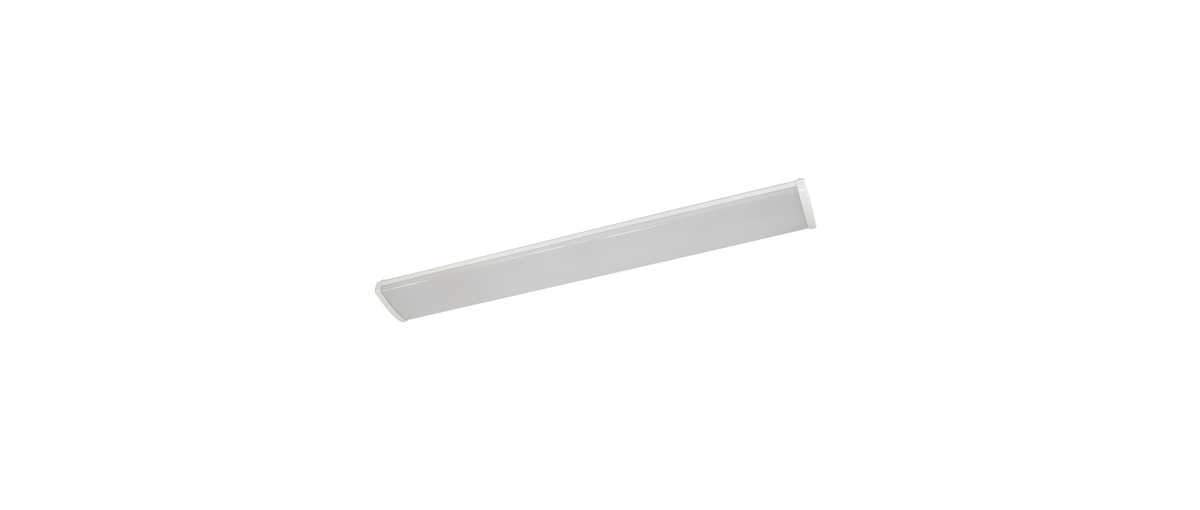

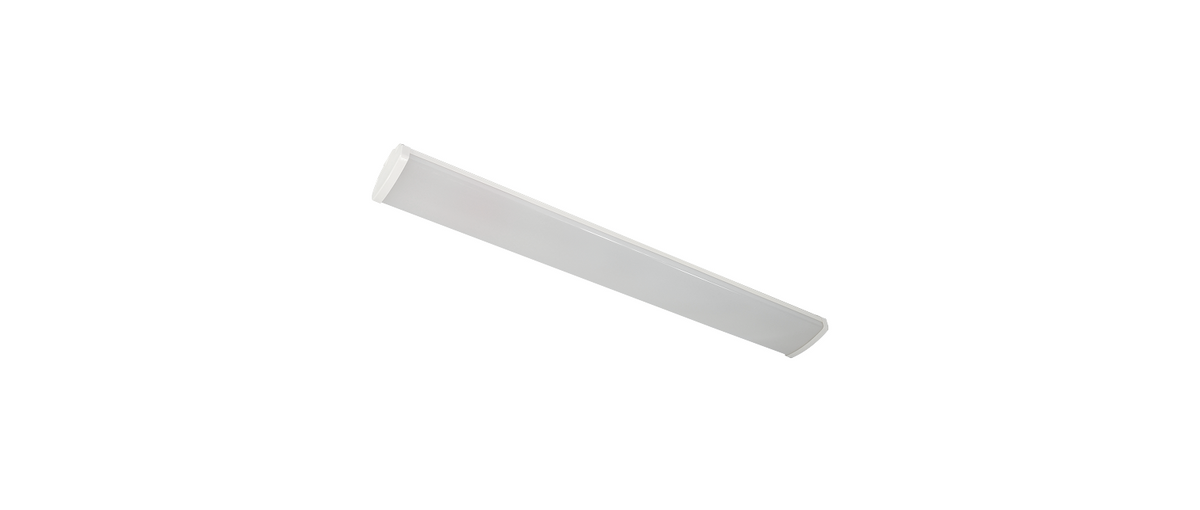

ML-WL Series

ML-WL Series

LED Wraps

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

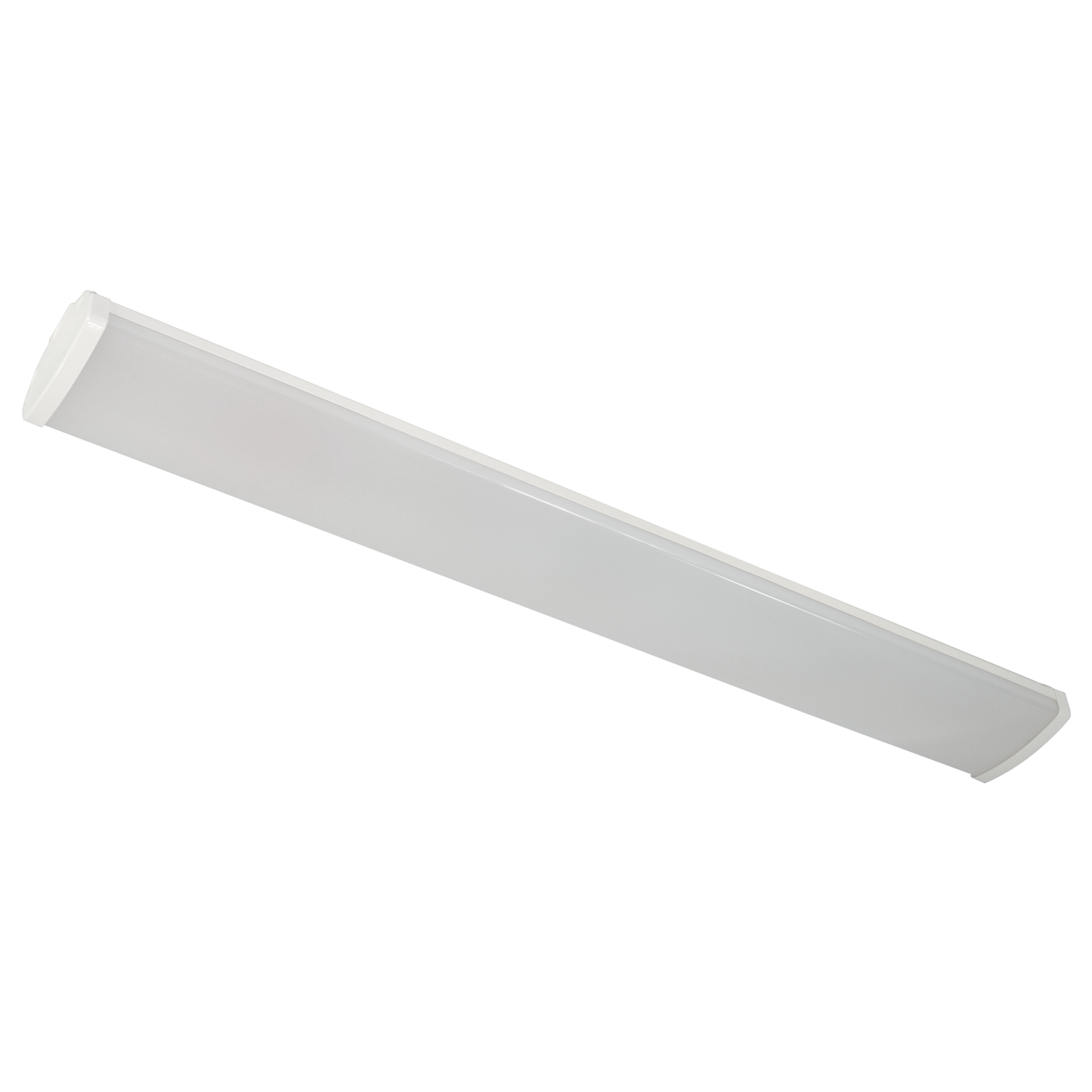

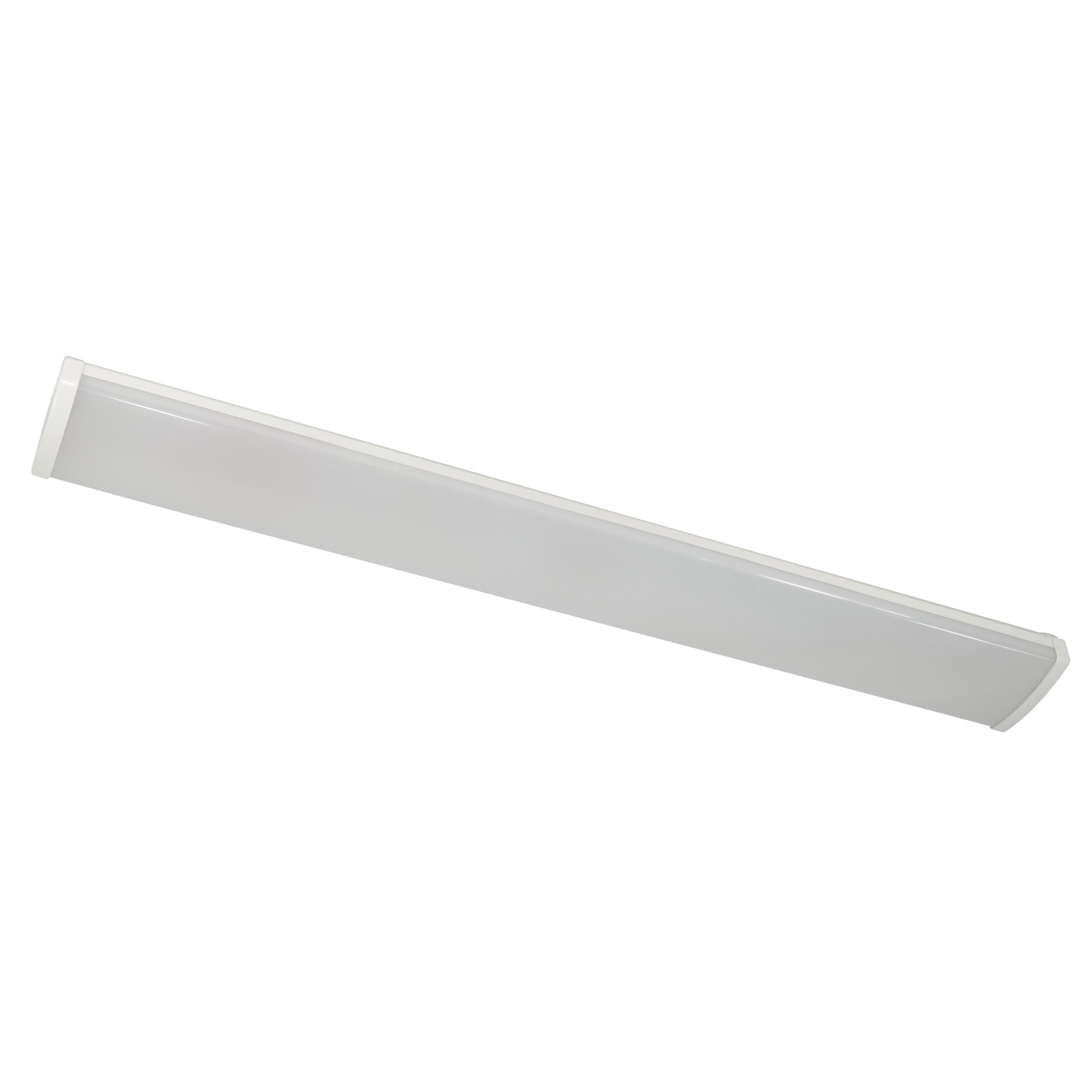

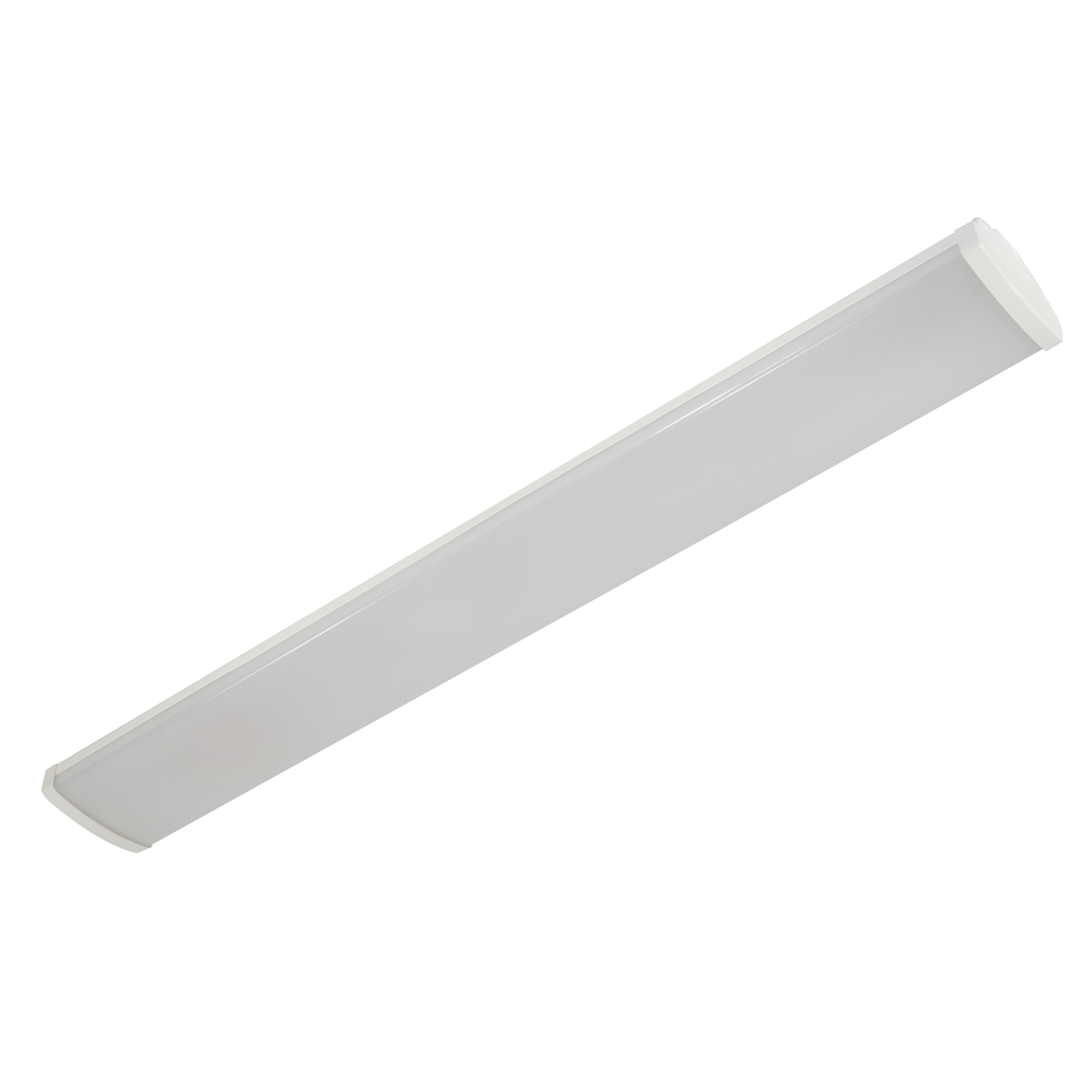

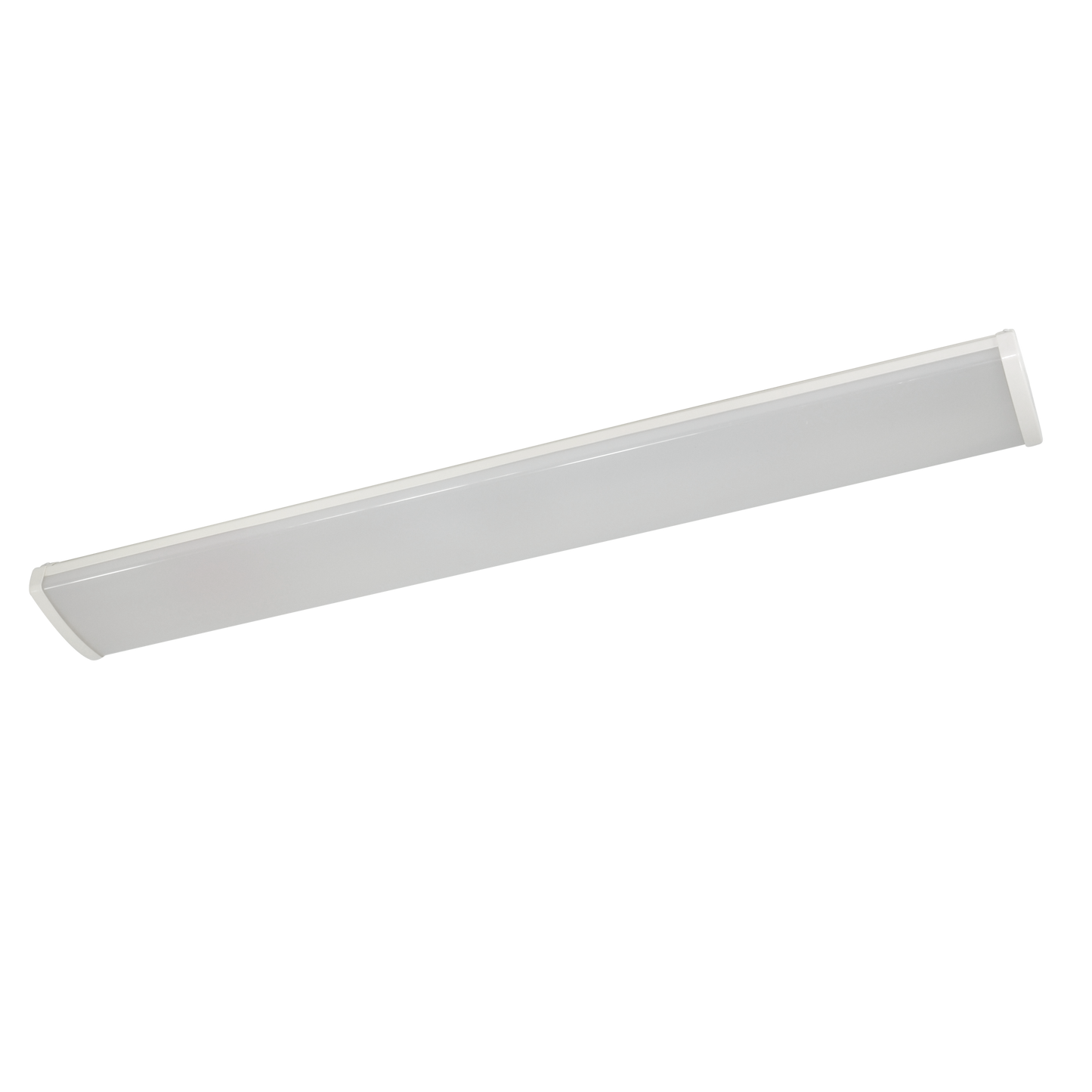

With its slim design, this new linear strip light seamlessly blends flat high quality housing and precision optics to produce a sleek, subtle aesthetic that meets many linear wall mount applications.  These linear wraps, measuring four ft in length, are ideal to be used in maintenance rooms, office spaces, parking stairwells, hallways, etc.  Now with added technology such as wattage and color selectable, this wrap contractor series provides lots of flexibility for contractors to get the job done.
View full details

LISTING:
UL and cUL listed, DLC Premium. FCC


HOUSING:
Housing made of high quality steel with high reflectance paint, providing high lumen output.


AMBIENT TEMPERATURE:

Suitable for use in -40°F to +104°F


ELECTRICAL:
Precision and high reflectance lens producing superior uniformity
Voltage: 120-277V standard, Class 2 constant current Drivers with 90% power factor, <20% THD. Driver efficiency (>90% standard);50/60Hz; 2KV-4KV Surge.


EFFICACY:
Up to 130 lumens per watt (see individual wattage data)


CCT AND CRI:
3000K, 4000K and 5000K CCT available, 80CRI
Dimming 0-10V driver Standard. Occupancy sensor (PIR) optional.


FINISHES:
Polyester powder white finish, Multi-stage process produces 3mil thickness for superior corrosion and maximum environmental durability.

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 45W/33W/22W
    68W/50W/33W
  • LUMENS 5362 lms
    6945lms
  • EFFICACY 128LM/W
    120LM/W
  • OPERATING TEMPERATURE -40 °F to 104°F
  • CERTIFICATION UL/cUL, Damp Locations, DLC Premium, FCC
  • EQUAL TO Metal Halide 150W
    Metal Halide 250W
  • CRI 80
  • AVAILABLE CCT 3000K/4000K/5000K
  • CERTIFICATION UL/cUL, Damp Locations, DLC Premium, FCC
  • IP RATING IP54
  • COLOR White
  • MODEL NUMBER ML-WL-4-45WT-345K-UV-WT
    ML-WL-4-60WT-345K-UV-WT

Download

  • Model No.
  • ML-WL-4-45WT-345K-UV-WT
  • ML-WL-4-60WT-345K-UV-WT
  • Wattage
  • 42W/31W/20W
  • 58W/40W/20W
  • CCT
  • 3K/4K/5K
  • 3K/4K/5K
  • Lumens
  • 5362 lms
  • 6945 lms

ML-WL-4-45WT-345K-UV-WT

ML-WL-4-60WT-345K-UV-WT
