ML-HB-202X Series

ML-HB-202X Series

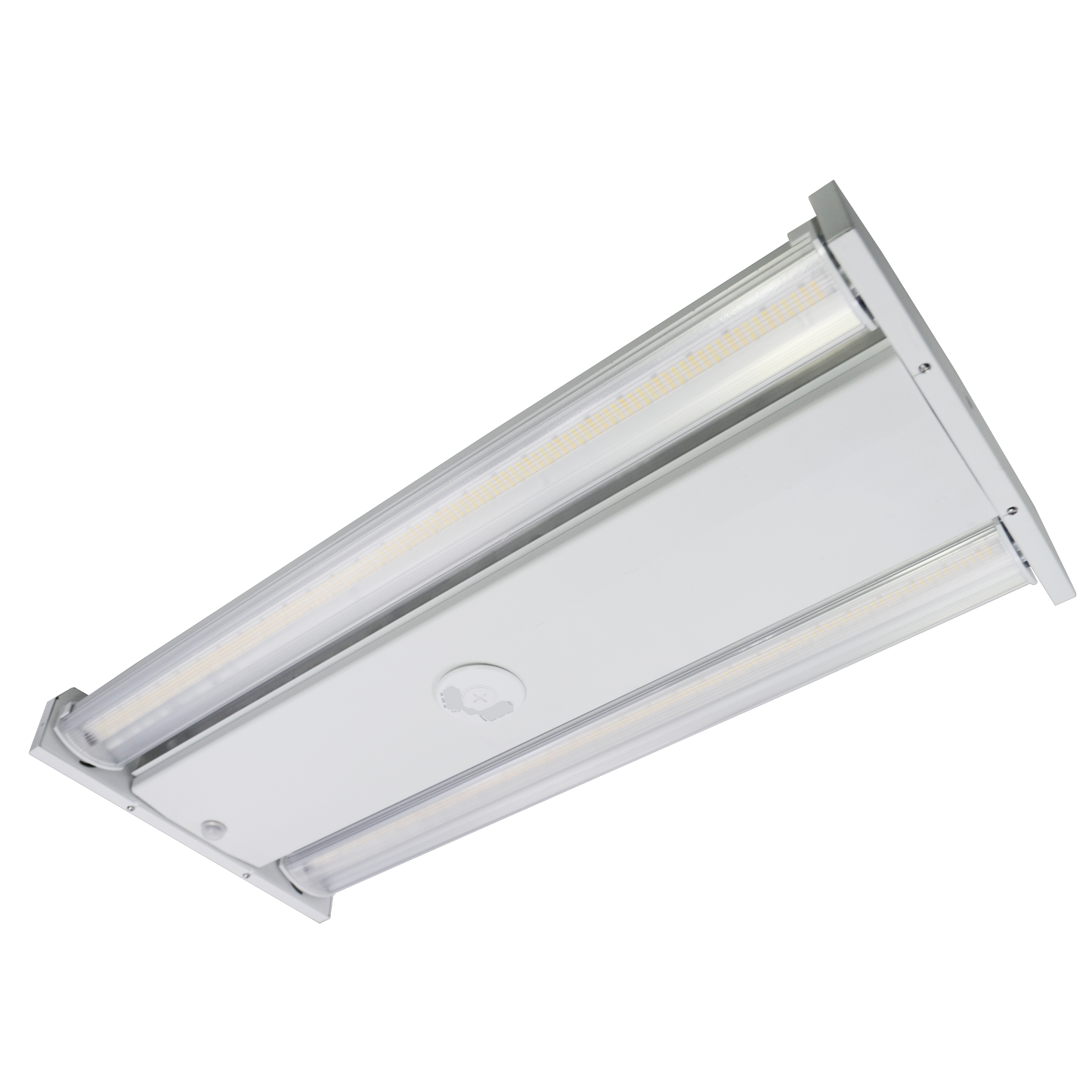

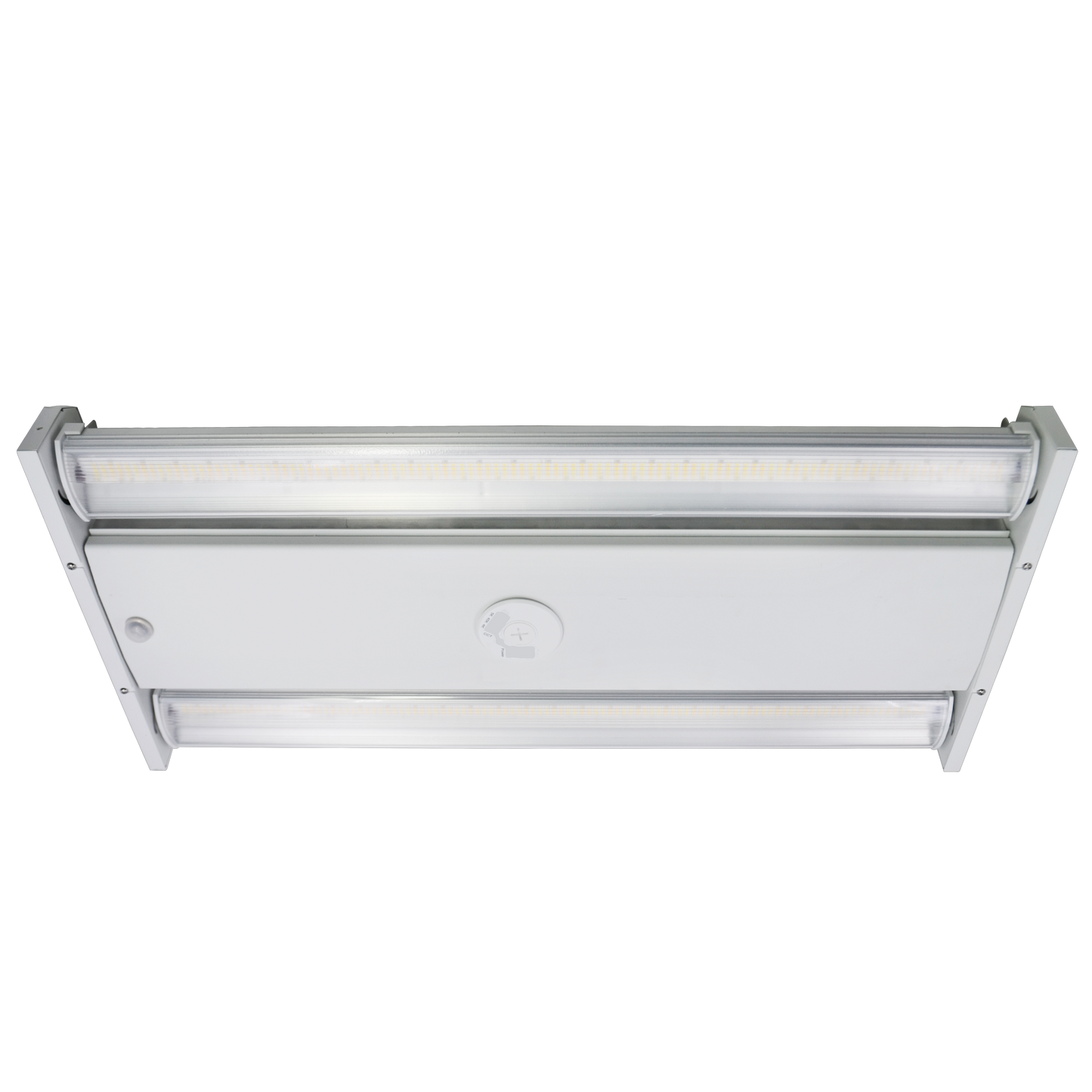

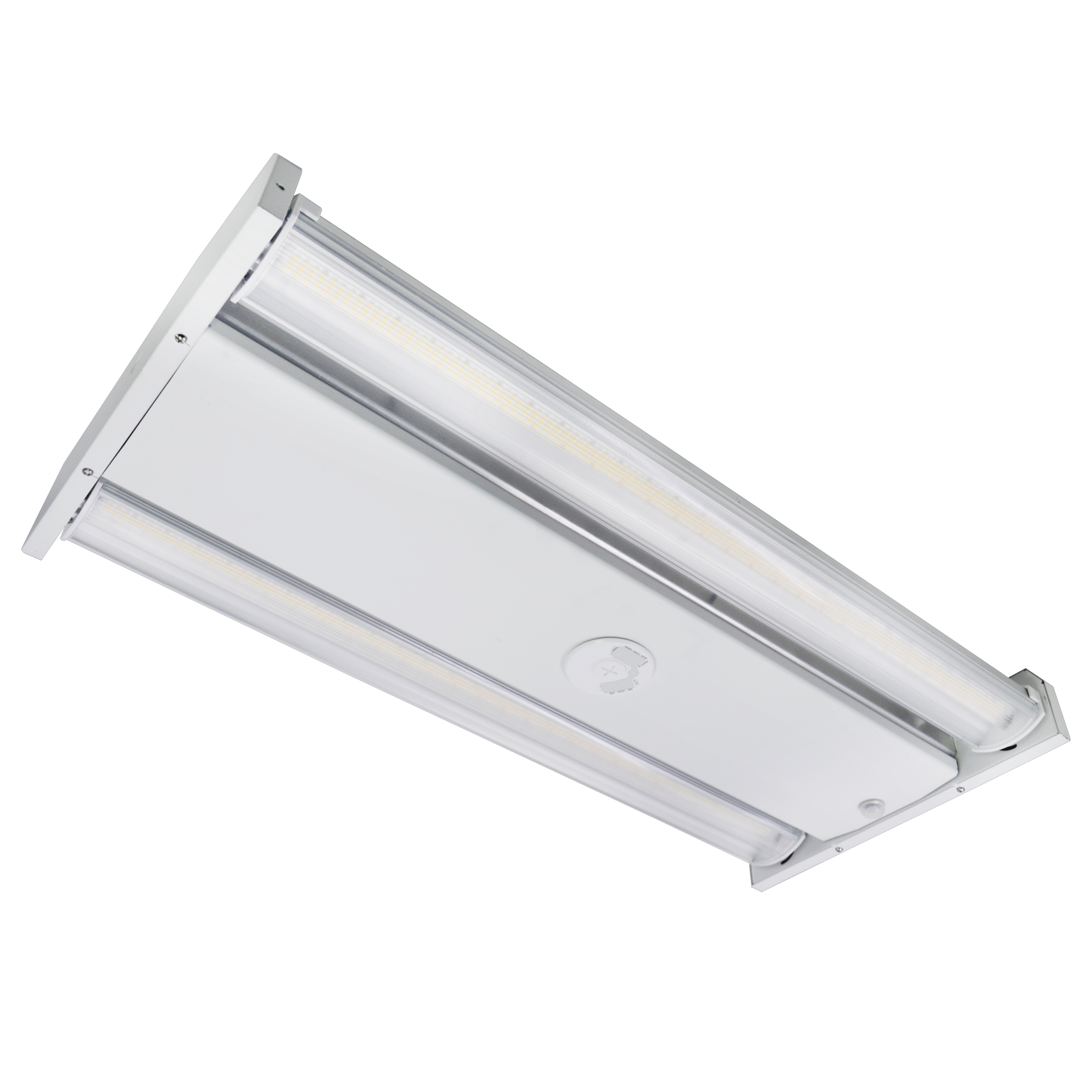

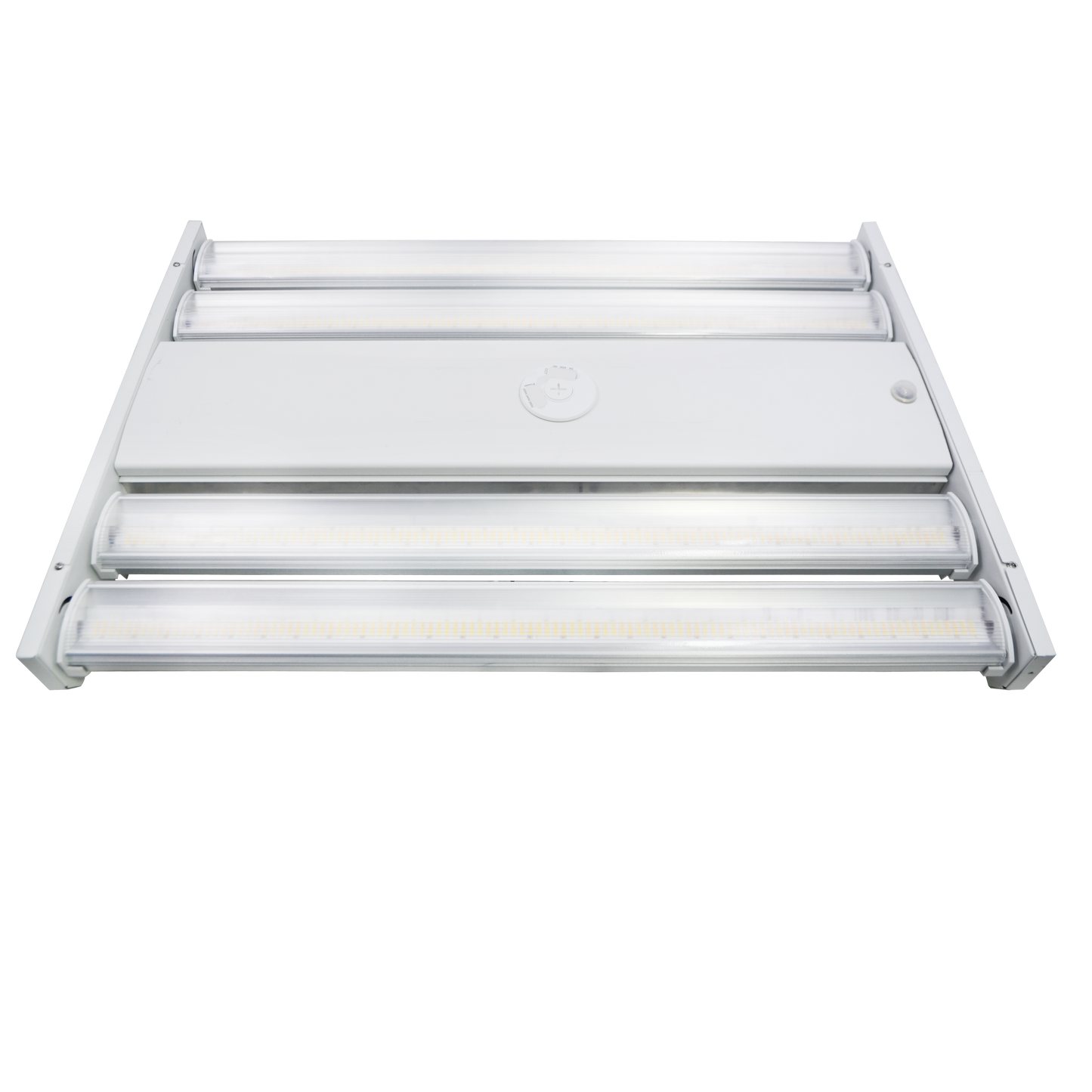

LED Linear High Bay with Adjustable Angle

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

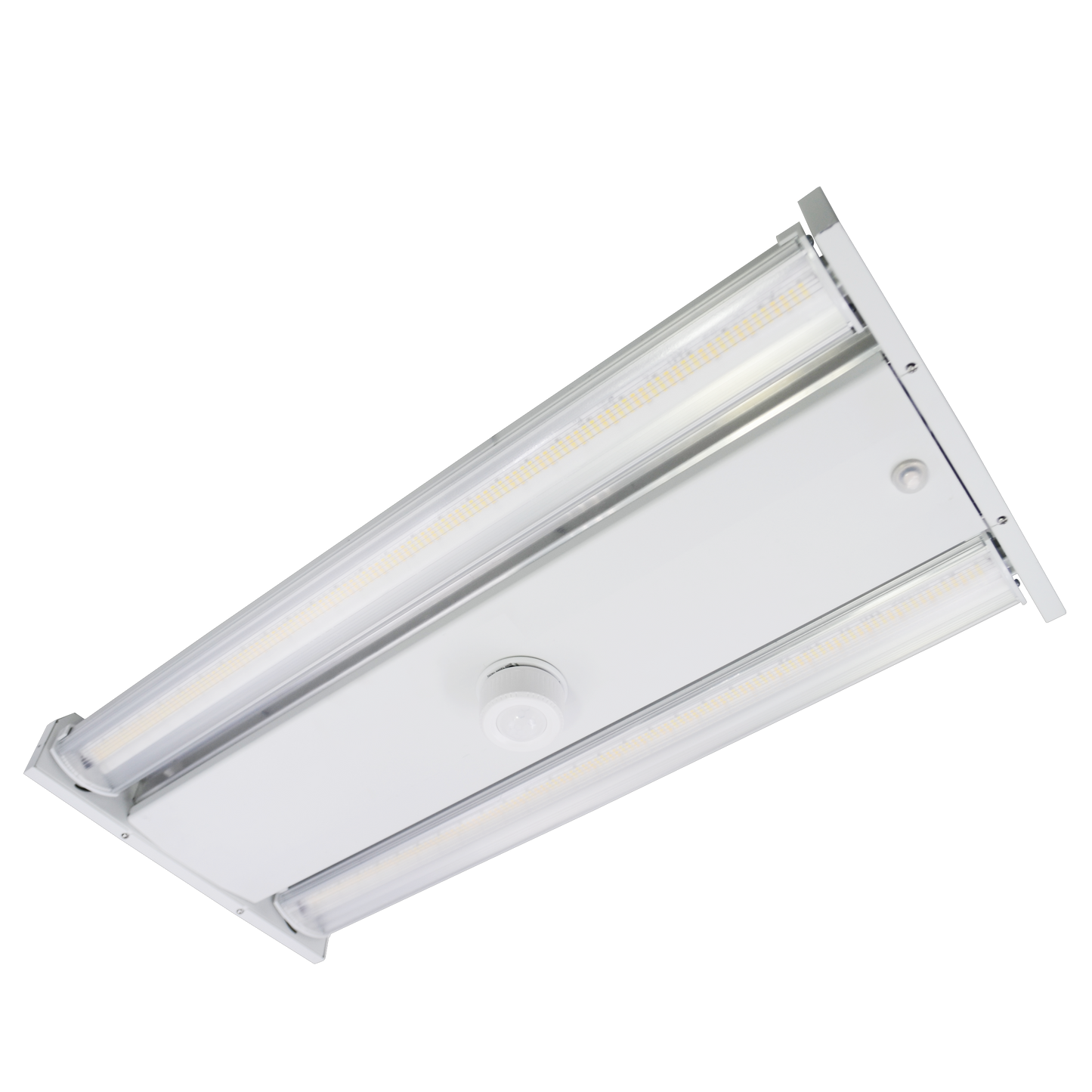

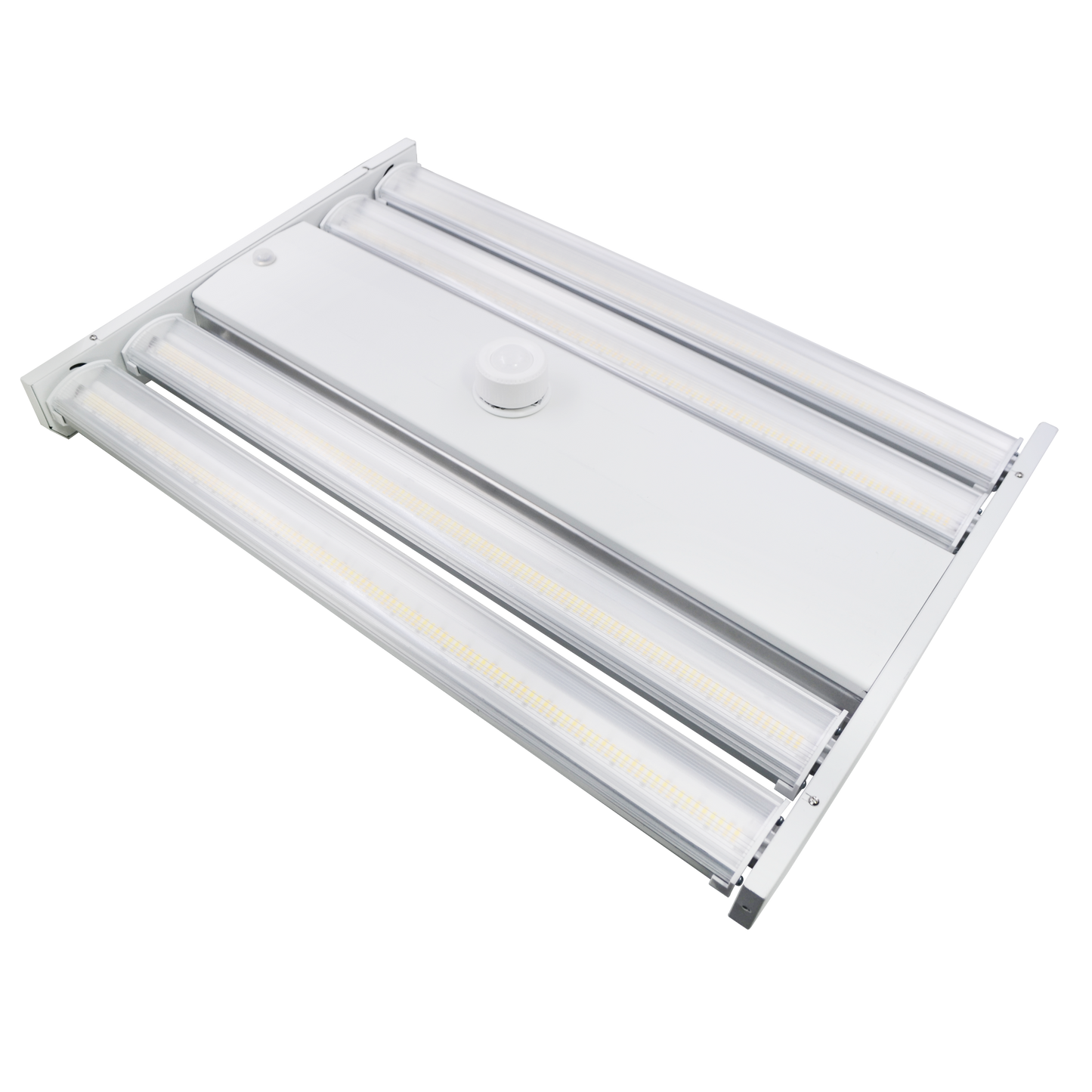

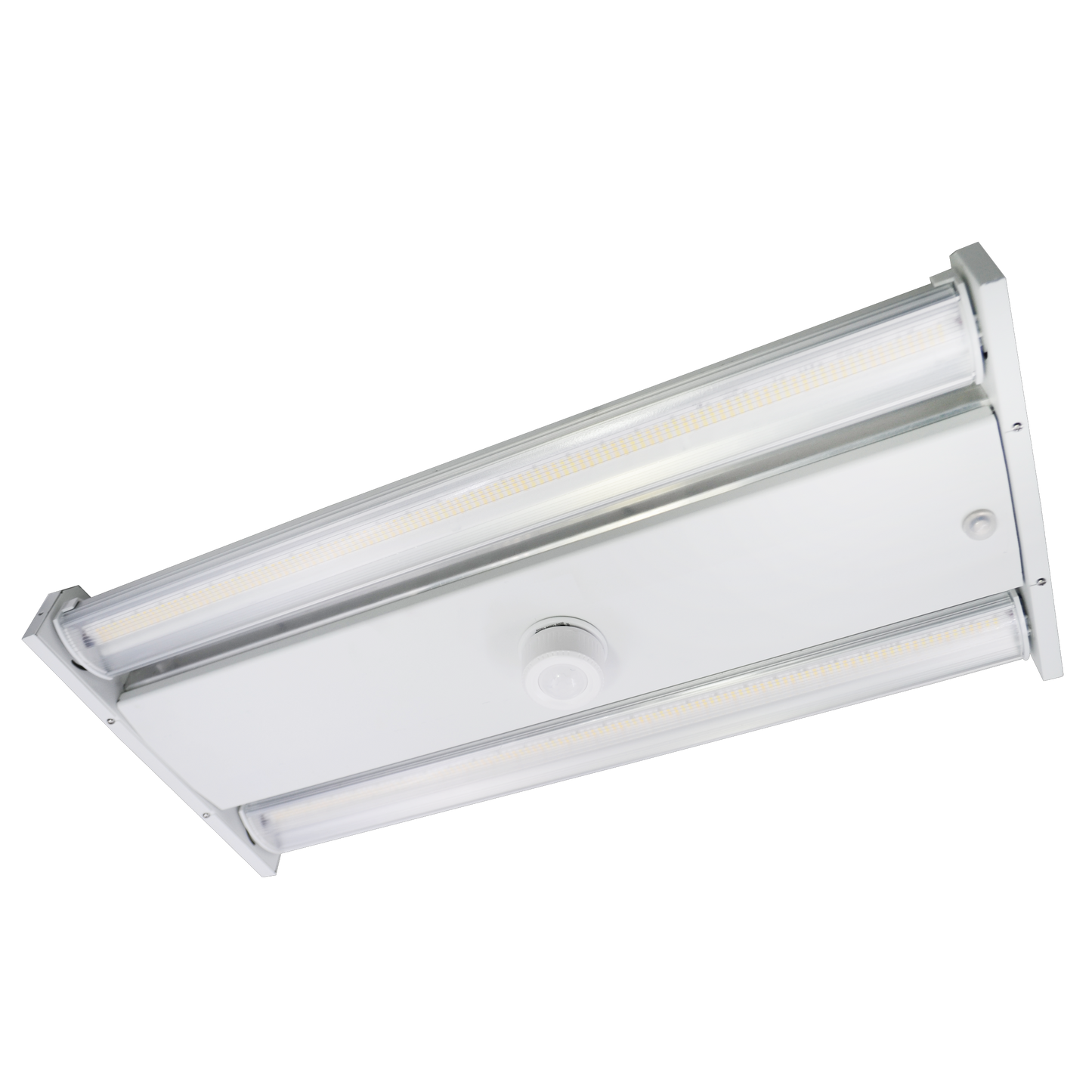

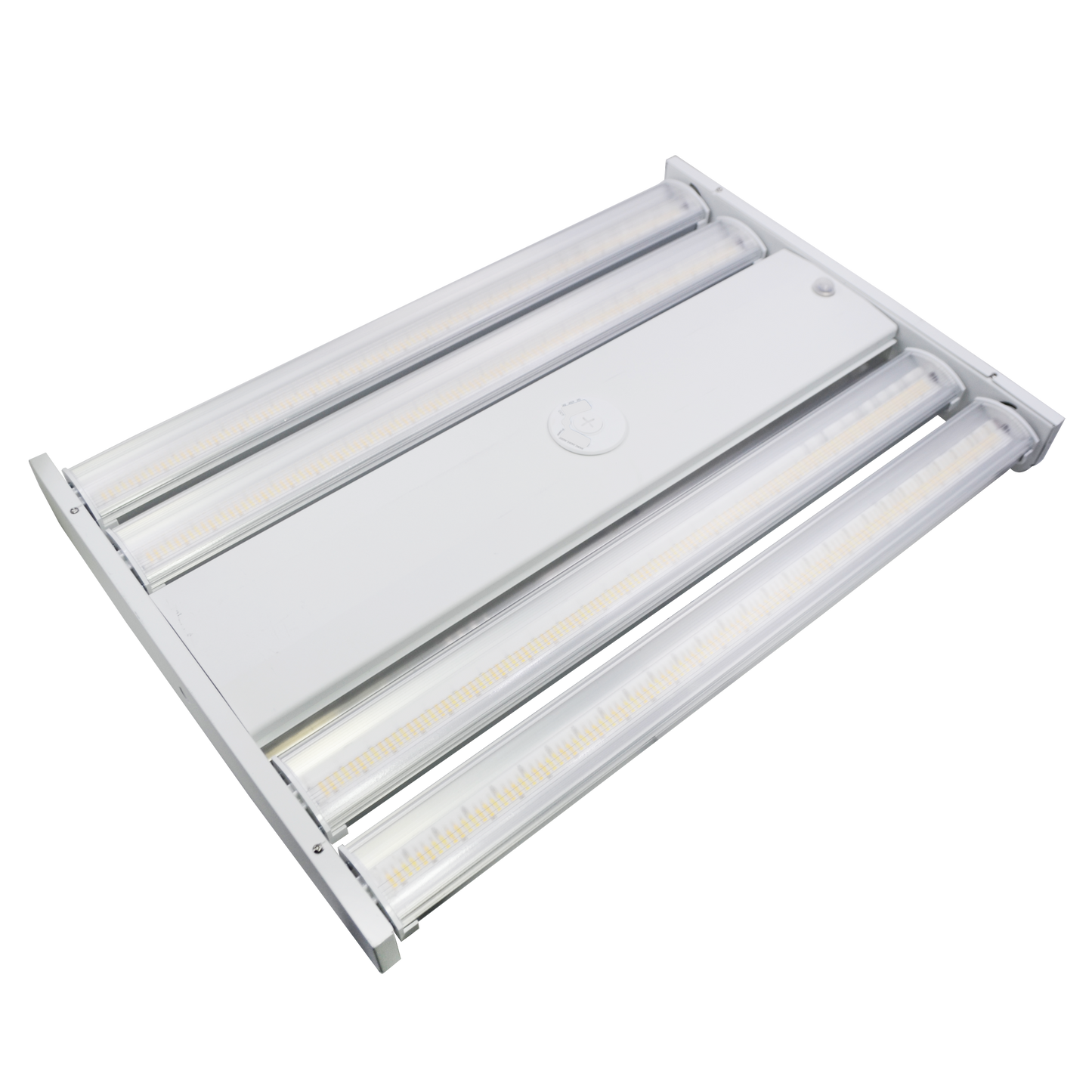

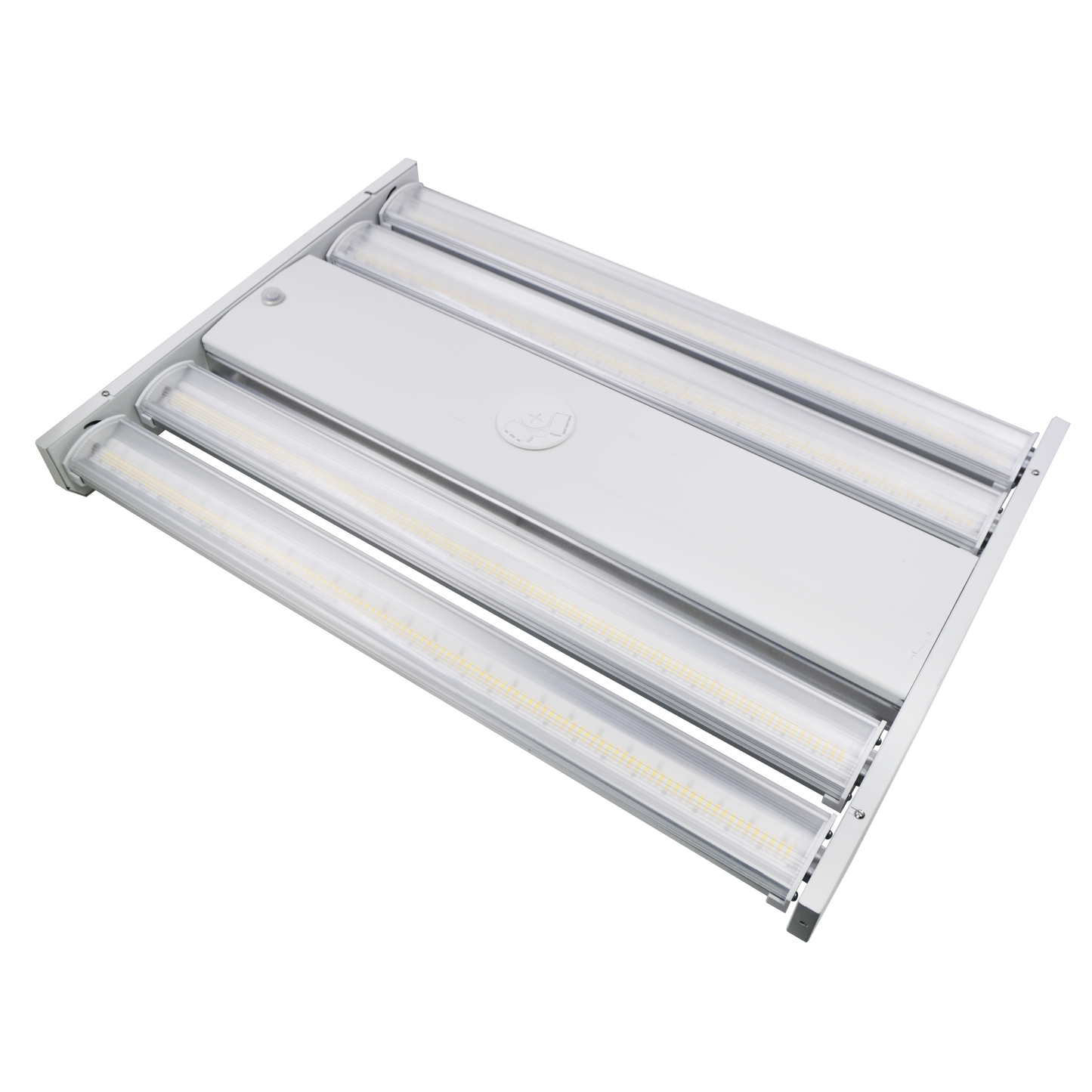

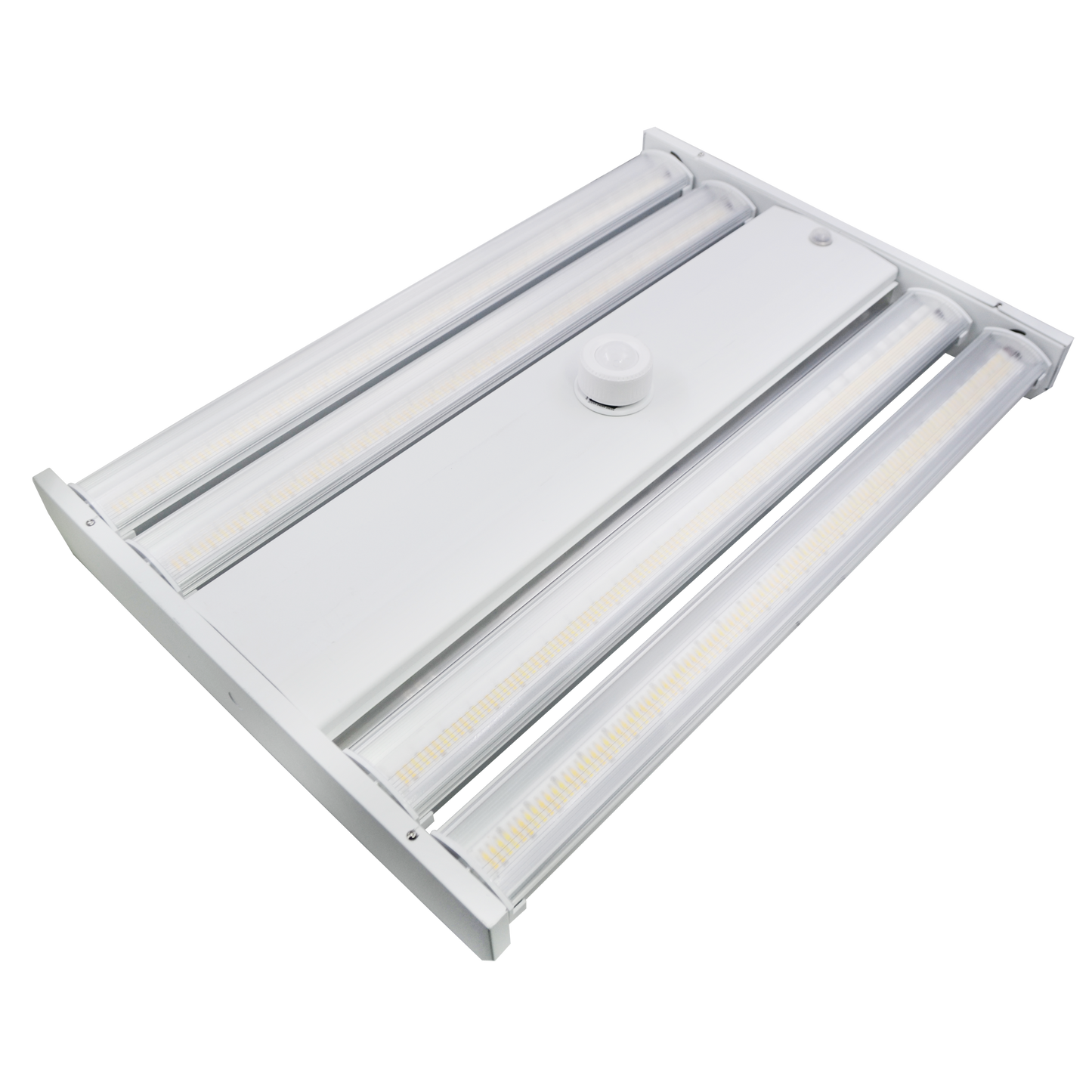

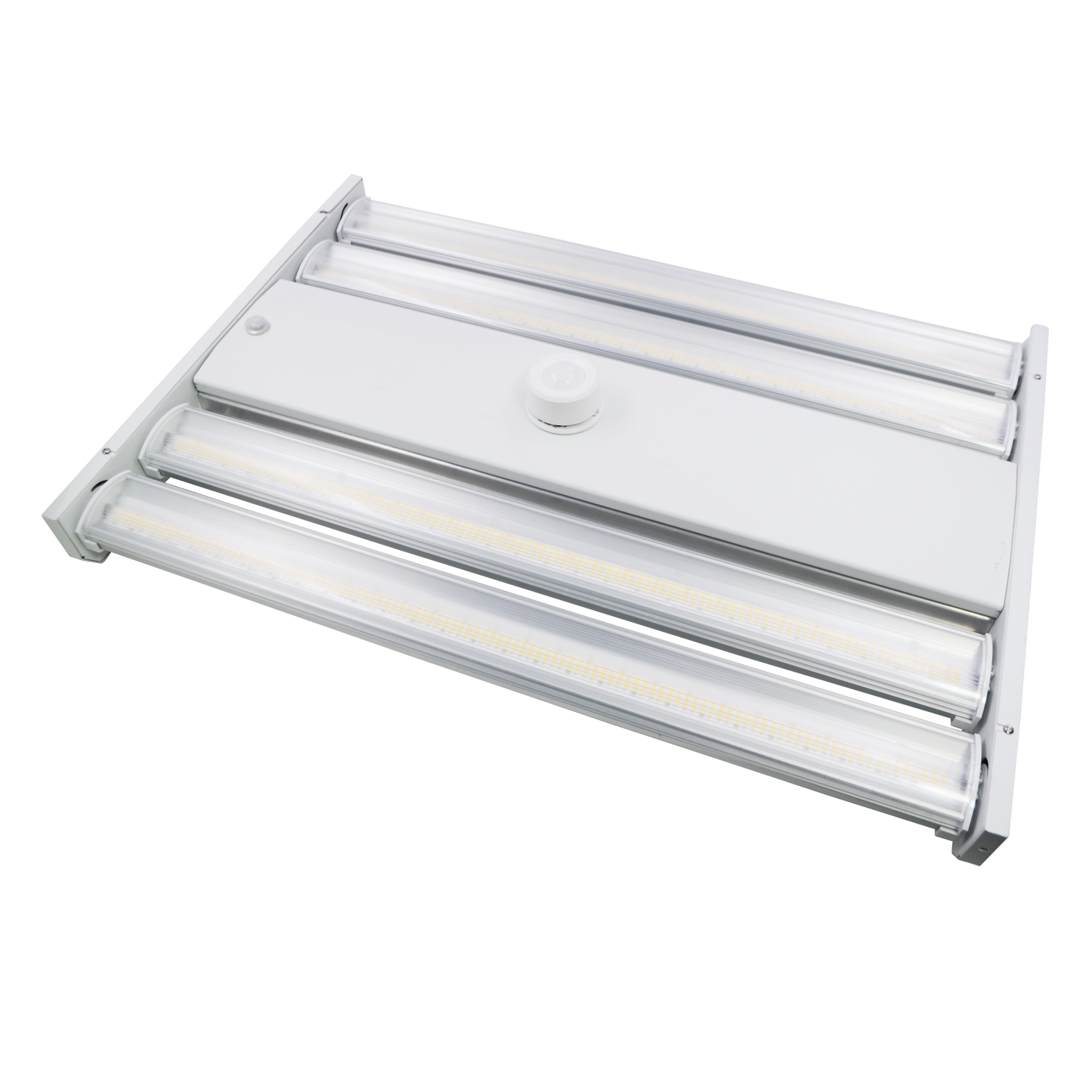

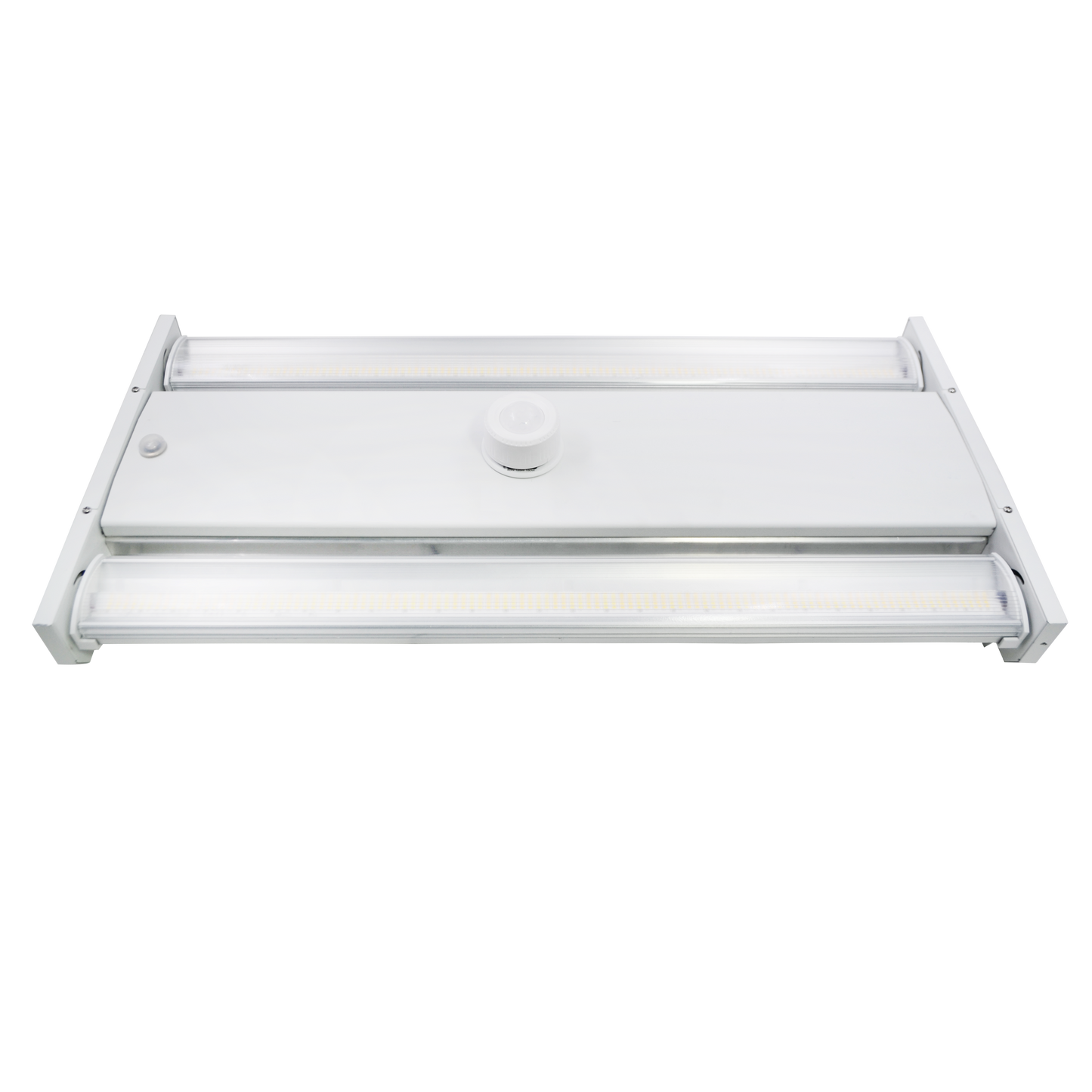

Marathon Lighting HB-202X Series is a game-changer.  Utilizing aircraft aluminum bars fitted with industrial-grade polycarbonates lens, the LED modules on this highbay are extremely heavy duty and can handle the toughest of environments.  Combined with a best-in-class lumens output with wattage and color selectable switches built in directly on the surface of the fixture, this allows contractors to easily adjust lumens and color without opening the driver compartment.  This saves valuable time and money.  Another feature is the "plug and plug" sensor option that is also on surface which allow contractors to quickly install sensors without the messy wiring connections.



View full details

Applications:

  • Warehouse, Factory, Exhibition Center, Meeting Room, Parking Lot or Garage, Supermarket, Gas Station, High Ceiling Light, Canopy Light, Industrial Site Lighting, Schools, Restaurants, wherever extra light is needed.

Key Features:

  • Universal input voltage (120-277V) or High input voltage (277-480V)
  • Comparable to a 400W/1000W metal-halide light
  • Advanced optic system
  • 26191 Lumens  and 22344 Lumens and 45385 Lumens
  • Input Power of 180 Watts and150 Watts and 290 Watts
  • 4000/4500/5000K Daylight White Color Output
  • UL/cUL Listed,DLC Premium,FCC
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V(Universal Voltage)
    277-480V (High Voltage)
  • INPUT WATTAGE 180W/125W/80W
    150W/120W/90W
    290W/240W/200W
  • LUMENS 26191 lms
    22344 lms
    45358 lms
  • EFFICACY 153LM/W
  • RATED LIFE 50,000hrs
  • OPERATING TEMPERATURE -40 °F to 122°F
  • CERTIFICATION UL/cUL, Damp Locations, FCC
  • EQUAL TO Metal Halide 400W
    Metal Halide 1000W
  • CRI 80
  • AVAILABLE CCT 4000K/4500K/5000K
  • IP RATING IP54
  • COLOR White
  • DIMENSION 25.8"x11.9"x5.8"
    25.8"x11.9"x5.8"
    25.8"x17.8"x5.8"
  • WEIGHT 15.9lbs
    15.9lbs
    20.5lbs
  • MODEL NUMBER ML-HB-2025-180WT-4455K
    ML-HB-2025-150WT-4455K
    ML-HB-2027-290WT-4455K

Download

  • Model No.
  • ML-HB-2025-180WT-4455K
  • ML-HB-2025-150WT-4455K
  • ML-HB-2027-290WT-4455K
  • Wattage
  • 180W/125W/80W
  • 150W/120W/90W
  • 290W/240W/200W
  • CCT
  • 4000/4500/5000K
  • 4000/4500/5000K
  • 4000/4500/5000K
  • Lumens (Max.)
  • 26191 lumens
  • 22344 lumens
  • 45385 lumens

ML-HB-2025-180WT-4455K

ML-HB-2025-150WT-4455K

ML-HB-2027-290WT-4455K
