ML-DL-F Series

ML-DL-F Series

Round Slim Panel Downlight

  • certifications
  • certifications
  • certifications

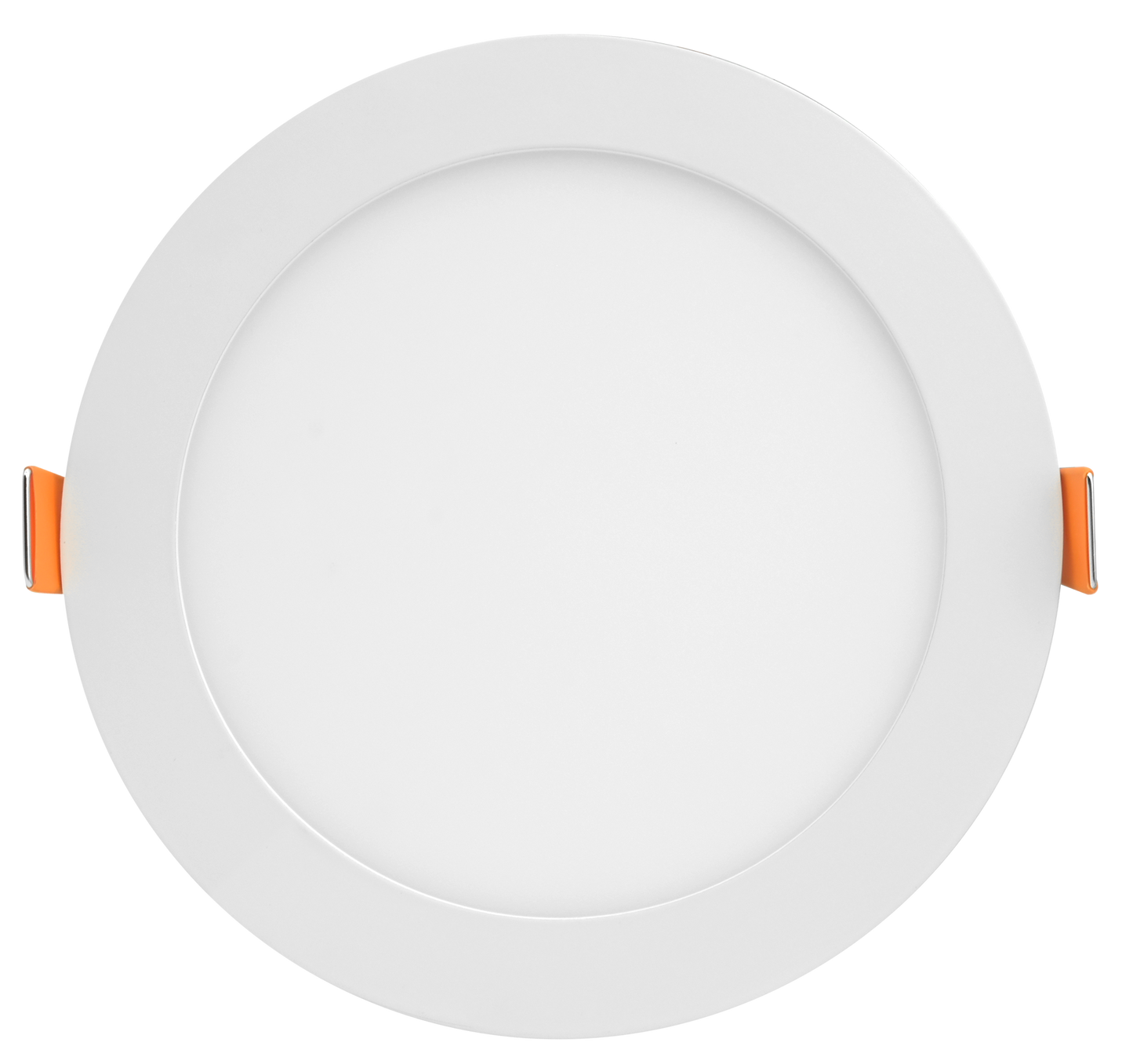

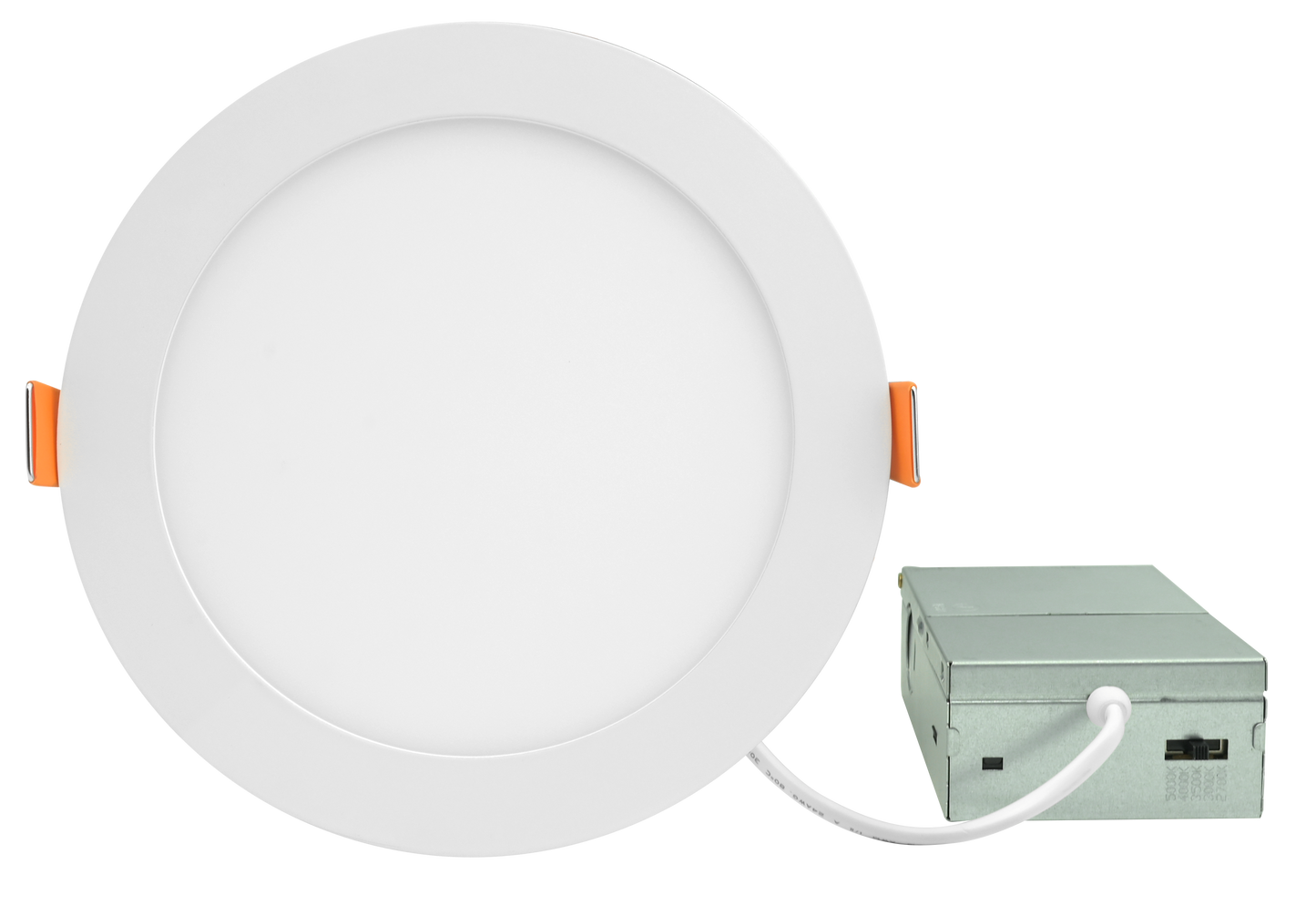

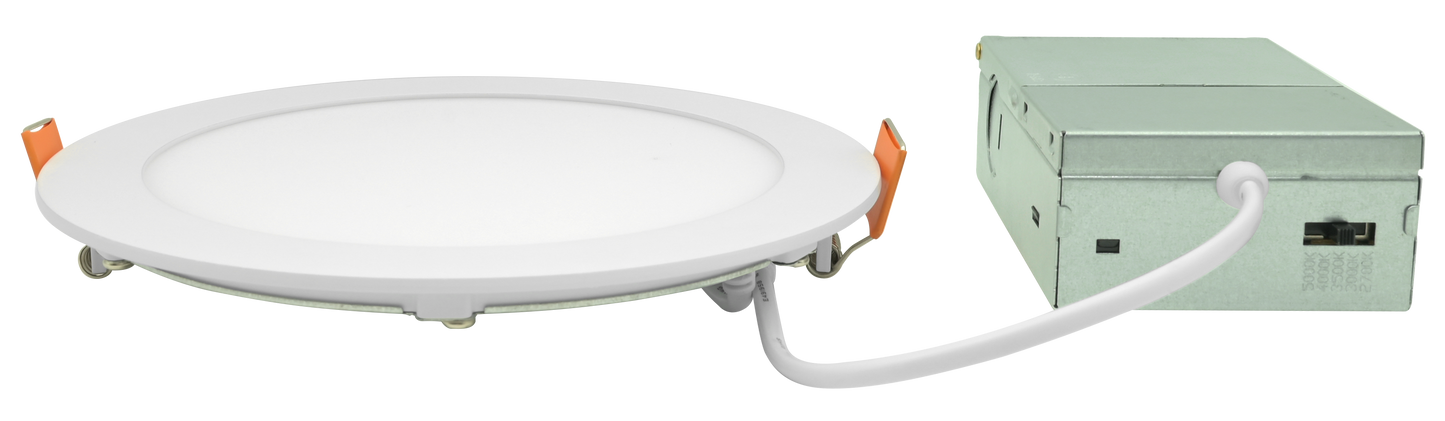

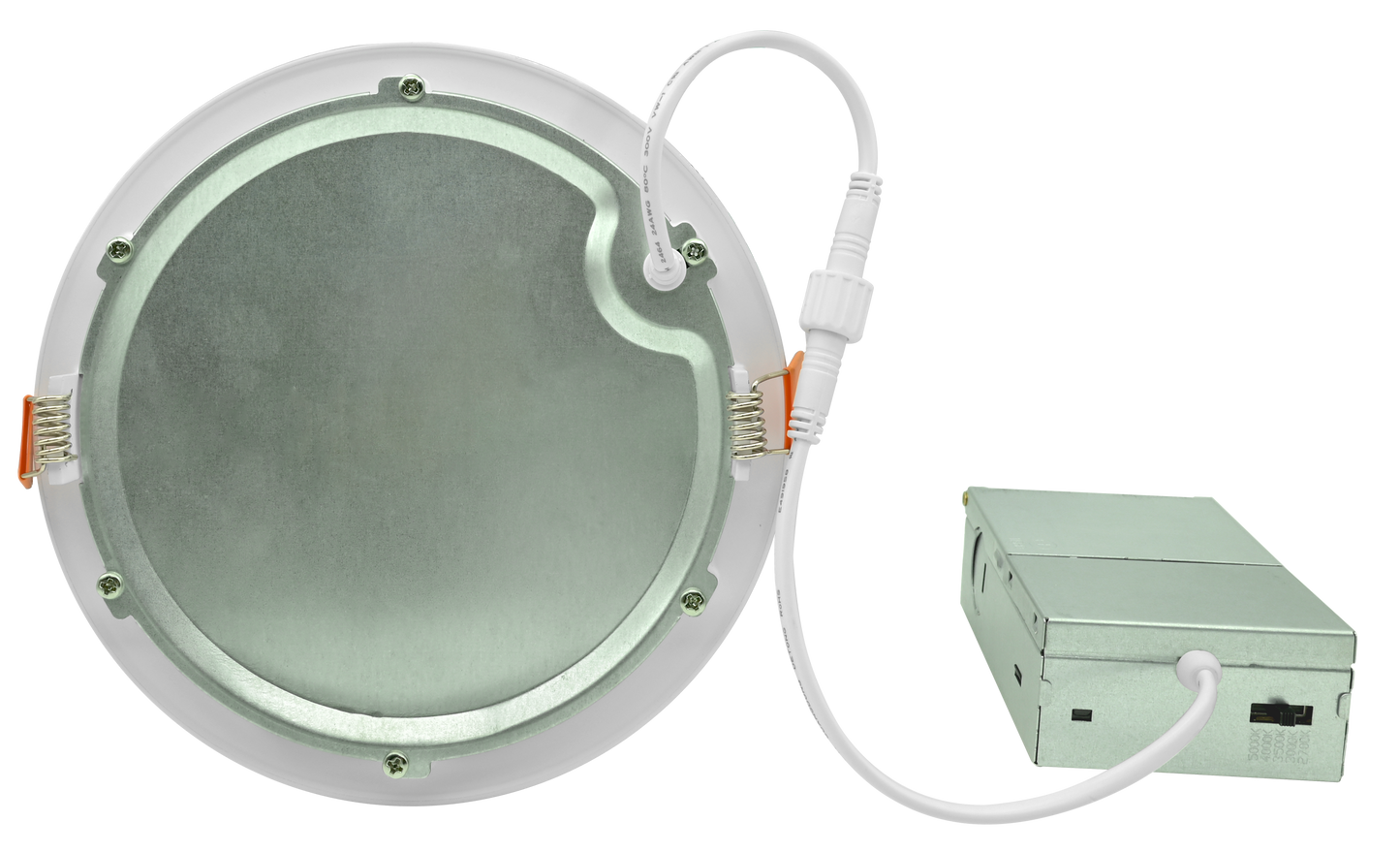

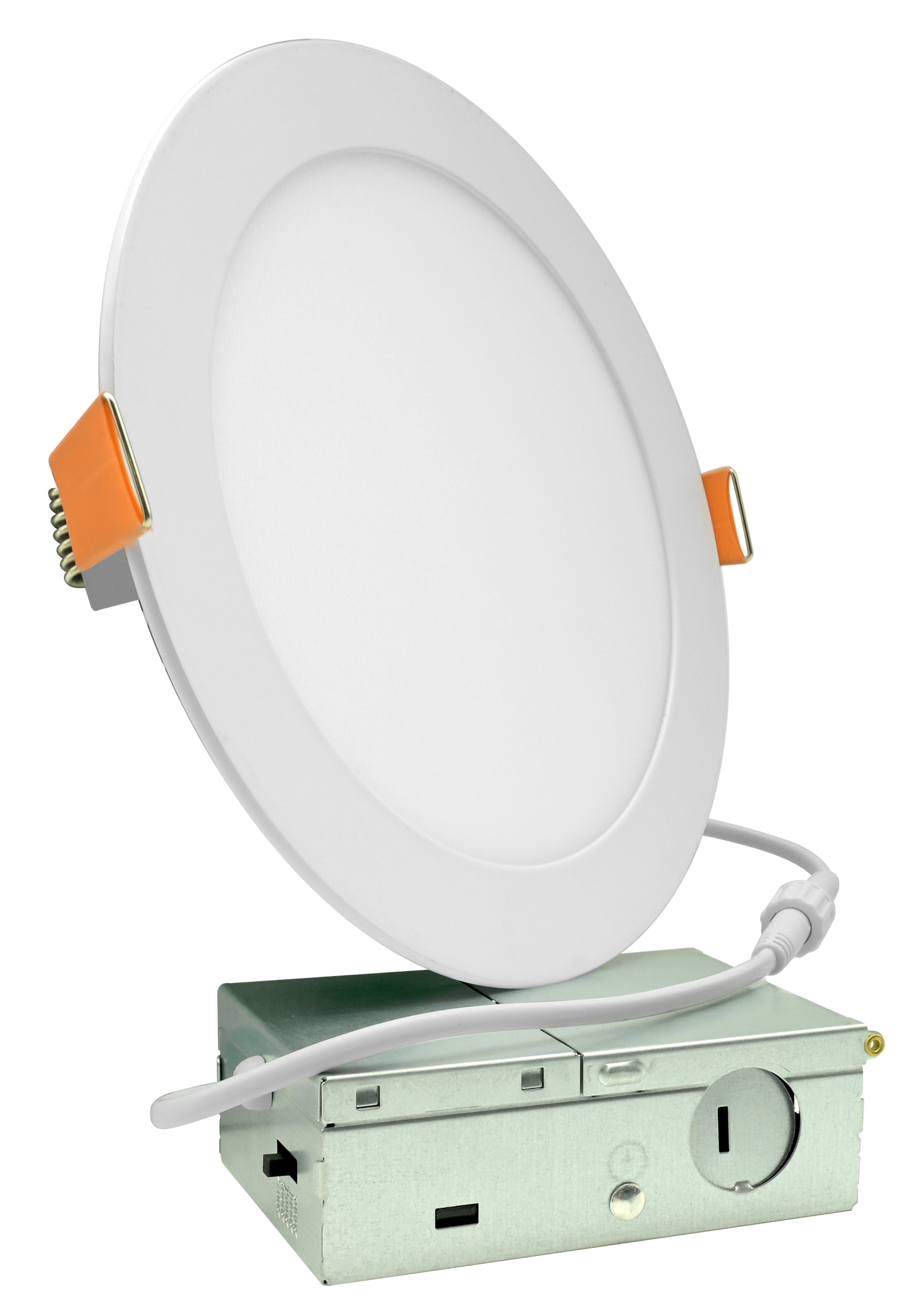

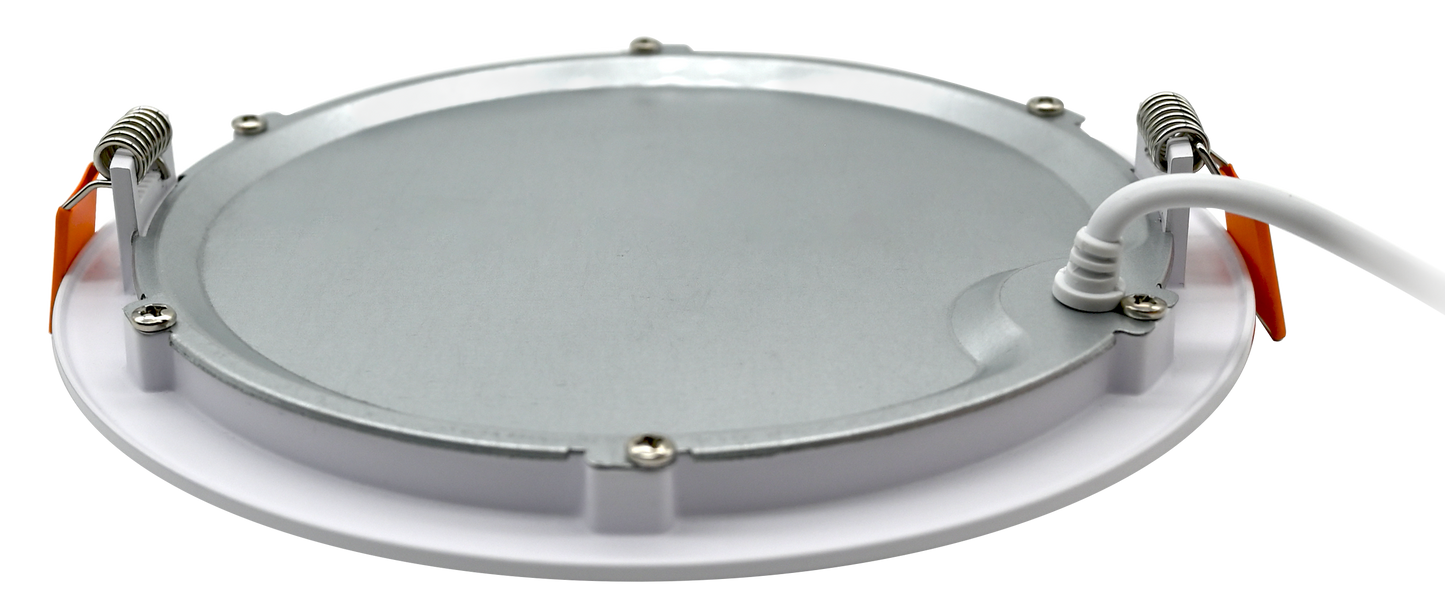

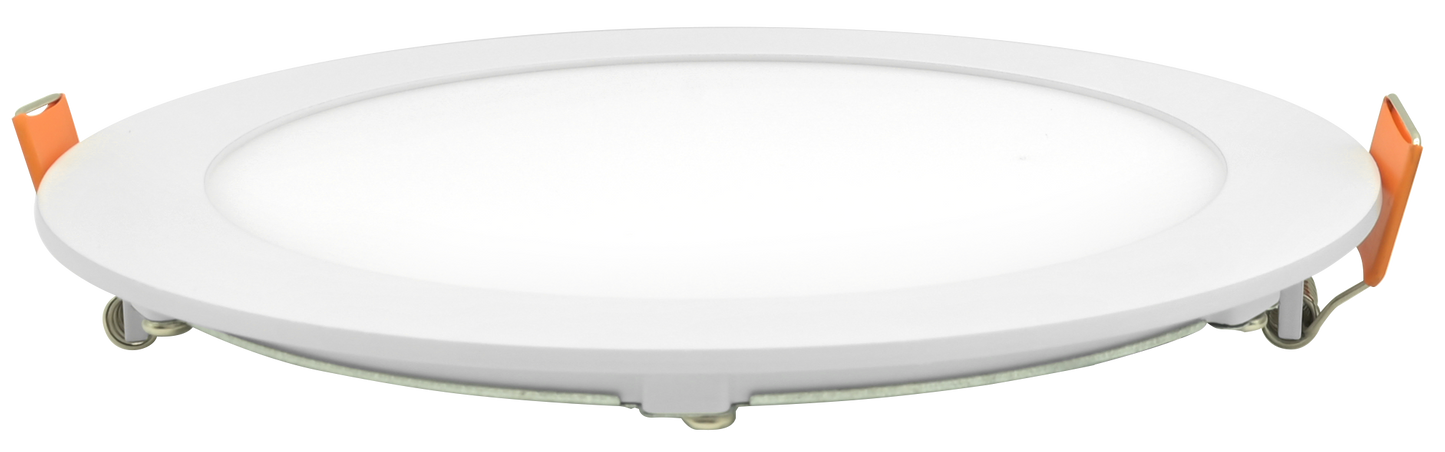

Slim profile LED surface mount is available in both round and square sizes.  Beautiful uniform light provides a glare-free lighting effect, ensuring great comfortability for homeowners.  Product is compatible with many junction boxes.   disc surface mount LED downlight in 4 inch and 6 inch is low profile.

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

  • Single input voltage (120V)
  • Comparable to a 75W incandescent bulb
  • Advanced industrial grade polycarbonate lens
  • 602 lumens in 4 inch
  • 998 lumens in 6 inch
  • Steel housing
  • 9 Watts in 4 inch downlight
  • 12 Watts in 6 inch downlight
  • Multi CCT (5 CCT) Color Output (2700K/3000K/3500K/4000K/5000K)
  • ETL Listed Wet Location
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120V
  • INPUT WATTAGE 4" 9W
    6" 12W
  • LUMENS 4" 602
    6" 998 lms
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION ETL
  • EQUAL TO 75W Incandescent
  • CRI >90
  • AVAILABLE CCT 2700K/3000K/3500K/4000K/5000K
  • DIMENSION
  • WEIGHT 2.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-DL-4F-9WT-5CCT-120V
  • MODEL NUMBER ML-DL-6F-12WT-5CCT-120V

Download

  • Model No.
  • ML-DL-4F-9WT-5CCT-120
  • ML-DL-6F-12WT-5CCT-120
  • Wattage
  • 9W
  • 12W
  • CCT
  • 5 CCT (2.7K/3K/3.5K/4K/5K)
  • 5 CCT (2.7K/3K/3.5K/4K/5K)
  • Lumens
  • 644 lms
  • 998 lms

ML-DL Flat Round Series
