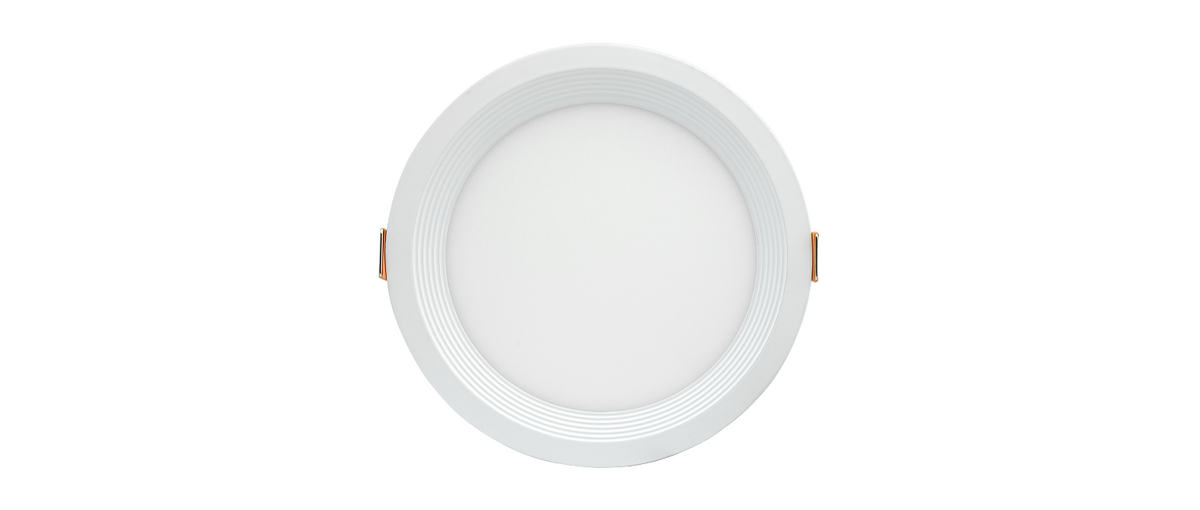

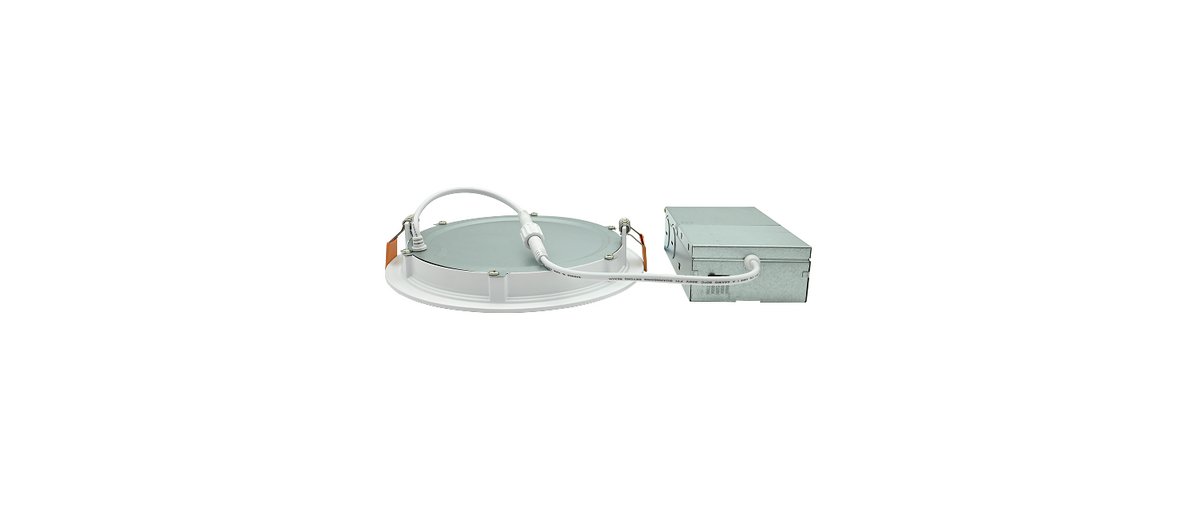

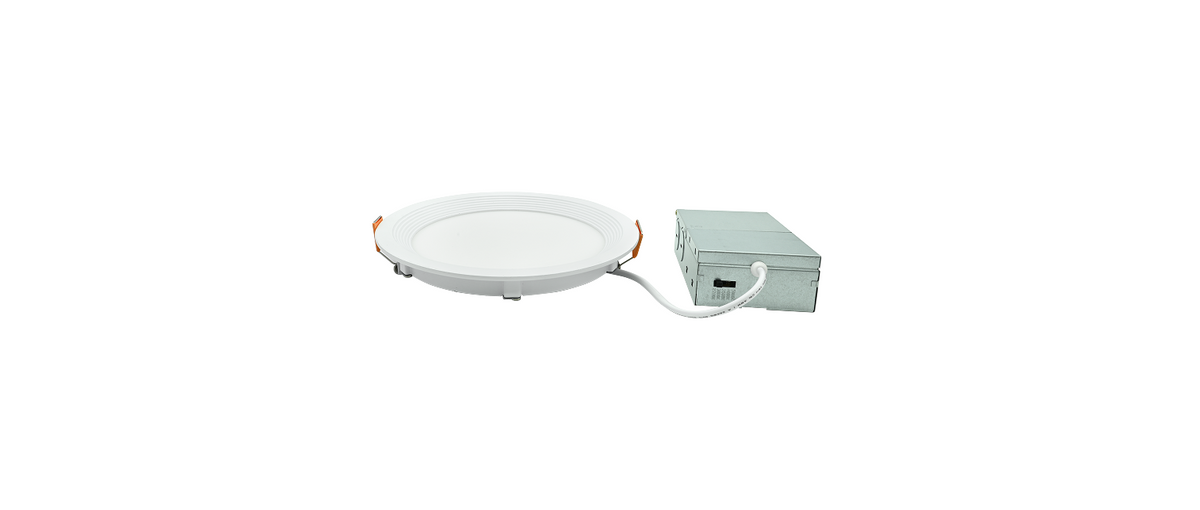

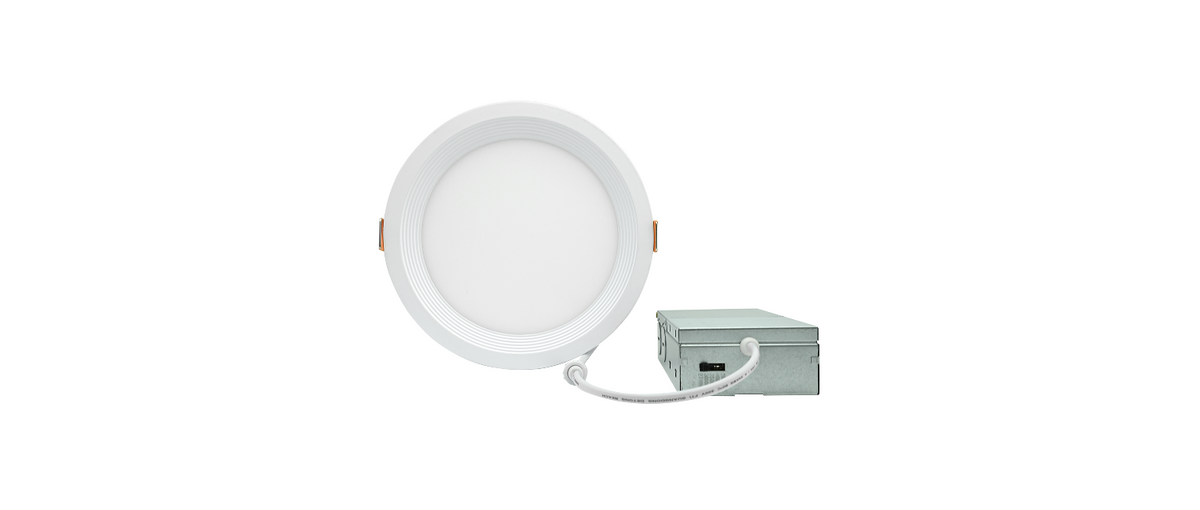

ML-DL-F Series w/ Baffle

ML-DL-F Series w/ Baffle

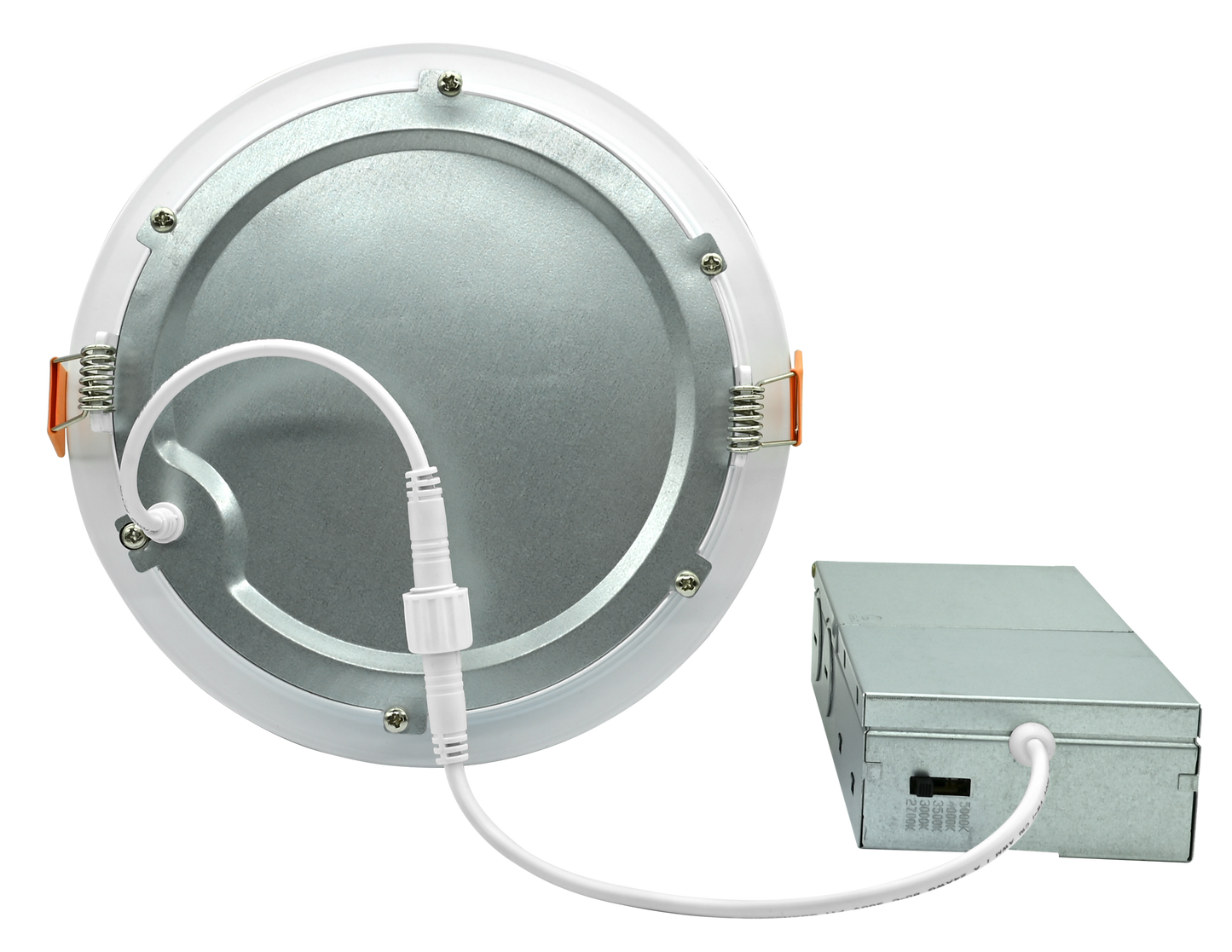

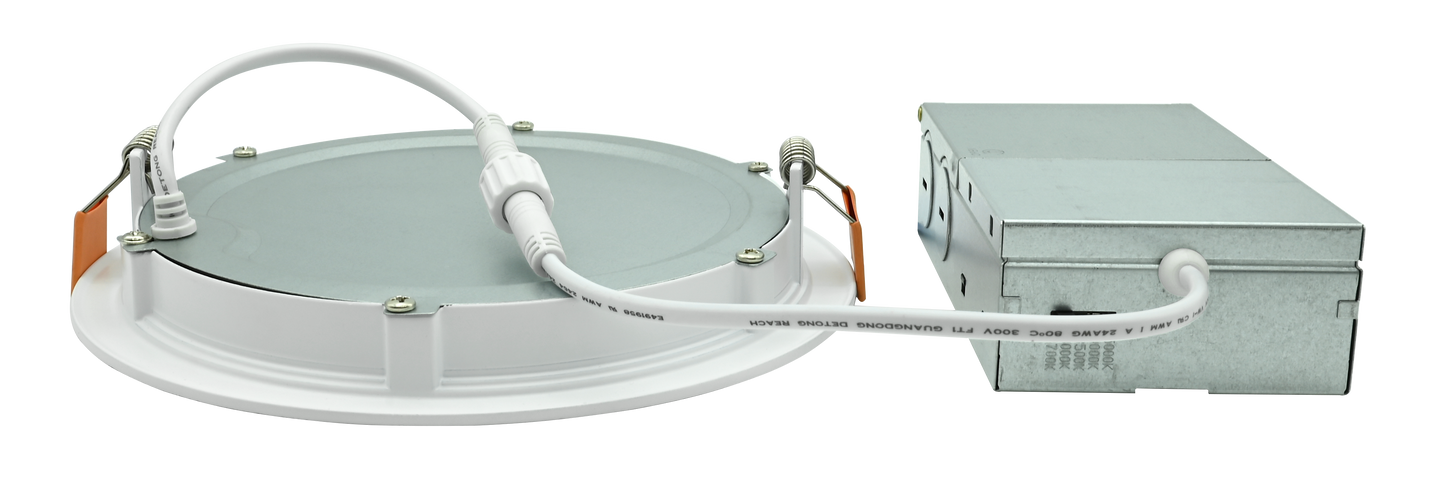

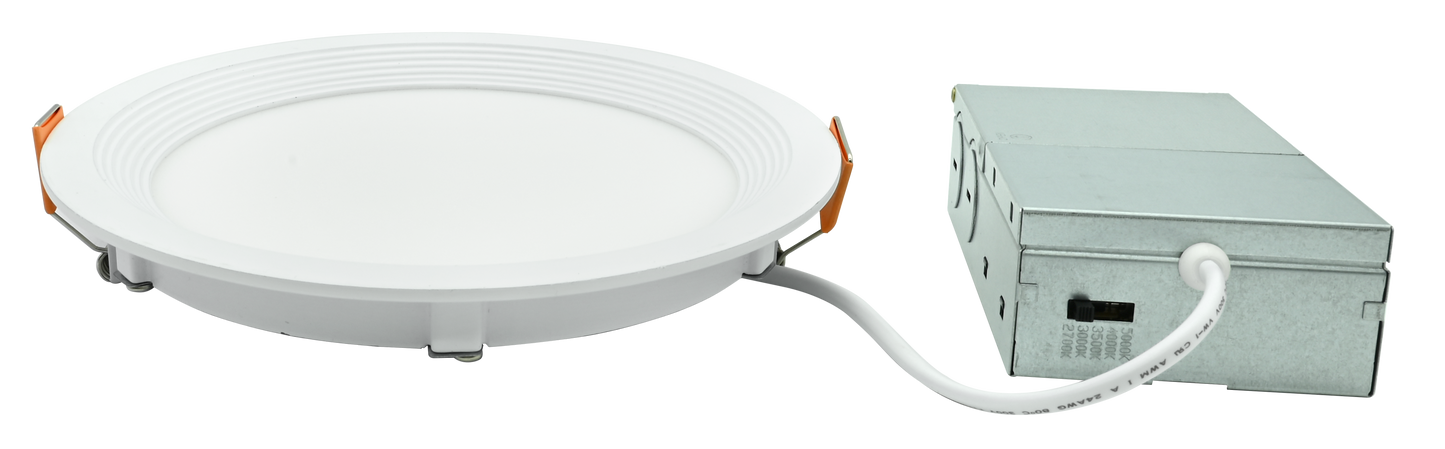

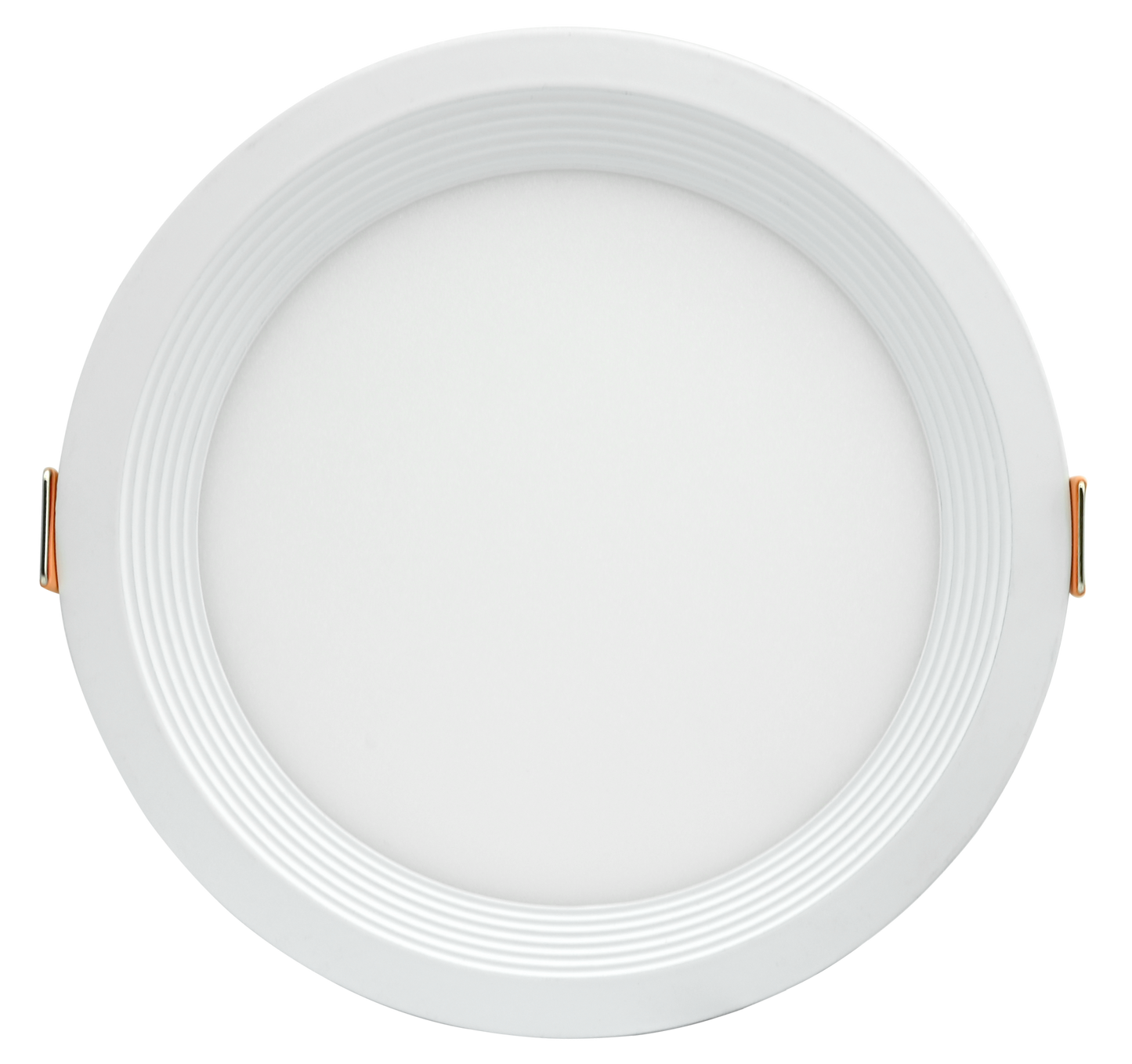

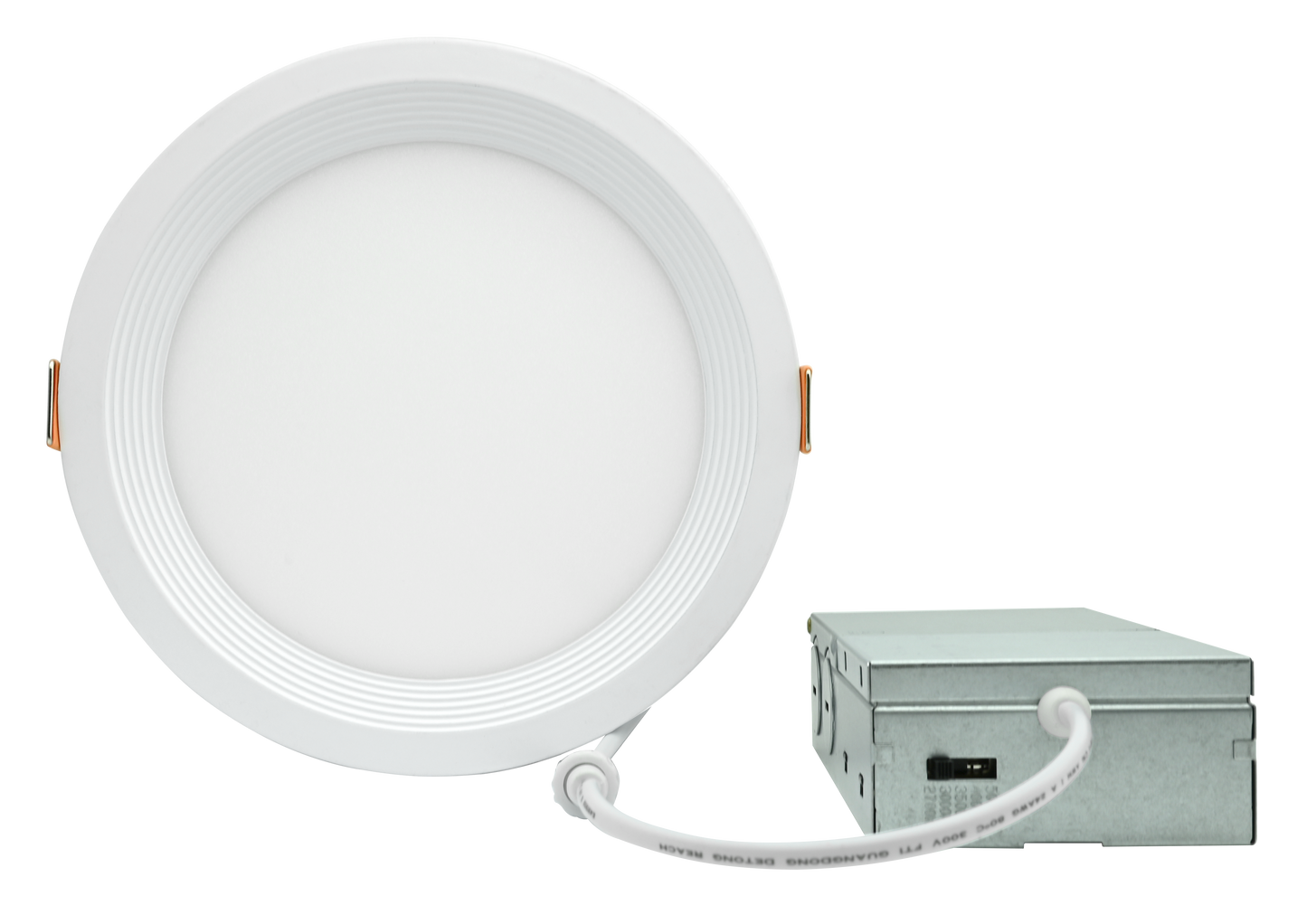

Round Slim Panel Downlight with Baffle Trim

  • certifications
  • certifications
  • certifications

Baffle trim design surface mount provides beautiful uniform light provides a glare-free lighting effect, ensuring great comfortability for homeowners.  Product is compatible with many junction boxes.   Slim profile design surface mount LED downlight in 4 inch and 6 inch

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

  • Single input voltage (120V)
  • Comparable to a 75W incandescent bulb
  • Advanced industrial grade polycarbonate lens
  • 701 lumens in 4 inch
  • 1206 lumens in 6 inch
  • Architectural Baffle Design
  • Steel housing
  • 9 Watts in 4 inch downlight
  • 15 Watts in 6 inch downlight
  • Multi CCT (5 CCT) Color Output (2700K/3000K/3500K/4000K/5000K)
  • ETL Listed Wet Location
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120V
  • INPUT WATTAGE 4" 9W
    6" 15W
  • LUMENS 4" 701
    6" 1206 lms
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION ETL
  • EQUAL TO 75W Incandescent
  • CRI >90
  • AVAILABLE CCT 2700K/3000K/4000K/5000K
  • DIMENSION 4.92“x4.92"x1.22"
    6.89"x6.89"x1.22"
  • WEIGHT 2.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-DL-4F-9WT-5CCT-120-
  • MODEL NUMBER ML-DL-6F-12WT-5CCT-120-B

Download

  • Model No.
  • ML-DL-4F-9W-5CCT-120-B
  • ML-DL-6F-15W-5CCT-120-B
  • Wattage
  • 9W
  • 15W
  • CCT
  • 5 CCT (2.7K/3K/3.5K/4K/5K)
  • 5 CCT (2.7K/3K/3.5K/4K/5K)
  • Lumens
  • 701 lms
  • 1206 lms

ML-DL Baffle Flat Series
