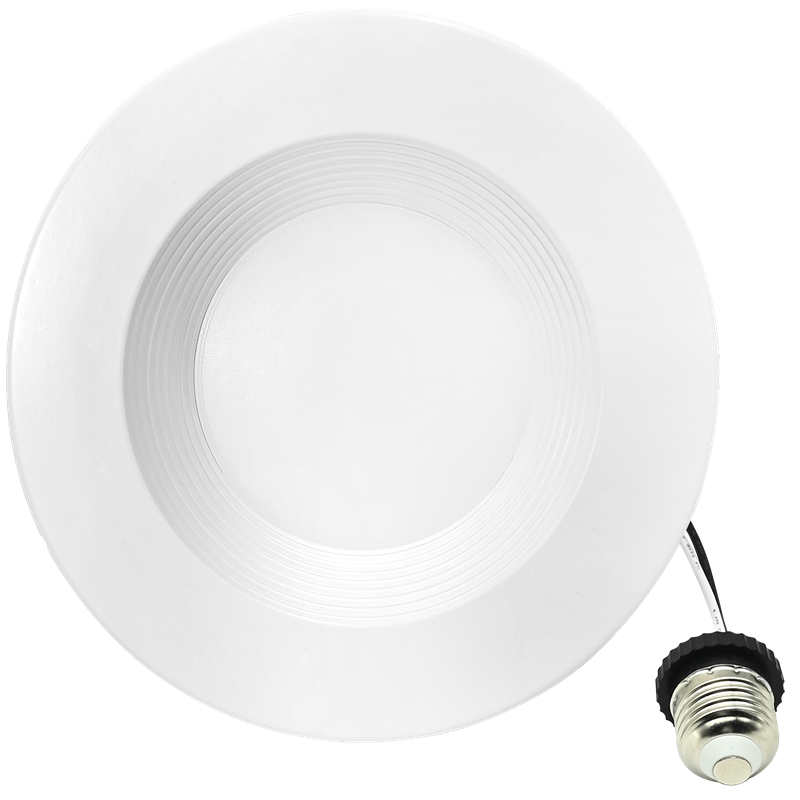

ML-DL Retrofit Series

ML-DL Retrofit Series

Retrofit Downlight

  • certifications
  • certifications
  • certifications

Elevate your space with a stylish, modern look through our low-profile LED lighting, perfectly blending timeless design with energy efficiency. This fixture is designed for easy installation and fits seamlessly into any 4", 5", or 6" housing. With three wattage options and five CCT tunable settings, it offers customizable lighting to suit any space.

Damp-location rated, it’s an ideal choice for residential homes, hotels, corridors, home décor, shopping malls, schools, and more. Available in both 4" and 6" sizes, this is the perfect solution for functional and elegant lighting.

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

  • Single input voltage (120V)
  • Comparable to a 100W incandescent bulb
  • Triac dimmable down compatible with most major brands of dimmers.
  • 827 lumens in 4 inch
  • 1289 lumens in 6 inch
  • Aluminum housing
  • 12/10/8 Watts in 4 inch downlight
  • 18/15/12 Watts in 6 inch downlight
  • Multi CCT (5 CCT) Color Output (2700K/3000K/3500K/4000K/5000K)
  • ETL Listed
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120V
  • INPUT WATTAGE 4" 12W/10W/8W
    6" 18W/15W/12W
  • LUMENS 4" 827/678/497 lms
    6" 1289/1002/890 lms
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION ETL
  • EQUAL TO 75W Incandescent
  • CRI >90
  • AVAILABLE CCT 2700K/3000K/3500K/4000K/5000K
  • DIMENSION
  • WEIGHT 2.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-DL-4R-12WT-5CCT-120
  • MODEL NUMBER ML-DL-6R-18WT-5CCT-120

Download

  • Model No.
  • ML-DL-4R-12WT-5CCT-120
  • ML-DL-6R-18WT-5CCT-120
  • Wattage
  • 12W/10W/8W
  • 18W/15W/12W
  • CCT
  • 5 CCT (2.7K/3K/3.5K/4K/5K)
  • 5 CCT (2.7K/3K/3.5K/4K/5K)
  • Lumens
  • 827/678/497 lms
  • 1289/1002/890 lms

ML-DL-4R-12WT-5CCT-120

ML-DL-6R-18WT-5CCT-120
