ML-TH-DL Series

ML-TH-DL Series

  • certifications
  • certifications
  • certifications

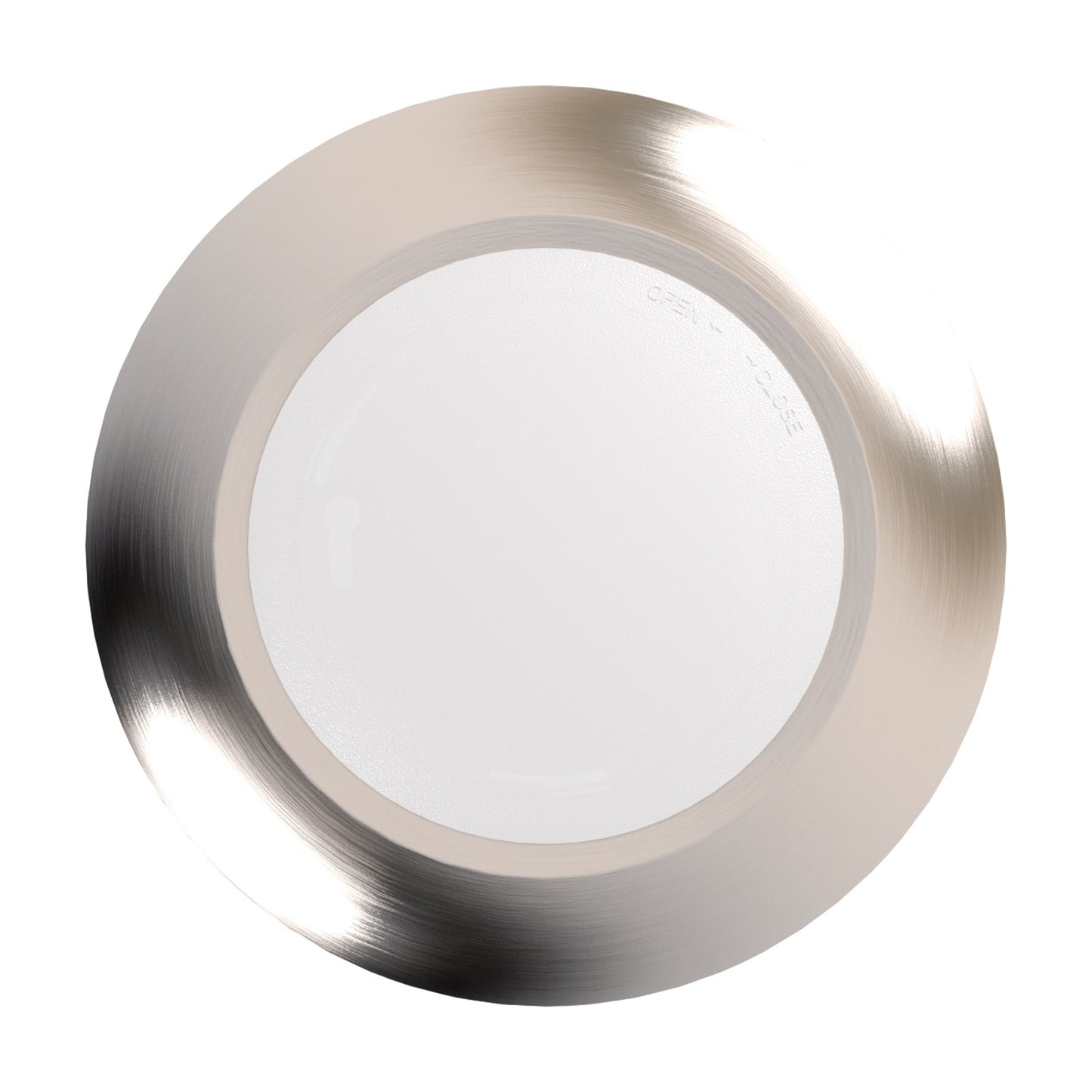

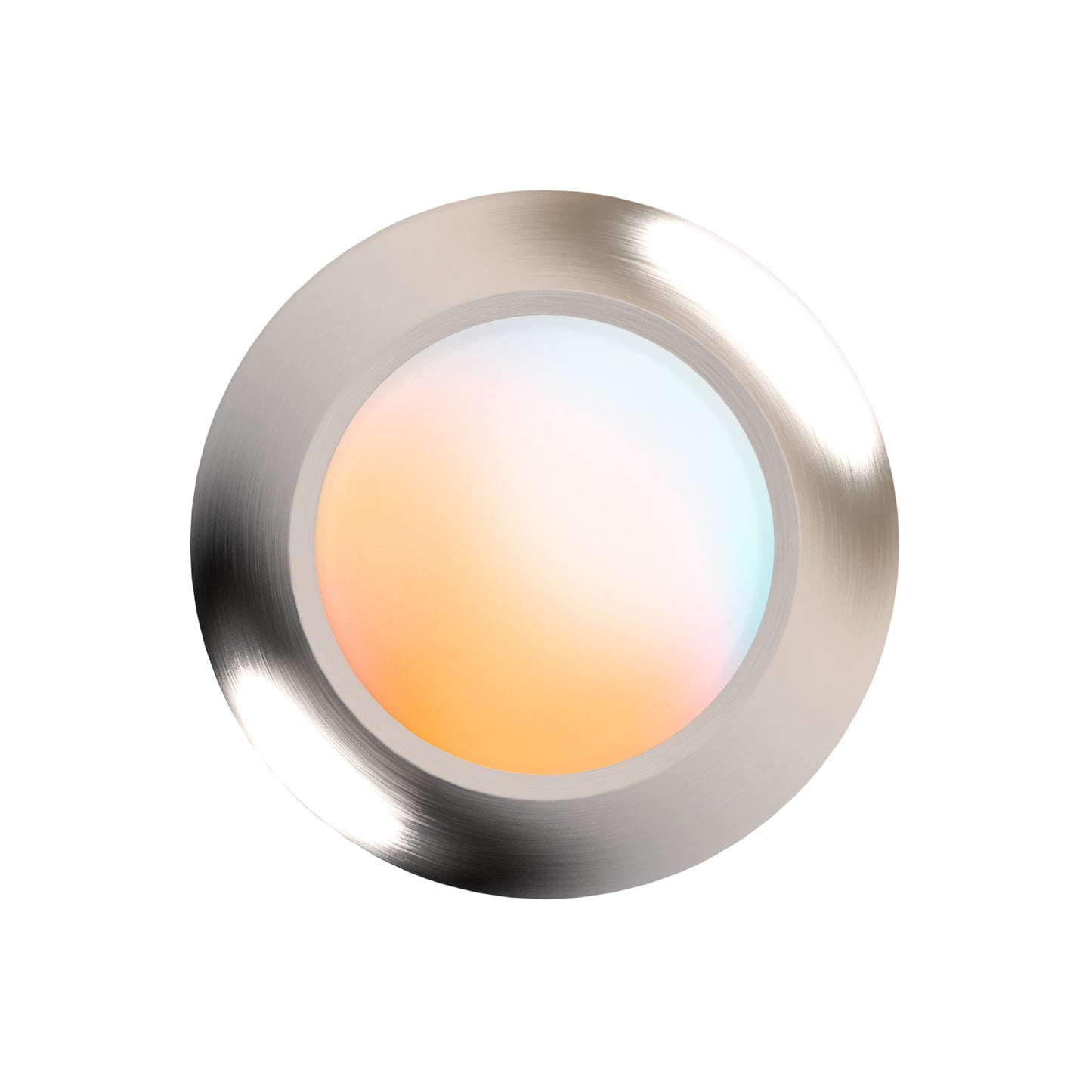

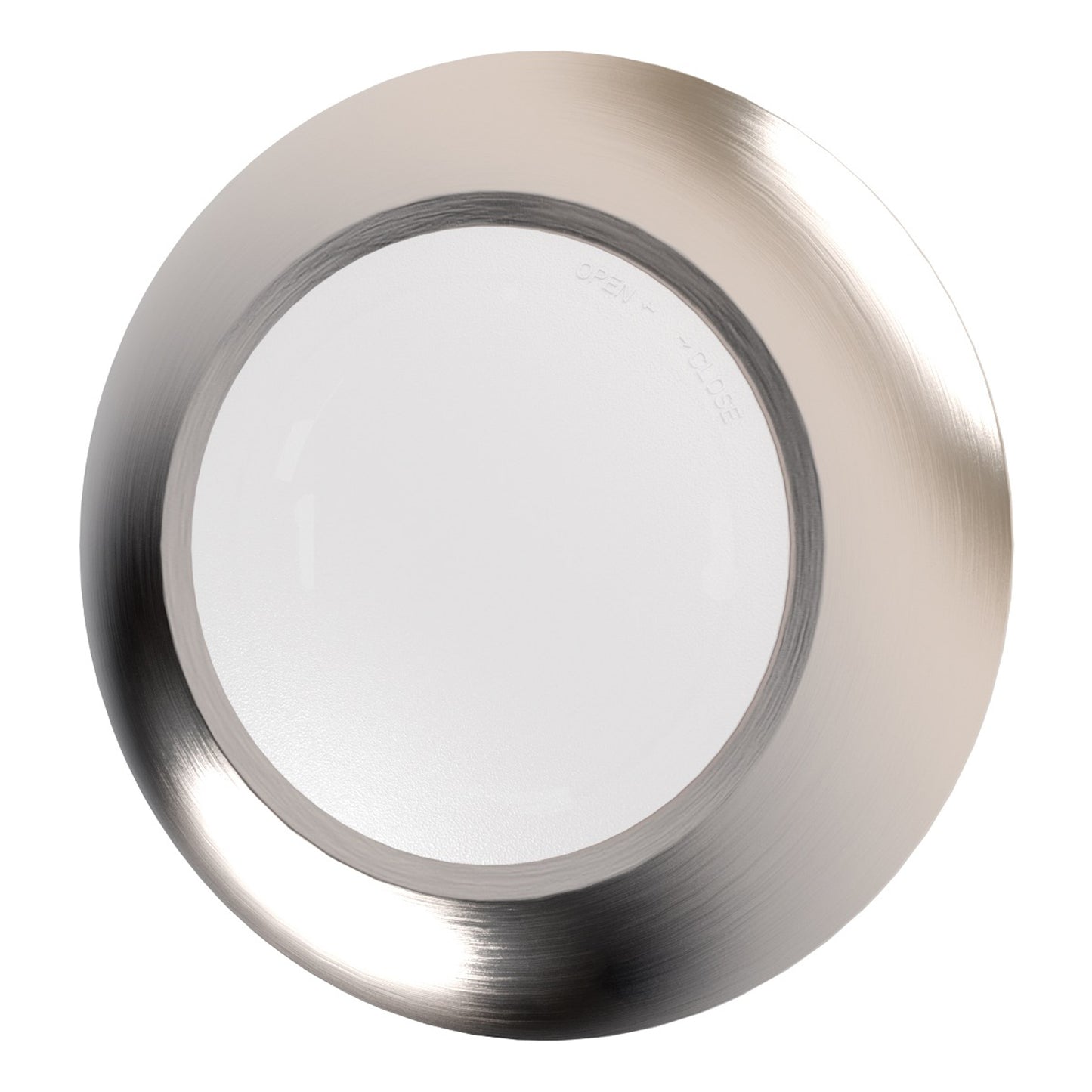

The disc surface mount LED downlight in 4 inch and 6 inch is low profile.  Driverless DOB driver onboard technology allows this fixture to install easily to most 3 inch and 4 inch junction boxes eliminating the need for recessed housing.

Comes in 4 inch and 6 inch downlight options

View full details

Applications:

  • Homes, townhomes, apartments, offices, schools

Key Features:

  • Single input voltage (120V)
  • Comparable to a 75W incandescent bulb
  • Advanced industrial grade polycarbonate lens
  • 650 lumens  in 4 inch and 950 lumens in 6 inch
  • Aluminum housing
  • Input Power of 10 Watts in 4 inch downlight and 15 Watts in 6 inch downlight
  • Single CCT or multi CCT 2700K/3000K/3500K/4000L/5000K Color Output
  • ETL Listed
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120V
  • INPUT WATTAGE 10W
    15W
  • LUMENS 750 lms
    1200 lms
  • EFFICANCY 75 LM/W
    80 LM/W
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION ETL
  • EQUAL TO 75W Incandescent
  • CRI >80
  • AVAILABLE CCT 2700K/3000K/4000K/5000K
  • DIMENSION 6.2" x 6.2" x 1.25"
    7.3" x 7.3" x 1.1"
  • WEIGHT 2.5lbs
  • PHOTOCONTROL No
  • MODEL NUMBER ML-TH-DL-4
    ML-TH-DL-6

Download

  • Model No.
  • ML-TH-DL-4
  • ML-TH-DL-6
  • Wattage
  • 10W
  • 15W
  • CCT
  • Single CCT or multi CCT (2700K/3000K/3500K/4000L/5000K)
  • Single CCT or multi CCT (2700K/3000K/3500K/4000L/5000K)
  • Lumens
  • 750 ms
  • 1200 lms

ML-TH-DL-4

ML-TH-DL-6
